Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Electric Power Diesel Generator 100kva Rental

Electric Power Diesel Generator 100kva Rental

Electric Power Diesel Generator 100kva Rental thumbnail-1
Electric Power Diesel Generator 100kva Rental photo-1
US$ 2,599 - 299,585 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
genor power
Model Number:
GNRC
Contact Supplier Request Quote Chat Now
Shenzhen Genor Power Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name genor power
Model Number GNRC
Output Type AC Three Phase
Speed 1500rpm or 1800rpm
Frequency 50Hz or 60Hz
Rated Power 20KVA to 2000KVA
Rated Voltage 220V/380V, 230V/400V, 240V/415V
Rated Current 29A to 2880A

Electric power diesel generator 100kva rental



Genset Model Prime Power Standby Power Engine Fuel Consumption Cylinder No. Displacement Bore X Stroke
KW KVA KW KVA (g/kwh)  (L ) (mm)
GNRC30 20 25 24 30 4B3.9-G ≤229 4 3.9 102*120
GNRC35 24 30 28 35 4BT3.9-G ≤214 4 3.9 102*120
GNRC56 40 50 45 56 4BTA3.9-G ≤215 4 3.92 102*120
GNRC63 45 56 50 63 4BTA3.9-G ≤215 4 3.92 102*120
GNRC70 50 63 56 70 6BT5.9G1 ≤215 6 5.88 102*120
GNRC106 78 98 85 106 6BT5.9G ≤215 6 5.88 102*120
GNRC125 90 113 100 125 6BT5.9G2 ≤215 6 5.88 102*120
GNRC150 104 130 120 150 6BT5.9G2 ≤215 6 5.88 102*120
GNRC165 120 150 132 165 6CTA8.3-G2 ≤210 6 8.3 114*135
GNRC200 140 175 160 200 6CTA8.3-G2 ≤210 6 8.3 114*135
GNRC225 160 200 180 225 6CTAA8.3-G2 ≤210 6 8.3 114*135
GNRC275 200 250 220 275 6LTAA8.9-G2 ≤210 6 8.3 114*135
GNRC313 220 275 250 313 NTA855-G1A ≤206 6 14 140*152
GNRC350 250 313 275 350 NTA855-G2 ≤207 6 14 140*152
GNRC400 280 350 310 400 NTA855-G4 ≤208 6 14 140*152
GNRC413 300 375 330 413 NTAA855-G7 ≤206 6 14 140*152
GNRC450 320 400 360 450 NTAA855-G7A ≤206 6 14 140*152
GNRC500 360 450 400 500 KTA19-G3 ≤203 6 18.9 159*159
GNRC550 400 500 440 550 KTA19-G4 ≤203 6 18.9 159*159
GNRC605 440 550 484 605 KTAA19-G6 ≤204 6 18.9 159*159
GNRC625 450 563 500 625 KTAA19-G7 ≤204 6 18.9 159*159
GNRC700 500 625 560 700 KTA38-G ≤206 12 37.8 159*159
GNRC712 520 650 570 712 QSK19-G3 ≤206 6 19 159*159
GNRC800 580 720 640 800 KTA38-GA ≤209 12 37.8 159*159
GNRC825 600 750 660 825 KTA38-G2 ≤210 12 37.8 159*159
GNRC888 640 800 710 888 KTA38-G2B ≤210 12 37.8 159*159
GNRC975 720 900 780 975 KTA38-G2A ≤210 12 37.8 159*159
GNRC1075 800 1000 860 1075 KTA38-G5 ≤202 12 37.8 159*159



 1,Cummins Series Engine



 Cummins Inc., a global power leader, is a corporation of complementary business units that design, manufacture, distribute and service engines and related technologies, including fuel systems, controls, air handling, filtration, emission solutions and electrical power generation systems. Headquartered in Columbus, Indiana (USA), Cummins serves customers in approximately 190 countries and territories through a network of more than 500 Company-owned and independent distributor locations and approximately 5,200 dealer locations.



2,Alternator



 1)Optional Brand: Engga, Stamford, Marathon,leroy somer …

 2)The standard generator set matches with Engga brand alternator, and customer also can choose other brands.

 3)Standard AVR, AC three phase, 12 reconnect copper leads, single bearing or double bearing, self-exciting system and permanent magnet generator.
4)IP21-23 protection grade, insulation system is H class, and stators are wound to 2/3 pitch.
5)Manufacture standards: GB755, BS5000,VDE0530,NEMAMG1-22,IEC34,and ASB59



3,Digital Control Panel



 Controller Brand: Smartgen

 Control Panel: English interface,LED screen and touch buttons.

 Main Functions:

 1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.

 2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.

 3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.

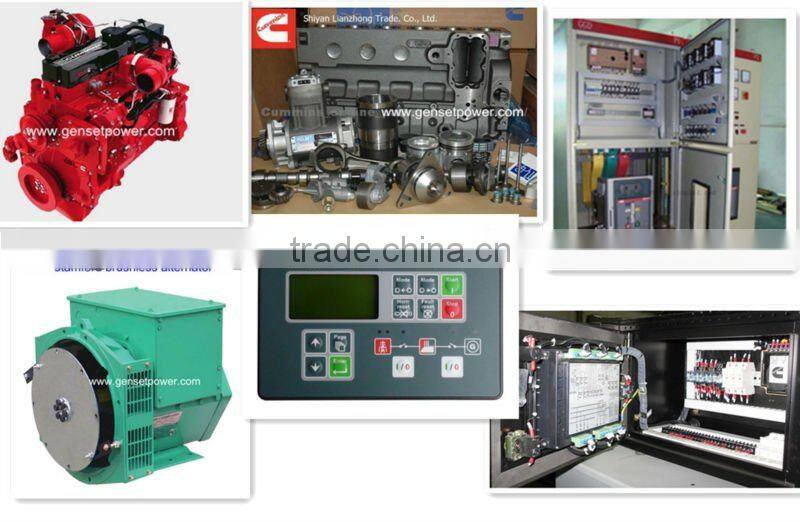

4,Optional Diesel Genset Accessories





Engine

Heater

Battery Charger



Fuel System

Daily Fuel Tank

Base Fuel Tank



Control System

Auto Control Panel

Remote Control Panel

Auto Transfer Switch (ATS) Control Panel

Alternator

Single phase, three phase

Brushless, carbon brush



Type

Weatherproof Type

Soundproof Type

Trailer type

Spare Parts

Oil filter, air filter, tank pad, Triangle Belt, tools and Engine Parts Drawing List



 5.Warranty policy



 1 year or 1000 hours

We make the promise that we offer life-time and free technological support and problem solution

Genor Power will also provide spare parts and technology for free in warranty, which for troubles caused by the shortness and defect of design and manufacture of generator.

Even some failures happen because of failure operation or after applicable expiration date, we also try our best to offer service.



generator



Electric power diesel generator 100kva rental





Electric power diesel generator 100kva rental

 Electric power diesel generator 100kva rental



Electric power diesel generator 100kva rentalElectric power diesel generator 100kva rental

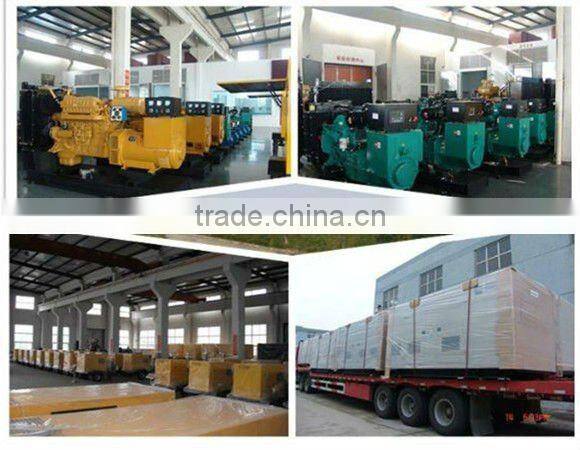

Delivery of  cummins generators
Electric power diesel generator 100kva rental
