OEM Manufacturer! Electro 175kw Diesel Generator Set
GENERATOR SET | |
Genset model | GNRC175 |
Prime power (KW/KVA) | 175/219 |
Frequency & voltage | 50HZ, 400V |
No. of Phase | 3 |
Genset type | Soundproof/silent type |
Reference Dimension & Weight (W*H, mm)/KGS | 2400x850x1340; 1593kgs |
DIESEL ENGINE | |
Engine brand & Model | CUMMINS, 6LTAA8.9-G2 |
Rated output | 175KW |
Rated Speed | 1500RPM |
Engine Type | Vertical in-line, four stroke |
No. of cylinder | 6 |
Aspiration method | Turbocharged air-air after cooled |
Governor | Electrical |
Starting method | Electric starting |
Cooling method | Forced water cooled |
Displacement | 8.9L |
Compression ratio | 14.5:1 |
Fuel consumption | 212g/kw.h |
Speed stability | ≤5% |
Total lubrication system capacity | 16 L |
Starter motor | DC24V |
Alternator | AC24V |
ALTERNATOR | |
Alternator brand & model | Stamford,Marathon ,Engga,etc |
Type | Brushless & self-excited |
No. of phase | 3 |
Voltage | 400V |
Frequency | 50HZ |
Power Factor | 0.8 |
Insulation Grade | H |
Protection Grade | IP22/23 |
Altitude | ≤1000m |
Control panel
The generator control panel is manufactured locally
Standard engine instrumentation
Voltmeter with selector switch
Ammeter with selector switch
Frequency meter
Current transformers
Instrument fuses duly wired and ferruled
Mcb of suitable rating with overload and short-circuit protection
With AMF control panel or with ATS (automatic transfer system)
With EPA certification
Accessories
1) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.
2) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
Warranty policy
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, Genor will provide the free easy-damageable spare parts of diesel engine caused by our quality of production or raw material. After expiration, Genor provides cost spare parts maintenance of gensets.
engine :
Original stamford alternator and certificate :

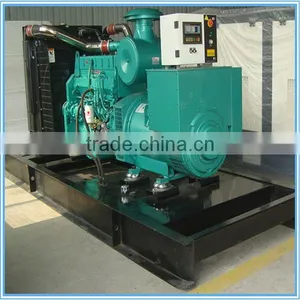

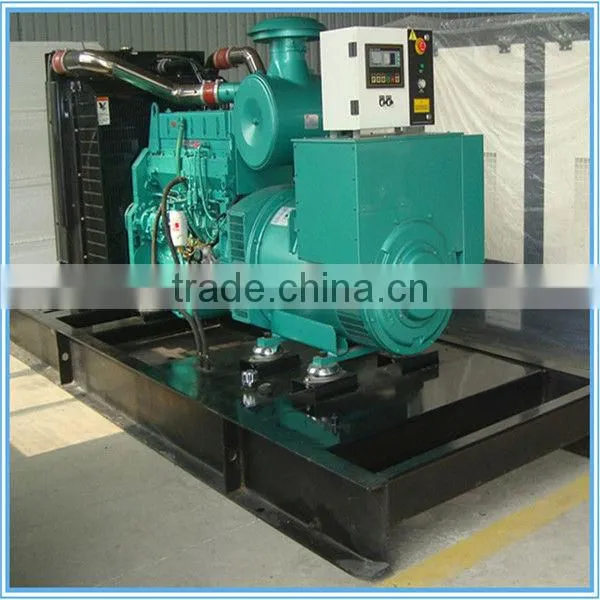

open type generator with Cummins Engine :
silent type generator
