With Cummins diesel Engine electric 180kva generator price
Description of 180kva diesel generator
open type 180kva diesel generator | |
Model | GNRC180 |
Rated power | 180kva |
Standby power | 198kva |
Output voltage(adjustable) | 240 |
Rated speed (r/min.) | 1800 |
Dimension(L*W*H) | 3350*1300*1750mm |
Net weight | 2400kg |
Ambient Temperature | 40°C |
Technical parameters of 180kva diesel generator
Power factor | COSΦ=0.8(lagging) |
Phase/wires | 3 phase 4 wires |
Start mode | Electric |
Fuel consumption | 32L/hour at 100% loaded |
Rated currency(amps) | 384A |
Protection | Low oil-pressure, High water temperature, Over-speed, Over-current. |
Technical parameters of Engine
Brand |
| Rated Power | 235kva |
Model | 6CTA8.3-G2 | Standby Power | 258kva |
Start mode | DC24V electric start | Original | Sino-U.S |
Cylinders | 6 | Cylinders Layout | Line |
Fuel | 0# light diesel | Displacement | 8.3L |
Inter-Cooling | water inter-cooling | Speed-Governing | Electric |
Steady Speed Droop | ≤1% | Overload | 110% |
Technical parameters of Alternator
Brand | Stamford | Frequency | 60 Hz |
Model | UCI274E | Prime power | 178kva |
Original | Sino-US | Rated voltage | 240V |
Protection | IP23 | Insulation | H |
Frequency fluctuation | ≤±0.5 % | Frequency regulation | ≤±0.5 %(stable) |
Voltage distortion | <4% | Voltage control | AVR |
Control system:
1 a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
2 Starting system: DC alternator is used to start engine
3 Short circuit protection: MCCB air switch
Standard Accessory
Common steel base frame, Damper, Exhaust silencer, Flexible pipe, Battery and connecting wires, Operation manual and document.
Optional Accessory
Engine coolant and oil heater, Alternator space heater, Cooling for heat exchanger, Battery charger by main supply, Fuel-water separator, Daily fuel tank, ATS & paralleling system, and Moving Trailer.
Engine :
Original stamford alternator and certificate :

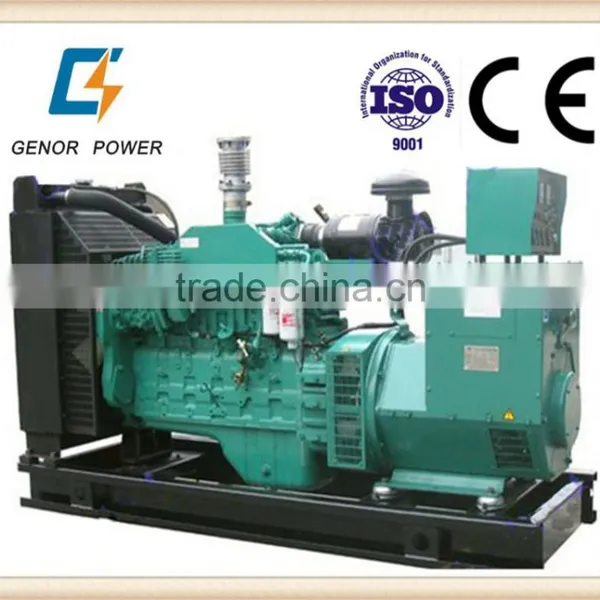

Open type Genset

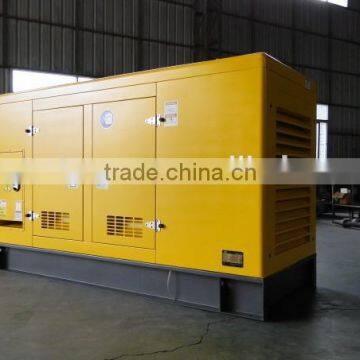

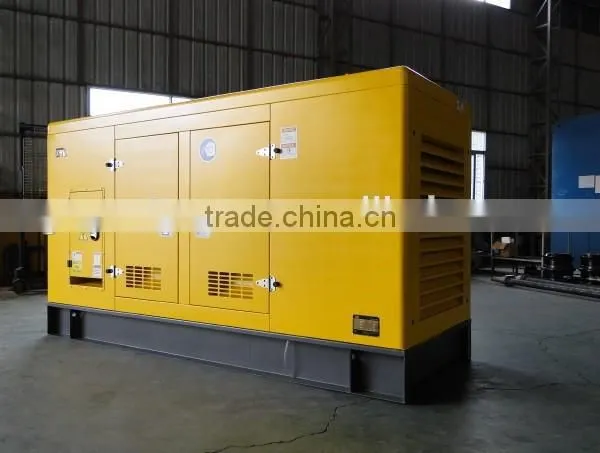

Silent Type Diesel Genset
1. what is the warranty ?
the standard warranty is 12months or 1000 running hours, subject to the earlier mature term.
but we will offer life-time and free technological support and problem solutions.
During warranty , if any problem , the spare parts supplying will be free .
2. how do we install the generator in our place ?
before delivering the generators , our engineers have installed and checked everyhing well.
when you receive the generator , you just need to fill the cooling water ,lube oil and fuel ,
then you just push the start button ,the generator will be running automatically. your local technician also know it well .
3. What is the generator maintenance period ?
you should do the maintenances according to the manual book , your local technician can do it easily .
4.What is your MOQ, payment method, delivery time?
Our MOQ is only 1 set.
Payment method usually is 30% T/T as deposit, 70% balance T/T before delivering. Or 100% L/C.
Welcome to place the order through the trade assurance of Alibaba.
Delivery period normally will be 15~20 days after receiving customers' deposit.
5. Can you offer OEM service and print our logo in your genertator ?
Yes. Please inform us formally before our production.
FOR MORE DETAILS AND QUOTES, CONTACT US!
