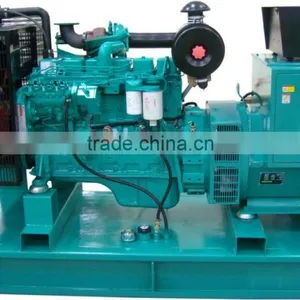

50Hz 1500rpm Heavy Duty Engine Rate Power Diesel 20kw Generator Set
The unique PT fuel system and four types of air absorbing methods (natural, pressure adding, midway cooling and double pressure adding) have been applied for the generator. It has the advantage of light weight, high power, strong torque, low oil cost and convenient maintenance ect, and has the function of self-protection. It can also be grouped to be automatic power generator sets.
The technical specification of Diesel Generator 20KW
Model | GNRC20 | Diesel Models | 4BT3.9-G |
Rated Power (KW) | 20 | Standby power(kw) | 22 |
Rated current (A) | 360 | style | Direct injection |
Rated voltage (V) | 400/230 | Number of cylinders | 4 |
Rated frequency (HZ) | 50 | Cylinder diameter /ERun(mm) | 102/120 |
Rated speed (rpm) | 1500 | Maximum output power(kw) | 24 |
Power factor | 0.8(lag) | Fuel consumption(g/kw.h) | 215 |
Steady-state voltage regulation | ±1% | Oil consumption(g/kw.h) | 1.5 |
Steady-state frequency regulation | 1.5% | Alternator model | PI144F |
Voltage, frequency fluctuation rate | 1% | Manufacturer | Stamford |
Cooling | Closed-loop water cooling | style | Y,brush,automatic cooling |
Connection mode | Steel connection | Degree of protection | IP21 |
Start-up mode | Electrical start | Insulation level | H |
weight(kg) | 850 | Excitation mode | Three Harmonic |
Dimensions(mm) | 1800×640×1080 | Mode regulator | Automatic voltage regulator |
Control Panel
1. Key switch (manual type) control panel
Shock resist is fitted between control panel and generator set. Loose sheet is also fitted. The equipments of control panel are Meters with Voltmeter,Ammeter,Frequency list,Water thermometer,Oil pressure gauge,Hour meter.
2. Control parts
Start/stop key switch, start button, emergency stop button, voltage regulation
resistance, speed regulation resistance. Voltage phase switch ,Electric current phase selecting switch.
3. Protection setting for engine
For emergency shut down, overfeed, high water temperature, low oil pressure. ATS switch is optional components when some accidents appear, The digital Protector can shut down immediately, giving the battery voltage alarm and DC electrical source alarm. European extremity, steady wiring, and it can easily dismantle and install.
The above generating set fitted with a base fuel tank for more than 8 hours using
Engine
Original Stamford Alternator
Open Type Genset with Cummins engine:
Silent Type Genset:
