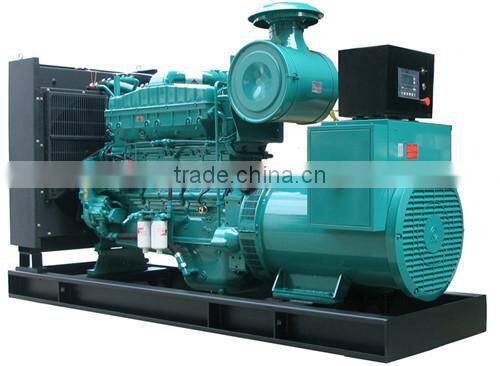

220 Volt With Cummins Engine Wate Cooled 500kw Diesel Generator

220 Volt With Cummins Engine Wate Cooled 500kw diesel generator

Specifications:

 1) Output power: 500kw

 2) Engine model: 4BTA3.9-G, 6BT5.9-G, 6BTA5.9-G, 6BTAA5.9-G, 6CTAA8.3-G, NTA855-G, KTA19-G,    KTAA19-G, KT38-G, KTA38-G, KTA50-G

 3) Alternator: Stamford, Marathon series Stamford copy

 4) Water-cooled

 5) 8hrs operation base tank

 6) Key start / auto start

 7) Sound-proof / weather-proof canopy is optional

 8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wiresalternating current output

 9) Frequency: <3%

10) Frequency at stable state: <0.5%

11) Frequency deviation at instantaneous state: ≤+10%

12) Frequency return time: ≤3s

13) Voltage deviation at stable state: ≤±1%

14) Voltage deviation at instantaneous state: ≤+20%15) Voltage return time: ≤4s16) Voltage modulation: ≤0.3%

1) Standard configuration of 500kw engine generator:

a) Engine: Cummins diesel engineb) Engine type: water-cooled, in line four-stoke, Humit cylinder liner,direct injectionc) Alternator: Marathon brushless alternator

2) Control system of 500kw engine generator:

a) Automatic alarm system: the unit has the acousto-optics alarmsystem and arrestor for any situation as the start defeat, the wateris over temperature, the oil pulls down, over speed, over load andover currentb) Operation display

i) Unit voltage, tri-phase load current and frequency display

ii) Water temperature, oil pressure display

iii) Fuel level, fuel temperature display

iv) Audible and visual alarm lamps and buzzers

19) Starting system: DC alternator is used to start engine

20) Short circuit protection: MCCB air switch

21) Cooling system: combined cooling water tank fitted to meet therequirement of radiation at ambient temperature 40°C

22) Filter system: oil, fuel and air filter

23) Accessories: exhaust elbow, bellow, muffler

3) Supply standard collocation:

a) Diesel engine with all accessories, 3 filter, electric systems

b) Alternator

c) Steel structure

d) Fan and water tank cooling system

e) Flange connector

f) 12 / 24V starting motor and charge engine

g) Air cleaner, fuel cleaner, oil cleaner

h) On-board control panel

i) MCCB air conservation switch

j) 12 / 24V starting accumulator and Battery line

k) Set shock absorber

l) High-efficient silencer

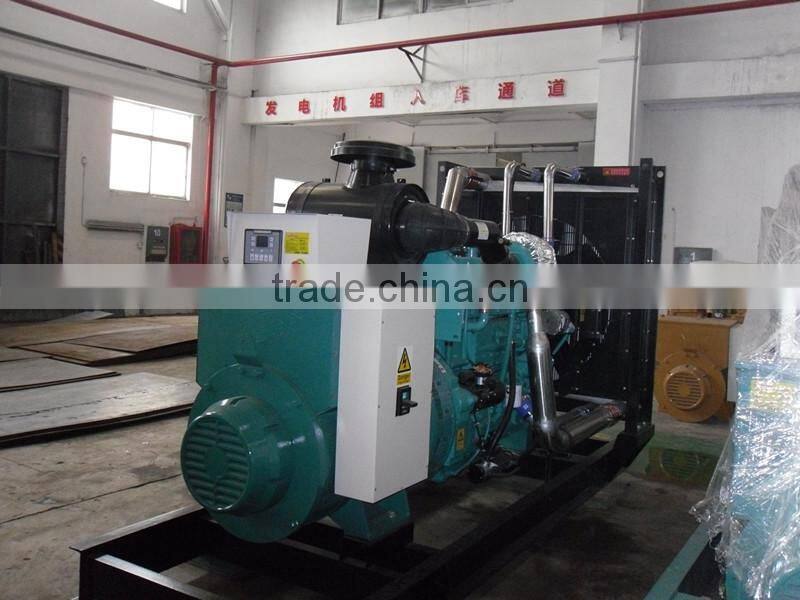

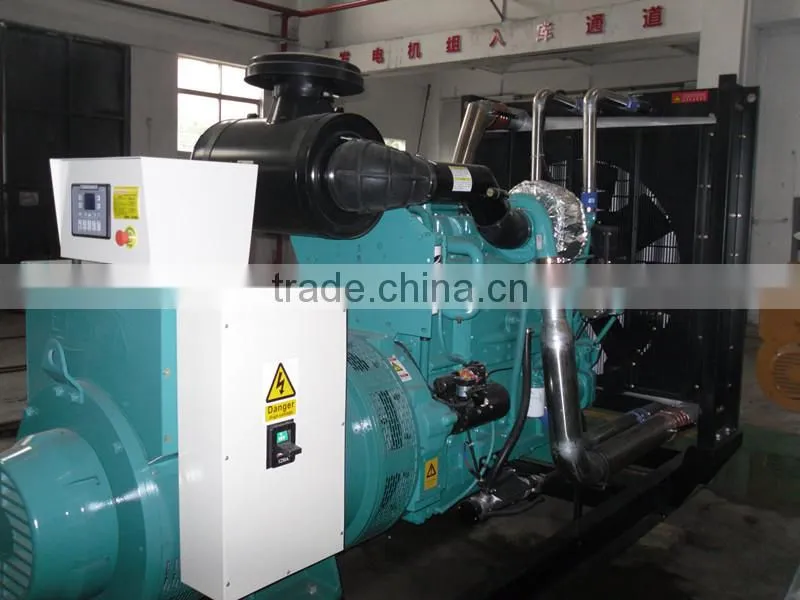

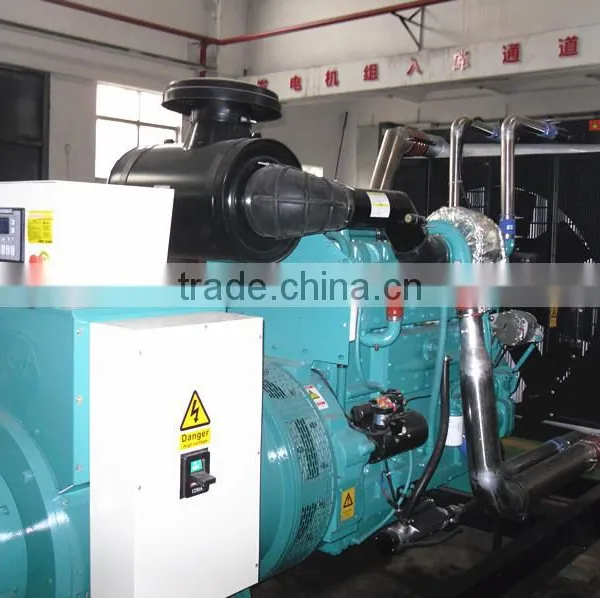

500kw generator with Cummins engine

Our promise

        1year or 1000 hours except Deutz generator (2years)

        We make the promise that we offer life-time and free technological support and problem solutions

        Genor Power will also provide spare parts and technology for free in warranty, which for troubles caused by the shortness and defect of design and manufacture of generator.

         Even some failures happen because of failure operation or after applicable expiration date, we also try our best to offer service.
