Hot Sale ! 200kva Water Cooled Engine Diesel Generator With ATS

Hot sale ! 200kva Water Cooled Engine diesel generator With ATS

Generator set:

Rated Power: 160KW/200KVA

Standby Power:176KW/220KVA

Rated speed: 1500rpm or 1800rpm

Noise Level: 68dB

Factor: COSΦ=0.8(lagging)

Phase/wire: 3 phase 4 wire

Rated Currency: 280 amps

Protection: Low oil-pressure, High water temperature, Over-speed, Over-current.

Engine of diesel generator :

Brand:

Model: 6CTAA8.3-G2

Origin: Manufactured by Dongfeng Cummins Engine Co., Ltd

Cylinders: 6

Engine Rated Power: 176kw/220kva

Start Model: DC24V electric start

Cylinders Layout: Line

Displacement: 8.3L

Speed-Governing: Electric

Steady Speed Droop:≤1%

Alternator of diesel generator :

Brand: Stamford

Model: UC1274H

Protection:IP23

Origin: Manufactured by Cummins Generator Technologies China

Rated Voltage: 220/380V(Adjustable)

Frequency regulation: ≤±0.5 %(stable)

Voltage Control: AVR

Controller of generator set:

Brand: Comap,Deepsea, Smartgen

Optional for diesel generator  :

1. ATS(Automatic Transfer switch), it can start generator set when the main power is off, once the main power comes back, the generator set will turn off automatically.

And ATS have the function of AMF (automatic Main power failure)

2. MCCB(Molded case circuit breaker)

It can protect the loading machine and the diesel generator.

3. Battery charger(float charger)

When the generator hasn't been used for a long time, the batteries will be no power, in that way, you can't start the generator, but the battery charger can charge the batteries from the main power.

4. Extra daily fuel tank

It will be requested while the base fuel tank capacity is not enough for daily fuel consumption

5. Paralleling system

This system can make several generators work together and automatically distribute the load according to set.

6. Remote Control Panel

Which can control the generator by computer, if use a RS484 or RS232 digital cable to connect the generator to the computer.

7. Water separate(additional cooling system)

If the ambient temperature is too high, it will be harmful to the diesel generator. Fan and water cooling is not enough for radiate. The water separate system is much better for cooling, and the life of generator will be much longer.

8. Spare Parts of Cummins engine

All the spare parts of each Cummins engine are supplied at very competitive price.

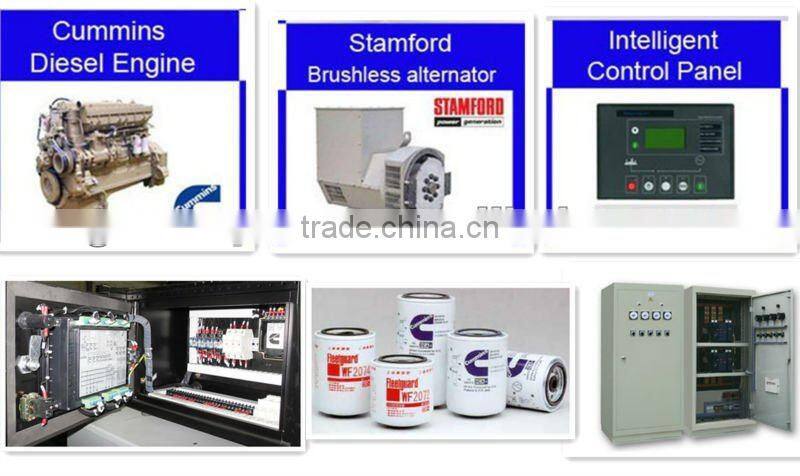

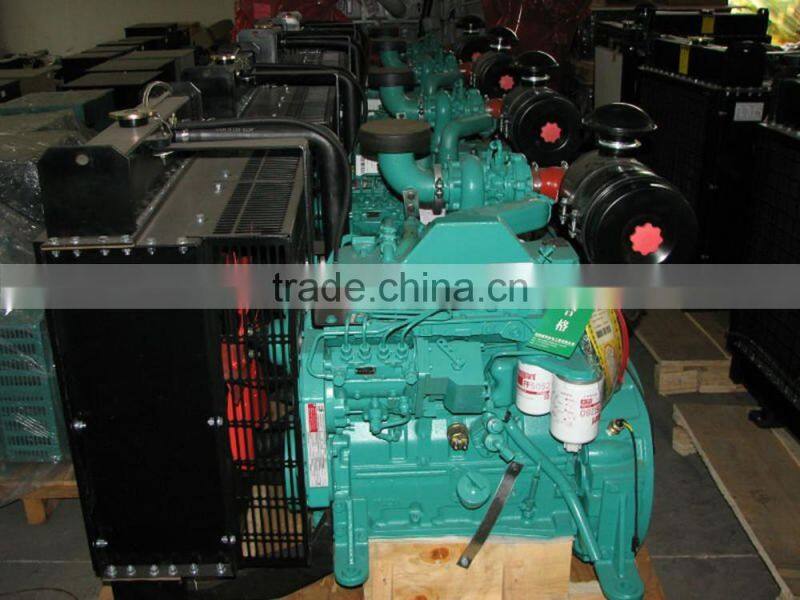

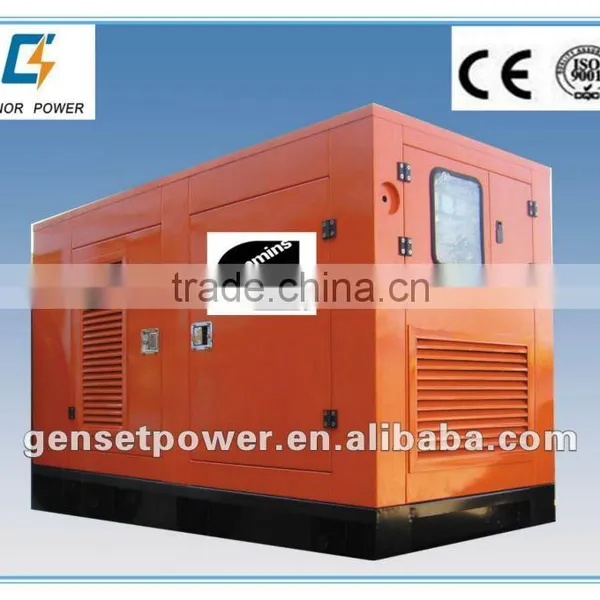

Photos of  cummins diesel generator
