Water Cooled Human Power Generator With Cummins Engine for Sale

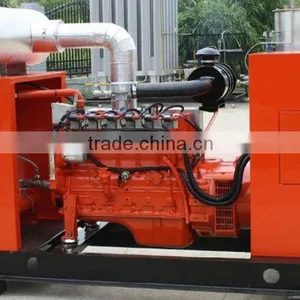

Water Cooled Human Power Generator With Cummins Engine for Sale thumbnail-1

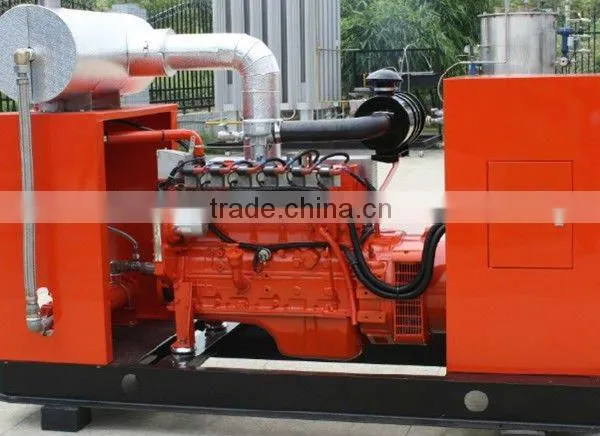

Water Cooled Human Power Generator With Cummins Engine for Sale photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GENOR POWER
Model Number:
GNRC
Contact Supplier Request Quote Chat Now
Shenzhen Genor Power Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GENOR POWER
Model Number GNRC
Output Type AC Three Phase
Speed 1500rpm OR 1800rpm
Frequency 50Hz or 60Hz
Rated Power 25KVA To 1250KVA
Rated Voltage 220V/380V, 230V/400V, 240V/415V
Rated Current 35A-1800A

water cooled Human Power generator with Cummins Engine for sale



Our company is an approved OEM partner. So we can provide genuine genset with very competitive price and comprehensive technical support

water cooled Human Power generator with Cummins Engine for sale



Parameters:
Genset Model Prime Powe Standby Power Engine Fuel Consumption Cylinder No. Displacement Bore X Stroke
KW KVA KW KVA (g/kwh)  (L ) (mm)
GNRC25 20 25 24 30 4B3.9-G ≤229 4 3.9 102*120
GNRC30 24 30 28 35 4BT3.9-G ≤214 4 3.9 102*120
GNRC50 40 50 45 56 4BTA3.9-G ≤215 4 3.92 102*120
 GNRC62.5 50 62.5  56  70 6BT5.9G1 ≤215 6 5.88 102*120
GNRC70 56 70 64 80 6BT5.9-G ≤215 6 5.88 102*120
GNRC120 96 120 106 133 6BTA5.9-G2 ≤215 6 5.88 102*120
GNRC150 120 150 132 165 6CTA8.3-G2 ≤210 6 8.3 114*135
GNRC200 160 200 180 225 6CTAA8.3-G2 ≤210 6 8.3 114*135
GNRC250 200 250 220 275 6LTAA8.9-G2 ≤210 6 8.3 114*135
GNRC300 240 300 270 337 NTA855-G1A ≤207 6 14 140*152
GNRC350 280 350 300 375 NTA855-G2A ≤208 6 14 140*152
GNRC375 300 375 320 400 NTAA855-G7 ≤206 6 14 140*152
GNRC400 320 400 350 437 NTAA855-G7A ≤206 6 14 140*152
GNRC500 400 500 440 550 KTA19-G4 ≤203 6 18.9 159*159
GNRC562 450 562 500 625 KTAA19-G5 ≤204 6 18.9 159*159
GNRC625 500 625 560 700 KTAA19-G6A ≤206 6 18.9 159*159
GNRC750 600 750 660 825 KTA38-G2 ≤214 12 37.9 159*159
GNRC900 720 900 780 975 KTA38-G2A ≤215 12 37.8 159*159
GNRC1000 800 1000 860 1075 KTA38-G5 ≤202 12 37.8 159*159
 GNRC1250  1000  1250  1100  1375  KTAA38G9A  ≤202 12 37.9 159*159






Specifications:

1. Output range: 25KVA-1250KVA

2. Available Engine: Cummins

3. Small volume, light weight, low noise, low fuel consumption, water cooling with water tank and fanair cooling

4. Key start / auto start

5. Monitoring meters and control switches

6. Protection provided for short, over-current, over-speed, high water temperature and low oil pressure

7. Soundproof / weatherproof canopy optional



Control Panel:

1. Automatic control panel (AMF), LCD display

2. Four protection systems

3. Emergency stop

 water cooled Human Power generator with Cummins Engine for sale

Soundproof/Silent Box:

1. Excellent ventilation

2. Oil tank mounted on base frame for 12 Hours working

3. Highly Corrosion Resistant construction

4. Excellent Access for Maintenance

5. Security and Safety

6. 1m<80 dB / 7m<70 dB



Standard Generator Set Features:

  • Dongfeng Cummins water cooled diesel engine,
  • Oil and fuel filter fitted, water separator
  • Lube-oil drain valve fitted
  • Electric starter & Charge altimeter 24v DC
  • Electronic governor
  • Normal duty air filter
  • Single bearing alternator, class H / IP21
  • Standard voltage 400/230 volts, 50Hz
  • Exciter/Voltage reg-Torque Match as standard
  • SmartgenHGM6310 with Bargraph as standard 3-circuit breaker
  • Welding steel base with vibration block base
  • Silencer
  • Starting storage battery
  • Green body, black base
  • Contract plastic film for package
  • Manual and machinery descriptions
  • Tag of standard configuration

Generator Set Performance:

  • 1. Voltage Regulation
  • Maintains voltage output to within 1.0%
  • At any power factor between 0.9 and 1.0
  • At any variations from no load to full load
  • At any variations from cold to hot
  • At speed droop variations up to 4.5%
  • 2. Frequency Regulation
  • Isochronous under varying loads from no load to 100% full load when electronic is fitted
  • 3. Random Frequency Variation
  • Will not exceed 0.25% of its mean value
  • For constant loads no load to full load
  • 4. Waveform
  • Total harmonic distortion open circuit
  • Voltage waveform in the order of 1.8%
  • Three-phase balanced load in the order of 5.0%
  • 5. Alternator Temperature Rise
  • Class H insulation

 water cooled Human Power generator with Cummins Engine for salewater cooled Human Power generator with Cummins Engine for salewater cooled Human Power generator with Cummins Engine for sale
