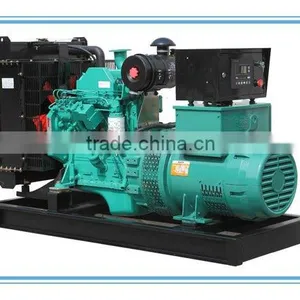

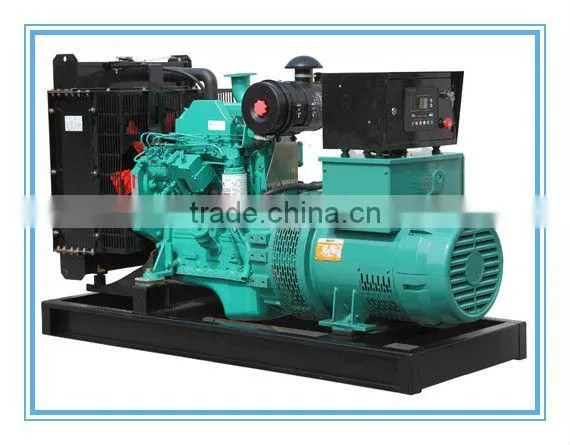

25KVA To 1250KVA Water Cooled Diesel Generators for Sale

25KVA To 1250KVA Water Cooled Diesel Generators for Sale thumbnail-1
25KVA To 1250KVA Water Cooled Diesel Generators for Sale photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GENOR POWER
Model Number:
GNRC
Contact Supplier Request Quote Chat Now
Shenzhen Genor Power Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GENOR POWER
Model Number GNRC
Output Type AC Three Phase
Speed 1500rpm or 1800rpm
Frequency 50Hz or 60Hz
Rated Power 25KVA To 1250KVA
Rated Voltage 220V/380V, 230V/400V, 240V/415V
Rated Current 35A-1800A

25KVA To 1250KVA water cooled diesel generators for sale

25KVA To 1250KVA water cooled diesel generators for sale



The following is detail description

Genset Model Prime Power Standby Power Engine Fuel Consumption Cylinder No. Displacement Bore X Stroke
KW KVA KW KVA (g/kwh)  (L ) (mm)
GNRC30 20 25 24 30 4B3.9-G ≤229 4 3.9 102*120
GNRC35 24 30 28 35 4BT3.9-G ≤214 4 3.9 102*120
GNRC56 40 50 45 56 4BTA3.9-G ≤215 4 3.92 102*120
GNRC63 45 56 50 63 4BTA3.9-G ≤215 4 3.92 102*120
 GNRC70 50 63  56  70 6BT5.9G1 ≤215 6 5.88 102*120
GNRC106 78 98 85 106 6BT5.9G ≤215 6 5.88 102*120
GNRC125 90 113 100 125 6BT5.9G2 ≤215 6 5.88 102*120
GNRC150 104 130 120 150 6BT5.9G2 ≤215 6 5.88 102*120
GNRC165 120 150 132 165 6CTA8.3-G2 ≤210 6 8.3 114*135
GNRC200 140 175 160 200 6CTA8.3-G2 ≤210 6 8.3 114*135
GNRC225 160 200 180 225 6CTAA8.3-G2 ≤210 6 8.3 114*135
GNRC275 200 250 220 275 6LTAA8.9-G2 ≤210 6 8.3 114*135
GNRC275 200 250 220 275 MTA11-G2A ≤210 6 10.8 125*147
GNRC350 250 313 275 350 MTAA11-G3 ≤210 6 10.8 125*147
GNRC275 200 250 220 275 NTA855-G1 ≤206 6 14 140*152
GNRC313 220 275 250 313 NTA855-G1A ≤206 6 14 140*152
GNRC350 250 313 275 350 NTA855-G2 ≤207 6 14 140*152
GNRC400 280 350 310 400 NTA855-G4 ≤208 6 14 140*152
GNRC413 300 375 330 413 KTA19-G2 ≤210 6 18.9 159*159
GNRC500 360 450 400 500 KTA19-G3 ≤203 6 18.9 159*159
GNRC550 400 500 440 550 KTA19-G4 ≤203 6 18.9 159*159
GNRC625 450 563 500 625 KTAA19-G5 ≤204 6 18.9 159*159
GNRC700 500 625 560 700 KTA38-G ≤206 12 37.8 159*159
GNRC712 520 650 570 712 QSK19-G3 ≤206 6 19 159*159
GNRC800 580 720 640 800 KTA38-GA ≤209 12 37.8 159*159
GNRC825 600 750 660 825 KTA38-G2 ≤210 12 37.8 159*159
GNRC888 640 800 710 888 KTA38-G2B ≤210 12 37.8 159*159
GNRC975 720 900 780 975 KTA38-G2A ≤210 12 37.8 159*159
GNRC1075 800 1000 860 1075 KTA38-G5 ≤202 12 37.8 159*159
 GNRC1375  1000  1250  1100  1375  KTAA38-G9A  ≤202 12 37.8 159*159

 1.Output range: 20kw(25kva)-1000kw(1250kva)

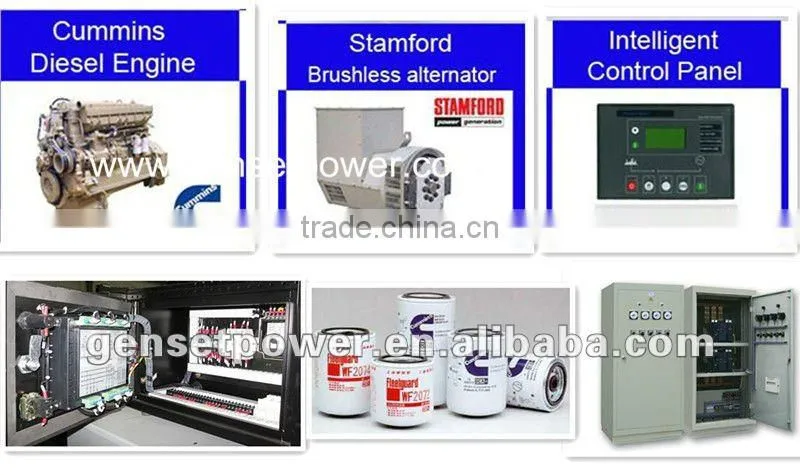

2.Cummins Engine models:NTA855-G1,NTA855-G1A,NTA11-G3,NTA855-G2A..

3.Alternator model: Leroy Somer / Stamford… (Excitation: Brush less)

4.Water-cooled

5. 10 hours operation base fuel tank

6. 230 / 400V AC, 50HZ / 60HZ, 0.8pF, 3-phase , 4 wires

7.Insulation class: H

8.Protection: IP23

9.Control panel consisting of:

Emergency Stop button / Voltmeter and selector switch

Ammeter and selector switch / Frequency meter

Controller with selection for auto-start, manual-start and Automatic alarm system with following (and not restricted to) features:

1).Start / Stop button

2).Hour run meter

3).Monitor engine temperature and provides shutdown protection

4).Monitor engine speed and provides optional shutdown protection

5).Monitor oil pressure or level and provides shutdown protection

6).Alarm output for abnormal operation

10.Sound-proof / weather-proof canopy is available

11.Detailed specification will provide upon requested

Soundproof/Silent Box:

1. Excellent ventilation

2. Oil tank mounted on base frame for 10 Hours working

3. Highly Corrosion Resistant construction

4. Excellent Access for Maintenance

5. Security and Safety

6. 1m<80DBA / 7m<70DBA

Control Panel:

1. Automatic control panel (AMF), LCD display

2. Four protection systems

3. Emergency stop

 25KVA To 1250KVA water cooled diesel generators for sale25KVA To 1250KVA water cooled diesel generators for sale
