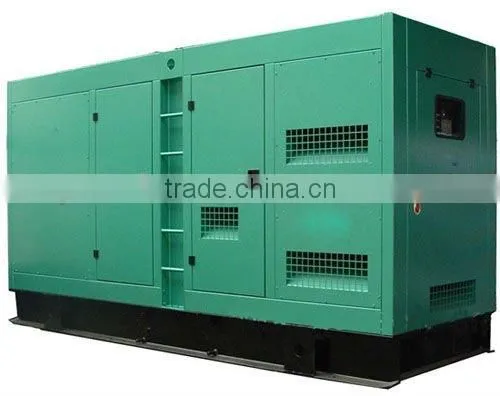

62.5KVA to 625KVA Diesel Power Doosan Silent Generator Set

62.5KVA to 625KVA Diesel Power Doosan Silent Generator Set thumbnail-1
62.5KVA to 625KVA Diesel Power Doosan Silent Generator Set photo-1
US$ 6,859 - 89,650 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DOOSAN
Model Number:
GNRDS
Contact Supplier Request Quote Chat Now
Shenzhen Genor Power Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name DOOSAN
Model Number GNRDS
Output Type AC Three Phase
Speed 1500rpm or 1800rpm
Frequency 50Hz or 60Hz
Rated Power 62.5KVA to 625KVA
Rated Voltage 220V/380V, 230V/400V, 240V/415V
Rated Current 90A to 900A

Specifications

Doosan Silent Generator Set
1)Doosan Engine
2)Noise Level:70dB at 7m away
3)Low Fuel Consumption
4)12 months warranty

62.5KVA to 625KVA Diesel Power Doosan Silent Generator Set



  The Doosan series diesel generator sets which pushed out by Daewoo Heavy Industry from South Korea, they are widely used in national defence, aeronautics & space industry etc with the advantages of Small volume, less noise, economic as well as reliable performance.

 62.5KVA to 625KVA Diesel Power Doosan Silent Generator Set



Technical parameters of diesel generator sets:

Genset Model Prime Power Standby Power Engine Fuel Consumption Cylinder No. Displacement Bore X Stroke
KW KVA KW KVA (g/kwh)  (L ) (mm)
GNR70DS 50 62.5 55 70 DB58 ≤216 6 8 102*118
GNR94DS 72 90 80 94 D1146 ≤216 6 8 111*139
GNR138DS 100 125 110 138 D1146T ≤216 6 8 111*139
GNR200DS 140 175 160 200 D086TI-1 ≤216 6 8 111*139
GNR225DS 160 200 180 225 P086TI ≤216 6 8 111*139
GNR275DS 200 250 220 275 P126T1 ≤216 8 8 123*155
GNR310DS 220 275 250 310 P126TI ≤216 6 11 123*155
GNR350DS 250 310 280 350 P126T11 ≤215 6L 11 128*142
GNR413DS 300 375 330 413 P158LE-1 ≤213 V8 14.6 128*142
GNR450DS 320 410 360 450 P158LE ≤212 V8 14.6 128*142
GNR500DS 360 450 400 500 P158LE ≤212 V10 18.3 128*142
GNR550DS 400 500 440 550 P180LE ≤212 V10 18.3 128*142
GNR625DS 450 560 500 625 P222LE-I ≤211 V12 21.9 128*142
GNR700DS 500 625 560 700 P222LE-S ≤211 V12 21.9 128*142





General Technical Data

1. Output range: 50  to  500kw prime

2. Frequency: 50 & 60HZ

3. Speed: 1500 or 1800RPM

4. Phase: 3 Phase 4 Wire & 1 Phase 2 Wire

5. Voltage: 220/380V, 230/400V, 240/415V, etc

6. Automatic digital control panel, auto start with AMF function



Genset Features:

1. Korea Doosan diesel engine

2. Radiator 40°C max,fans are driven by belt, with safety guard

3. Leroy Somer, Stamford alternator

4. Choice of manual/auto and AMF control panels and protection systems

5. Dry type air filter, fuel filter, oil filter

6. 10-hour operation base tank

7. Mould case circuit breaker

8. 24V batteries, rack and cable

9. Ripple flex exhaust pipe, exhaust siphon, flange and muffler

10. Comply with ISO and CE standards.

11. All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load , 110% load and all protection function (over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)



Alternator:

1. Brushless, 4 poles, rotation magnet

2. IP21-23(NEMA1) enclose is standard for all industrial alternators

3. H class insulation system

4. AVR self-regulated, voltage regulation rate: ≤±1%

5. Wide range of flange adaptors and single bearing disc coupling

6. Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

7. Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof





Control Panel:

1. Automatic control panel(AMF), LCD display

2. Four protection systems

3. Emergency stop

 62.5KVA to 625KVA Diesel Power Doosan Silent Generator Set62.5KVA to 625KVA Diesel Power Doosan Silent Generator Set



 62.5KVA to 625KVA Diesel Power Doosan Silent Generator Set
