Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Korea Doosan Dieesl Engine Generator

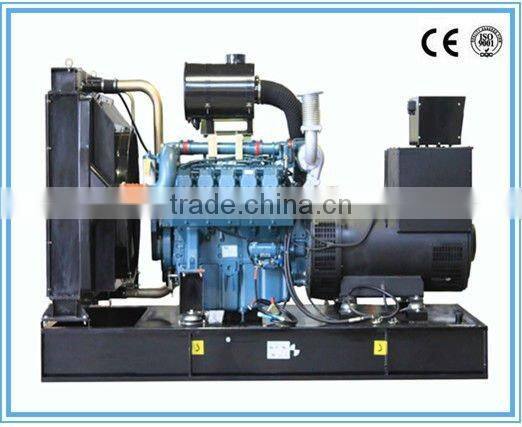

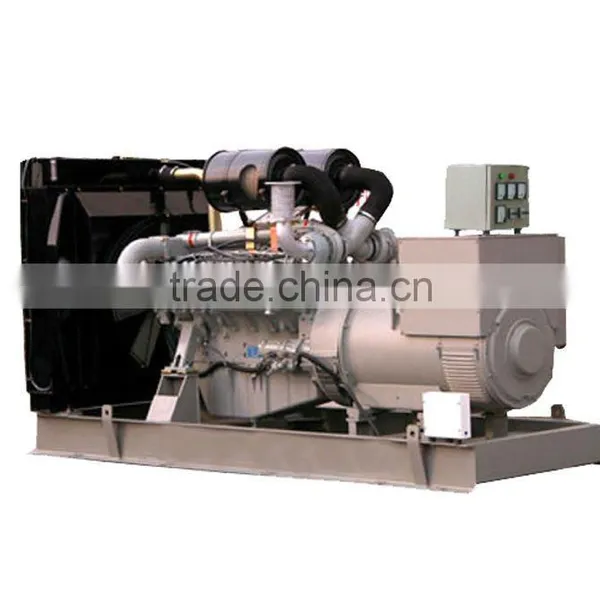

Korea Doosan Dieesl Engine Generator

Name: Korea Doosan Dieesl Engine Generator
Brand: DOOSAN
SKU: 140638146
Availability: InStock

Korea Doosan Dieesl Engine Generator thumbnail-1

Korea Doosan Dieesl Engine Generator photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

DOOSAN

Model Number:

GNRDS

Contact Supplier Request Quote Chat Now

Shenzhen Genor Power Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name DOOSAN

Model Number GNRDS

Output Type AC Three Phase

Speed 1500rpm or 1800rpm

Frequency 50Hz or 60Hz

Rated Power 62.5kva to 625kva

Rated Voltage 220V/380V, 230V/400V, 240V/415V

Rated Current 90A to 900A

Specifications

Korea Doosan Dieesl Engine Generator
-Doosan engine
-Marathon alternator
-Deepsea control plane
-Good quality,best price

Korea Doosan Dieesl Engine Generator

Technical parameters :

Genset Model	Prime Power		Standby Power		Engine	Fuel Consumption	Cylinder No.	Displacement	Bore X Stroke
Genset Model	KW	KVA	KW	KVA	Engine	(g/kwh)	Cylinder No.	(L )	(mm)
GNR70DS	50	62.5	55	70	DB58	≤216	6	8	102*118
GNR94DS	72	90	80	94	D1146	≤216	6	8	111*139
GNR138DS	100	125	110	138	D1146T	≤216	6	8	111*139
GNR200DS	140	175	160	200	D086TI-1	≤216	6	8	111*139
GNR225DS	160	200	180	225	P086TI	≤216	6	8	111*139
GNR275DS	200	250	220	275	P126T1	≤216	8	8	123*155
GNR310DS	220	275	250	310	P126TI	≤216	6	11	123*155
GNR350DS	250	310	280	350	P126T11	≤215	6L	11	128*142
GNR413DS	300	375	330	413	P158LE-1	≤213	V8	14.6	128*142
GNR450DS	320	410	360	450	P158LE	≤212	V8	14.6	128*142
GNR500DS	360	450	400	500	P158LE	≤212	V10	18.3	128*142
GNR550DS	400	500	440	550	P180LE	≤212	V10	18.3	128*142
GNR625DS	450	560	500	625	P222LE-I	≤211	V12	21.9	128*142
GNR700DS	500	625	560	700	P222LE-S	≤211	V12	21.9	128*142

Specifications:

Diesel engine:doosan engine

a) Multi-cylinder in-line or veer engine.4-stroke,direct injection

b) Governer Method:electrical or mechanical governor

c) Water cooling

d) Intake method:Natural apirated or turbocharged

e) Electric motor starting system

Alternator: Stamford,LeroySomer, Marathon,Engga

a) Brushless, 4 poles, rotation magnet

b) IP21-23(NEMA1) enclose is standard for all industrial alternators

c) H class insulation system

d) AVR self-regulated, voltage regulation rate: ≤±1%

e) Wide range of flange adaptors and single bearing disc coupling

f) Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

g) Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

Control plane :

a)Automatic alarm system: the unit has the acoustic-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature the oil pulls down, over speed, over load and over current

b) Operation display:

i)Unit voltage, tri-phase load current and frequency display

ii)Water temperature, oil pressure display

iii)Fuel level, fuel temperature dieplay

iv)Audible and visual alarm lamps and buzzers

c)Emergency stop button

d)Three protection

Warranty and Maintenance

1) Do the full power load test for five hours before package.

2) One year or 1000 working hours, whichever comes first.

3) After expiration, we provide spare parts maintenance with low price.
