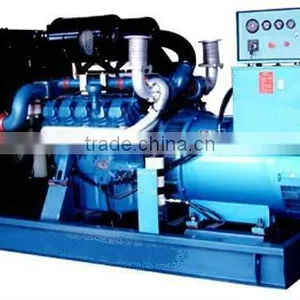

Doosan Daewoo Plant Power

Specifications

Technical parameters of diesel generator sets:

Specifications:

Diesel engine:doosan engine

a) Multi-cylinder in-line or veer engine.4-stroke,direct injection

b) Governer Method:electrical or mechanical governor

c) Water cooling

d) Intake method:Natural apirated or turbocharged

e) Electric motor starting system

Alternator: Stamford,LeroySomer, Marathon,Engga

a) Brushless, 4 poles, rotation magnet

b) IP21-23(NEMA1) enclose is standard for all industrial alternators

c) H class insulation system

d) AVR self-regulated, voltage regulation rate: ≤±1%

e) Wide range of flange adaptors and single bearing disc coupling

f) Radio interference restraining accords with the stipulation of VDE0875-N and ISO8528

g) Moisture proof, sand-proof, dustproof, salt-proof and vibration-proof

Control plane :

a)Automatic alarm system: the unit has the acoustic-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature the oil pulls down, over speed, over load and over current

 b) Operation display:

i)Unit voltage, tri-phase load current and frequency display

ii)Water temperature, oil pressure display

iii)Fuel level, fuel temperature dieplay

iv)Audible and visual alarm lamps and buzzers

c)Emergency stop button

d)Three protection

.

Supply standard collocation:

a) Diesel engine with all accessories, 3 filter, electric systems

b) Alternator

c) Steel structure

d) Fan and water tank(Fan and water tank cooling system)

e) Flange connector

f) 12 / 24V starting motor and charge engine

g) Air cleaner, fuel cleaner, oil cleaner

h) On-board control panel

i) MCCB air conservation switch

j) 12 / 24V starting accumulator and Battery line

k) Set shock absorber

l) High-efficient silencer

Accessories

a) Standard accessories: Standard 40 radiator mounted on skid, Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires, Standard tools kit, operation manual and document.

b) Optional accessories: Engine coolant and oil heater, alternator space heater, cooling for heat exchanger, communication interface, battery charger by main supply, daily fuel tank, ATS and paralleling system, soundproof canopy and moving trailer.
