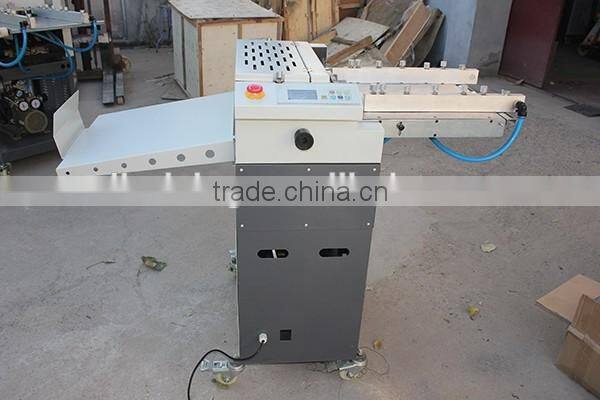

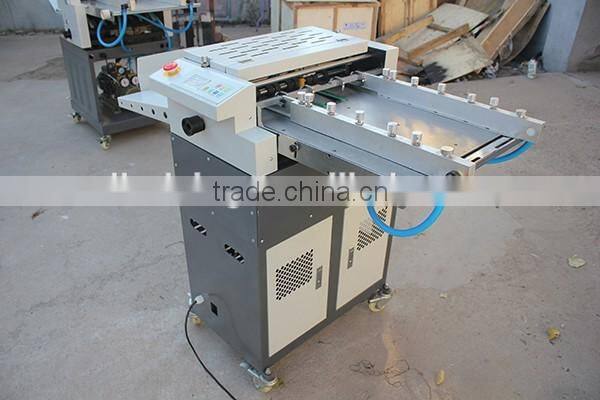

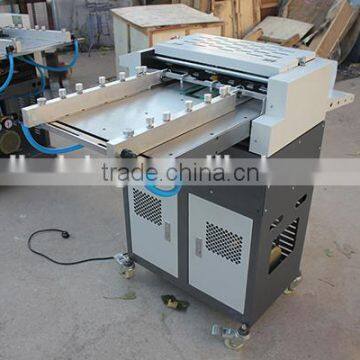

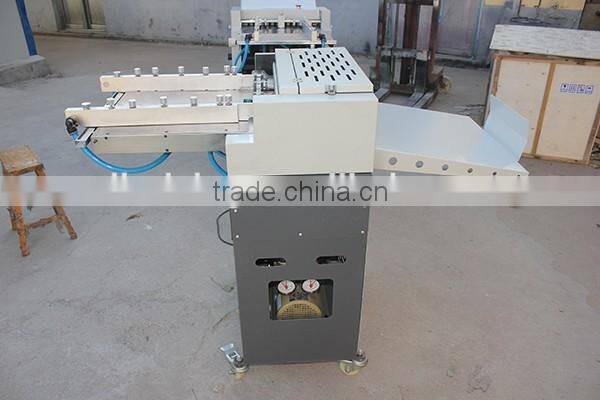

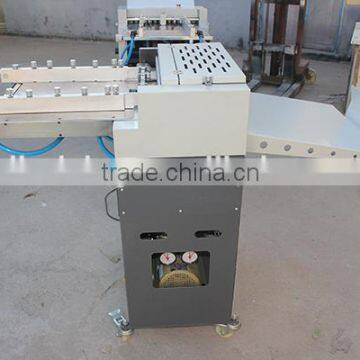

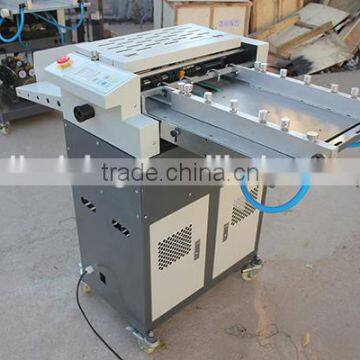

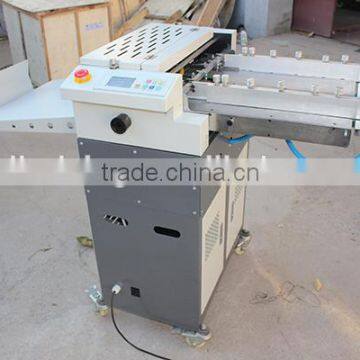

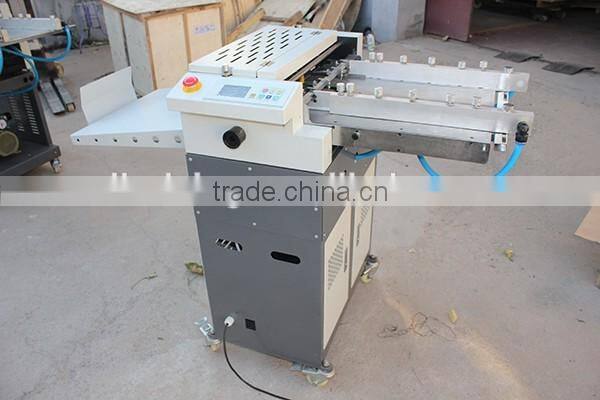

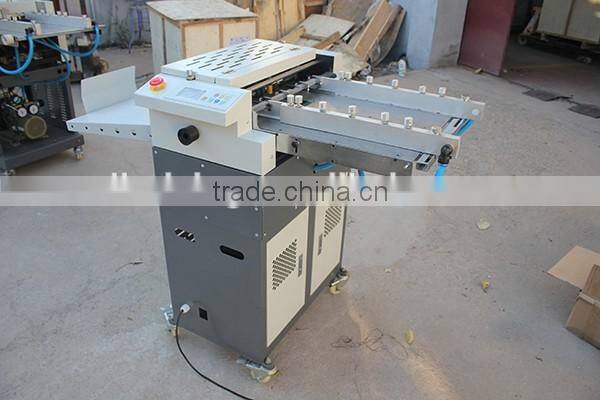

Brife of OR-QYH480 Multi-function Creasing Machine :
1. Vacuum pump blowing air continuous automatic feeding system, efficient, fast, low noise. The paper feed speed can be set by the program.
2. Front control screen, you can easily set the indentation position, indentation number. And can set the machine running speed, both counting, fault display and other functions.
3. Adjustable feed table, external fine-tuning device, you can adjust the knob to adjust the center of the paper and tilt the location.
4. Indentation at both ends of the knife pressure adjustable.
5. The use of modular yin and yang indentation groove design, optimize the indentation effect, to avoid paper cracks and burrs.
6. Can be synchronized to complete the horizontal indentation and vertical work together, the tool speed and pressure adjustable. (Self-adhesive line is optional).
7. Vertical table, easy to operate. Self-locking mute casters facilitate moving and fixing.
8. Ultra-high speed operation, paper 130 meters per minute.
Specification:
| Max format | 460*600mm |
| Min format | 80*90mm |
| Paper weight | 40-350g |
| Scribe knife minimum cutting width | 12mm |
| Speed | 130m/min |
| Paper thickness | 28-450g/m |
| Paper load capacity | 50 sheets (20 lb paper) |
| Power | 220V/50Hz, 1050W |
| Weight | 140KG |
| Over dimensions: | 1400*600*1100mm |
Main features:
1. Automatic indentation crossed one machine: with self-adhesive crossed, single indentation, spine marks, draw lines (noodle) and other functions, free combination of matching.
2. Automatic self-adhesive marking machine: high-speed paper, for the film stickers, dumb silver stickers, transparent stickers, cut the effect better, to solve the original manual scribing machine low efficiency, artificial High cost of trouble.
3. Automatic indentation machine: solve business cards, photos, greeting cards, cover and color pages of indentation, adding apron indentation, does not damage the paper fiber, to avoid the burst edge phenomenon, paper is more stable and easy to tilt.
4. Automatic winding line: to solve the paper bills, greeting cards and other paper requirements of the dotted line.
5. Fast, high efficiency, free to set the count state.
6. It is the printing plant, photocopying shop, business organizations, the best choice.
