Home > Products > New Products > OR-QYH480 Multi-function Creasing Machine

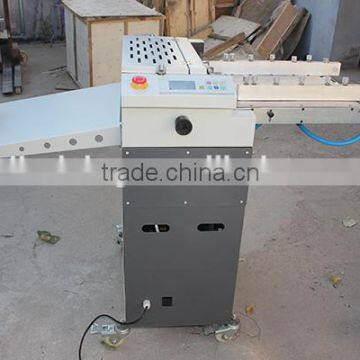

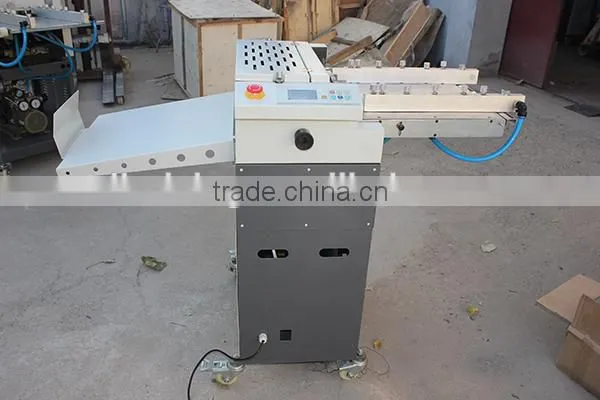

OR-QYH480 Multi-function Creasing Machine
- 400 Set / Sets per Month
- Main port in China
- T/T L/C D/P D/A Credit Card PayPal
- Leizhan Disc sludge thickener for paper pulp making production line
- 2013HOT SELL Stainless steel structure Disc thickener for paper pulp making production line
- Disc pulp filter machine of fluting and kraft paper production line
- Leizhan waste paper recycle equipment ZNP series disc thickener/paper processing equipment/paper pulp machinery
- disc thickener/paper pulp industrial use
- disc thickener used for washing and thickening/paper making industry
Product Details
Condition: | New | Type: | Other, creasing machine | Computerized: | Yes |
Place of Origin: | Henan, China | Brand Name: | allraising | Model Number: | OR-QYH-480 |
Voltage: | 220V/50Hz | Power(W): | 1050W | Dimension(L*W*H): | 1400*600*1100mm |
Weight: | 140KG, 140KG | Certification: | CE Certificate | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Brife of OR-QYH480 Multi-function Creasing Machine :
1. Vacuum pump blowing air continuous automatic feeding system, efficient, fast, low noise. The paper feed speed can be set by the program.
2. Front control screen, you can easily set the indentation position, indentation number. And can set the machine running speed, both counting, fault display and other functions.
3. Adjustable feed table, external fine-tuning device, you can adjust the knob to adjust the center of the paper and tilt the location.
4. Indentation at both ends of the knife pressure adjustable.
5. The use of modular yin and yang indentation groove design, optimize the indentation effect, to avoid paper cracks and burrs.
6. Can be synchronized to complete the horizontal indentation and vertical work together, the tool speed and pressure adjustable. (Self-adhesive line is optional).
7. Vertical table, easy to operate. Self-locking mute casters facilitate moving and fixing.
8. Ultra-high speed operation, paper 130 meters per minute.
Specification:
Max format | 460*600mm |
Min format | 80*90mm |
Paper weight | 40-350g |
Scribe knife minimum cutting width | 12mm |
Speed | 130m/min |
Paper thickness | 28-450g/m |
Paper load capacity | 50 sheets (20 lb paper) |
Power | 220V/50Hz, 1050W |
Weight | 140KG |
Over dimensions: | 1400*600*1100mm |
Main features:
1. Automatic indentation crossed one machine: with self-adhesive crossed, single indentation, spine marks, draw lines (noodle) and other functions, free combination of matching.
2. Automatic self-adhesive marking machine: high-speed paper, for the film stickers, dumb silver stickers, transparent stickers, cut the effect better, to solve the original manual scribing machine low efficiency, artificial High cost of trouble.
3. Automatic indentation machine: solve business cards, photos, greeting cards, cover and color pages of indentation, adding apron indentation, does not damage the paper fiber, to avoid the burst edge phenomenon, paper is more stable and easy to tilt.
4. Automatic winding line: to solve the paper bills, greeting cards and other paper requirements of the dotted line.
5. Fast, high efficiency, free to set the count state.
6. It is the printing plant, photocopying shop, business organizations, the best choice.
Packing Detail | Strong wooden case |
Delivery Detail | 3-7days after receiving the prepayment |
Mode of transportation | By sea,By Air, By Express |
Port of shipment | Main port in China mainland |
Terms of payment | L/C,T/T,Western union,Paypal/Trade Assurance |
Lower price |
|
Competitive price |
|
On time shipment | Most developed high way system and logistics delivecompany make sure on time shipment |
Producing line |
so our factory implement assembly line entirely. |
QC | strict quality control system to make sure the quality is good and stable. |
Sincerity |
|
Zhengzhou Allraising Machinery Company Ltd have been designing, developing, manufacturing and marketing Machinery for more than 10 years. After these years of development, we have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system. So choose us, equaling to choose the competitive price and stable quality both.
Better Quality, Lower Cost, Preferential service" is the principle which we have been following.We warmly and sincerely welcome any potential customer to visit our factory any time.Let's work hand in hand to create a resplendent future.
Q: Why don't person reply to me?
A: Our person is 24hours on-line. If nobody reply you , maybe he has other bussinesses temporarily.
So please leave your requirements on e-mail or chat tool, we will reply you as soon as possible.
Q:Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on our reputation.
"Best quality is our principle all the time. You can be assured on our production completely.
Q:How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company .
Because we are manufacture.You will get lower.
Welcome to contact me freely if you need any help!
QQ : 2781766438
Wechat : 15617847962
Whatsapp:+8615617847962
Skype : Lynn940419
Tel : 15617847962
