Home > Products > New Products > OR-QZYX920CT Qality insured cutting paper machine/cutting paper machine
OR-QZYX920CT Qality insured cutting paper machine/cutting paper machine
- 200 Set / Sets per Month
- Main port in China
- T/T L/C D/P D/A Credit Card PayPal
-
Leizhan Disc sludge thickener for paper pulp making production line
-
2013HOT SELL Stainless steel structure Disc thickener for paper pulp making production line
-
Disc pulp filter machine of fluting and kraft paper production line
-
Leizhan waste paper recycle equipment ZNP series disc thickener/paper processing equipment/paper pulp machinery
-
disc thickener/paper pulp industrial use
-
disc thickener used for washing and thickening/paper making industry
Product Details
| Condition: | New | Type: | Other, paper cutting machine | Computerized: | Yes |
| Place of Origin: | Henan, China | Brand Name: | allraising | Model Number: | OR-QZYX920CT |
| Voltage: | 220V/380V, 380V/220V | Power(W): | 3KW | Dimension(L*W*H): | 2300*1950*1500mm |
| Weight: | 2500kg | Certification: | CE Certificate | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

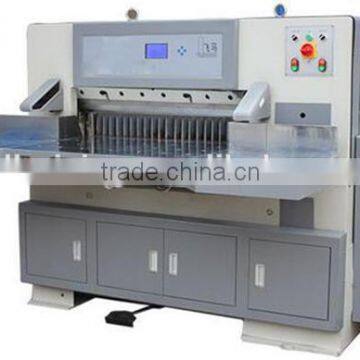

Brife of OR-QZYX920CT hydraulic digital cutting machine:
1. Machine performance: voltage: 380V: gantry structure. Cut paper, paper, push paper are motor drive;

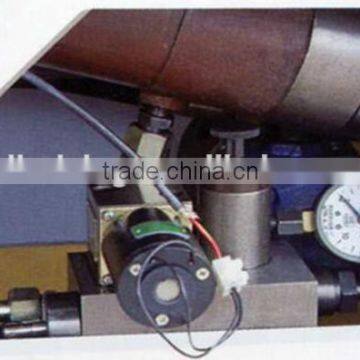

2. Press the hydraulic mechanism, the pressure size adjustable;

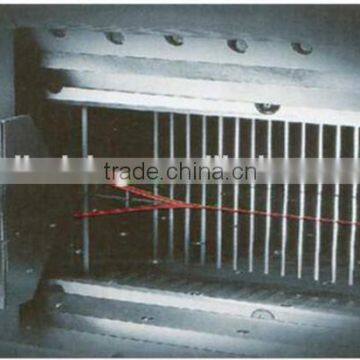

3. Equipped with infrared safety protection device, cutting with helical gears, cutting force, push the paper using the dovetail groove structure, push the paper screw drive using brake motor, so that push the paper positioning accuracy;
4. With high-precision digital display structure, resolution of 0.01MM.
Specification:
| Max cutting width | 920mm |
| Max cutting length | 920mm |
| Max cutting height | 120mm |
| Cutting motor | 3KW |
| Feeding motor | 0.37KW |
| Machine weight | 4500KG |
| Voltage | 380V/220V |
| Max platen pressure | 30000N |
| Dimensions | 2300*1950*1500mm |
Main features:
1. The main drive system: the use of flat secondary enveloping worm gear drive, compact structure, high transmission efficiency, carrying capacity, low noise, low energy consumption.
2. Workbench system: chute-free chrome table, the use of double-rail structure, the system rigid, push the vertical adjustment and parallelism adjustment were independent, simple and accurate.
3. Hydraulic system: the use of German technology to increase the capacity of the cylinder, the choice of ISO-compliant hydraulic components.
4. Convenient system: mat-tip device, hook-type quick tool change mechanism.
5. Security protection system: the use of infrared security devices and two-hand interlock and other multiple security protection system.
6. Digital cutting machine, which uses the position detection device, through the LCD display size, resolution of 0.10MM, accurate reading, cutting high precision.
| Packing Detail | Strong wooden case |
| Delivery Detail | 3-7days after receiving the prepayment |
| Mode of transportation | By sea,By Air, By Express |
| Port of shipment | Main port in China mainland |
| Terms of payment | L/C,T/T,Western union,Paypal/Trade Assurance |
Lower price |
|
Competitive price |
|
On time shipment | Most developed high way system and logistics delivecompany make sure on time shipment |
Producing line |
so our factory implement assembly line entirely. |
QC | strict quality control system to make sure the quality is good and stable. |
Sincerity |
|
Zhengzhou Allraising Machinery Company Ltd have been designing, developing, manufacturing and marketing Machinery for more than 10 years. After these years of development, we have high quality professional teams, skillful talents, strong technical force, strong and independent research and development capabilities, advanced production equipment and a perfect after-sales service system. So choose us, equaling to choose the competitive price and stable quality both.
Better Quality, Lower Cost, Preferential service" is the principle which we have been following.We warmly and sincerely welcome any potential customer to visit our factory any time.Let's work hand in hand to create a resplendent future.
Q: Why don't person reply to me?
A: Our person is 24hours on-line. If nobody reply you , maybe he has other bussinesses temporarily.
So please leave your requirements on e-mail or chat tool, we will reply you as soon as possible.
Q:Can you guarantee your quality?
A:Of course. We are the manufacture factory. More important, we put a high value on our reputation.
"Best quality is our principle all the time. You can be assured on our production completely.
Q:How do you make your price?
A: We make the price according to our comprehensive costing. And our price will lower than the trade company .
Because we are manufacture.You will get lower.
Welcome to contact me freely if you need any help!
QQ : 2781766438
Wechat : 15617847962
Whatsapp:+8615617847962
Skype : Lynn940419
Tel : 15617847962
