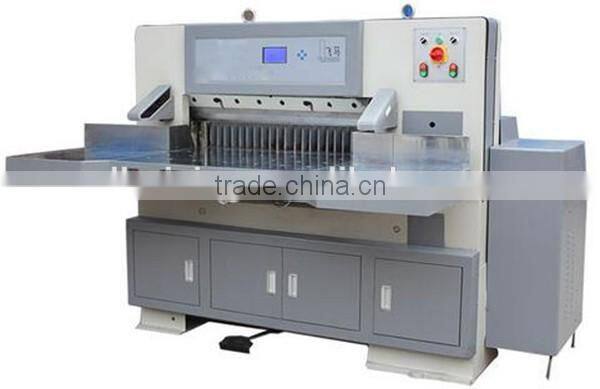

Help CenterOR-QZYX920CT Hydraulic Digital Electric Paper Cutter/ Industrial Paper Cutter/paper Cutter Knife
Related Products
-
OR-QZYX920CT Qality Insured Cutting Paper Machine/cutting Paper MachineUS$ 6,500 - 23,000MOQ: 1 Set -
OR-QZYX920CT Hydraulic Digital Paper Cutting Machine/paper Cutting Machine PriceUS$ 6,500 - 23,000MOQ: 1 Set
-
OR-QZYK1300 Low Cost Paper Cutting Machine /paper Cutting Machine PriceUS$ 6,500 - 23,000MOQ: 1 Set
-
OR-QZYK1300 Hydraulic Digital Cutting Machine/cutterUS$ 6,500 - 23,000MOQ: 1 Set
-
OR-QYH480 Professional Cardboard Creasing Machines With CE CertificateUS$ 2,388 - 4,500MOQ: 1 Set
Brife of OR-QZYX920CT hydraulic digital cutting machine:
1. Machine performance: voltage: 380V: gantry structure. Cut paper, paper, push paper are motor drive;
2. Press the hydraulic mechanism, the pressure size adjustable;
3. Equipped with infrared safety protection device, cutting with helical gears, cutting force, push the paper using the dovetail groove structure, push the paper screw drive using brake motor, so that push the paper positioning accuracy;
4. With high-precision digital display structure, resolution of 0.01MM.
Specification:
| Max cutting width | 920mm |
| Max cutting length | 920mm |
| Max cutting height | 120mm |
| Cutting motor | 3KW |
| Feeding motor | 0.37KW |
| Machine weight | 4500KG |
| Voltage | 380V/220V |
| Max platen pressure | 30000N |
| Dimensions | 2300*1950*1500mm |
Main features:
1. The main drive system: the use of flat secondary enveloping worm gear drive, compact structure, high transmission efficiency, carrying capacity, low noise, low energy consumption.
2. Workbench system: chute-free chrome table, the use of double-rail structure, the system rigid, push the vertical adjustment and parallelism adjustment were independent, simple and accurate.
3. Hydraulic system: the use of German technology to increase the capacity of the cylinder, the choice of ISO-compliant hydraulic components.
4. Convenient system: mat-tip device, hook-type quick tool change mechanism.
5. Security protection system: the use of infrared security devices and two-hand interlock and other multiple security protection system.
6. Digital cutting machine, which uses the position detection device, through the LCD display size, resolution of 0.10MM, accurate reading, cutting high precision.
| Packing Detail | Strong wooden case |
| Delivery Detail | 3-7days after receiving the prepayment |
| Mode of transportation | By sea,By Air, By Express |
| Port of shipment | Main port in China mainland |
| Terms of payment | L/C,T/T,Western union,Paypal/Trade Assurance |
|
