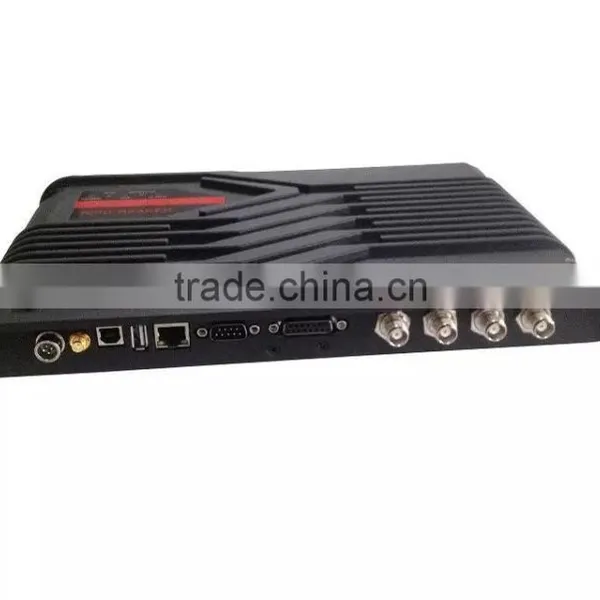

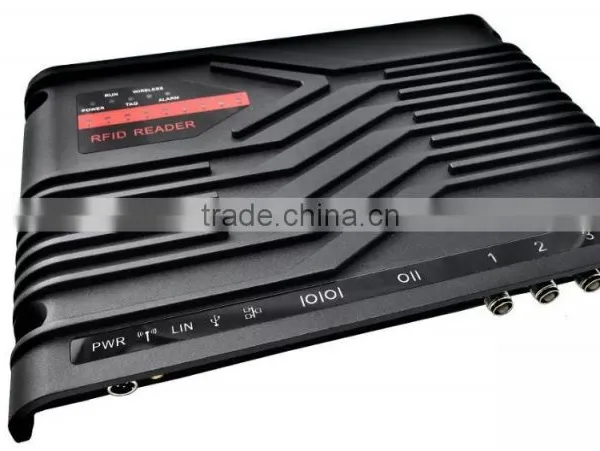

R2000 Model UHF Long Range Passive RFID Reader

Model:HCT-UHFR-10804-D
Size:310mmx210mmx41mm

GENERAL DESCRIPTION
HCT-UHFR-10804-D is a high performance UHF RFID fixed reader. It is designed upon fully
self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports
fast tag read/write operation with high identification rate. It can be widely applied in many RFID
application systems such as logistics, access control, anti-counterfeit and industrial production
process control system.
FEATURES
Self-intellectual property;

Designed with Impinj R2000 RFID engine;

Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;

860~868MHz/902~928MHz frequency band(frequency customization optional);

FHSS or Fix Frequency transmission;

RF output power up to 30dbm(adjustable);

4 TNC antenna port with antenna auto-tuning and failure-detection;

Support auto-running, answer, trigger and real-time-inventory work mode;

Tag buffer size up to 800PCS (Max. 496bits EPC length);

Support EPC and TID inventory;

Low power dissipation with single +9 DC power supply;

Support RS232, RS485, RJ45(TCPIP) with WiFi and POE optional;

High reliability design;

Support on the-site firmware upgrading and optional Wince or Linux Operation System.
