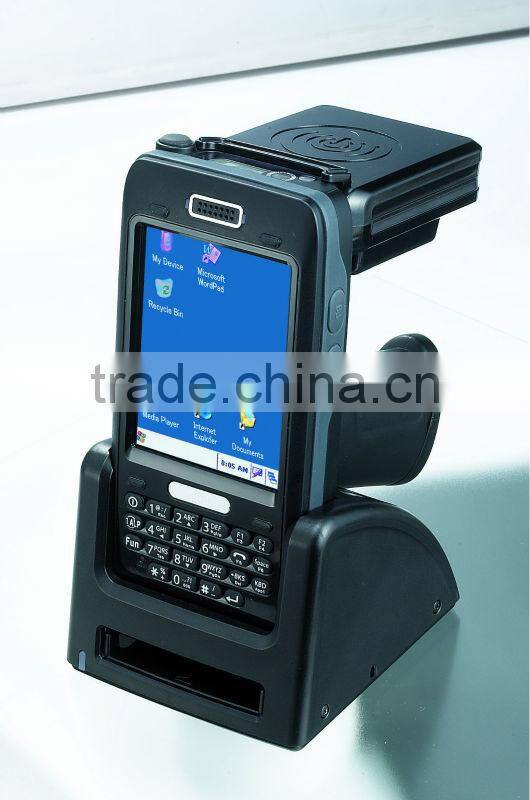

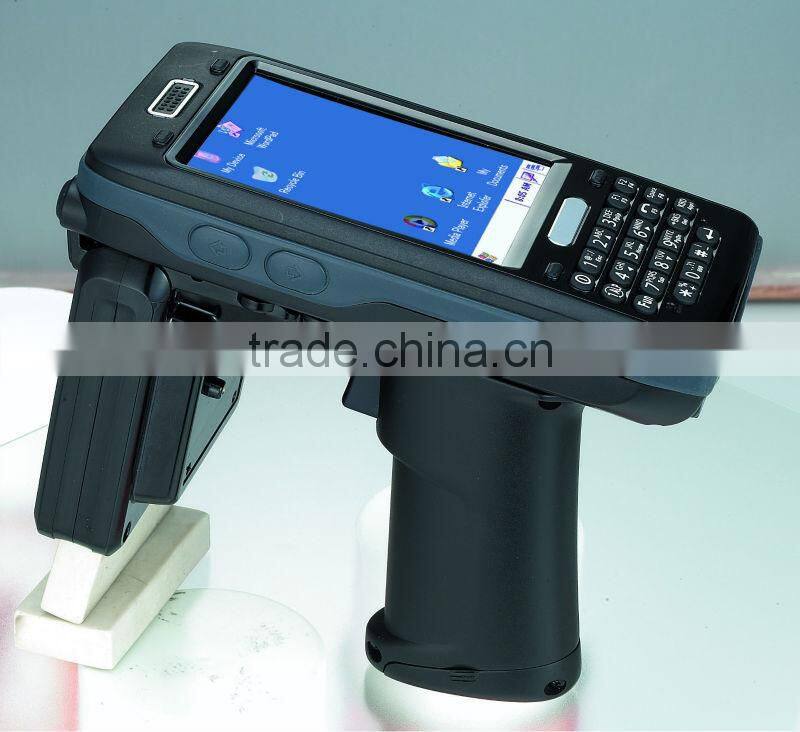

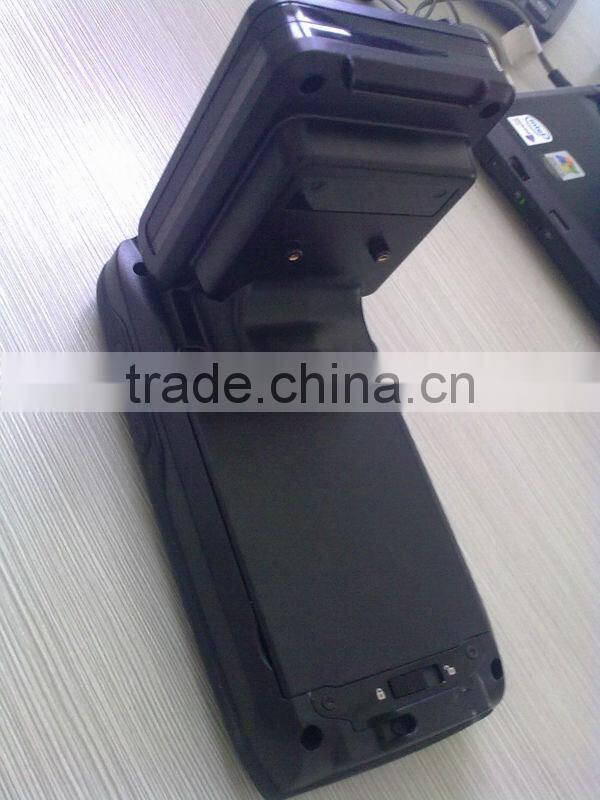

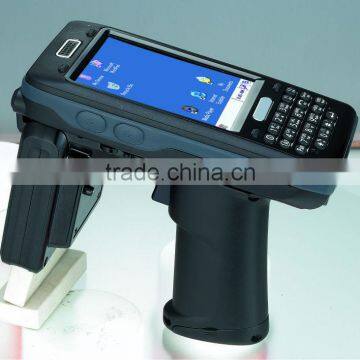

UHF Handheld Reader

Model

HCT-UHFR-10807

Process or

Marvel PXA 270 520MHZ

Marvel PXA320 820MHZ (optional)

Memory

128MB ARM/256MHZ ROM

Operation system

Windows CE5.0,Windows CE6.0(optional)

Windows Mobile6.0(option by order)

Display

3.5” TFT LCD 256K color LCD

QVGA resolution(240W x320L) with backlight

User Interface

Keyboard buttons and touch screen

Numeric key .Qwerty key

Hands Free speaker, Microphone/Receiver

Headset Port

Standard communications

USB Host or Client

RS232 interface(connecter option),DC jack

Ethernet (via cradle) option.

Wireless communications(optional)

WLAN/PAN option         WLAN option

-802.11 b/g               -CDMA EVDO or 2000 1X

-Blue tooth V2.0          -GSM/GPRS/EDGE

Class Ⅱ(SPP)             -HSDPA

                       -WCDMA(optional by order)

RF-ID ( optional)

HF13.56Mhz(ISO15693,14443A/B MIFARE)

UHF866-954Mhz(EPC class 1 GEN2)

Barcode Application( optional)

1D laser Scanner/2D Imager (optional)

Camera (optional)

1.3 megapixel Fixed Focus with flash

GPS(optional)

GPS Receiver with integrated Antenna

Expansion slot

1 Micro SD slot,1 slm slot

Power

3000 mAh Lithium Polymer main Battery Pack

4400 mAh Lithium Lon Pack with Gun Option

100 mAh Lithium Polymer Back-up Battery

User Environment

-20°C to 50°C operating Temperature

-30°C to 60°C storage Temperature

95% non-condensing Humidity

1.5 meters to Polished concrete,IP54 Sealing

Accessories and Options

Single slot cradle (with Ethernet Option)

Vehicle cradle, Sync cable, Battery Charger

Gun Handle (with 4400 mAh Battery option)

Belt clip, 4 slot cradle (option by order)

Dimensions

146 x 74 x 26 ( L x W x Hmm)

Weight

270 g-330g(according to option)
