Long Range UHF RFID Reader With WIFI

Specifications

GENERAL DESCRIPTION

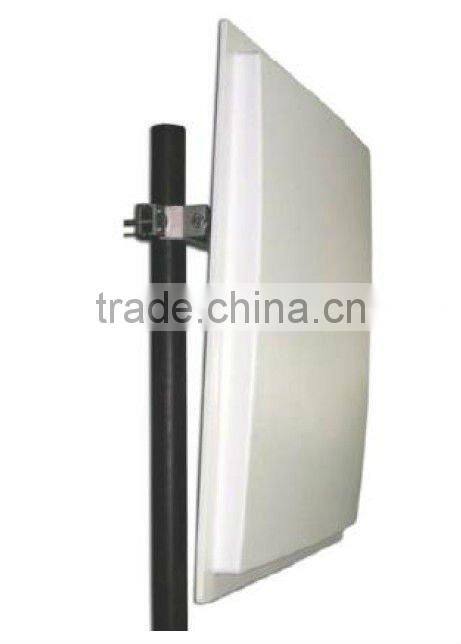

HCT-UHFR-10802-B is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system.

FEATURES

l Self-intellectual property;

l Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

l 902~928MHz frequency band(frequency customization optional);

l FHSS or Fix Frequency transmission;

l RF output power up to 30dbm(adjustable);

l 12dbi antenna optional with effect distance more than 10m^*;

l Support auto-running, interactive and trigger-activating work mode;

l Low power dissipation with single +9 DC power supply;

l Support RS232, RS485, Wiegand interface;

l Provide DLL and Demonstration Software Source code to facilitate further development.

size 445mmx4455mmx55mm

INTERFACE

Effective distance depends on antenna, tag and environment.
