HF desktop reader for read-only , can read IC card or RFID tag data and output through keyboard USB virtual keyboard. With keybo

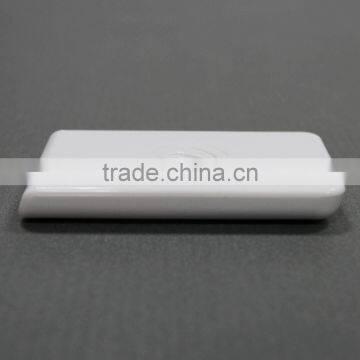

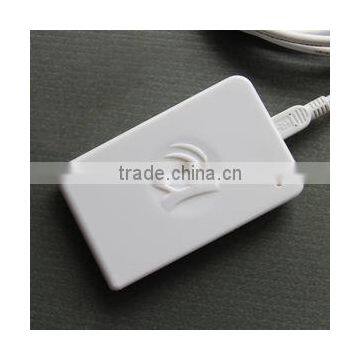

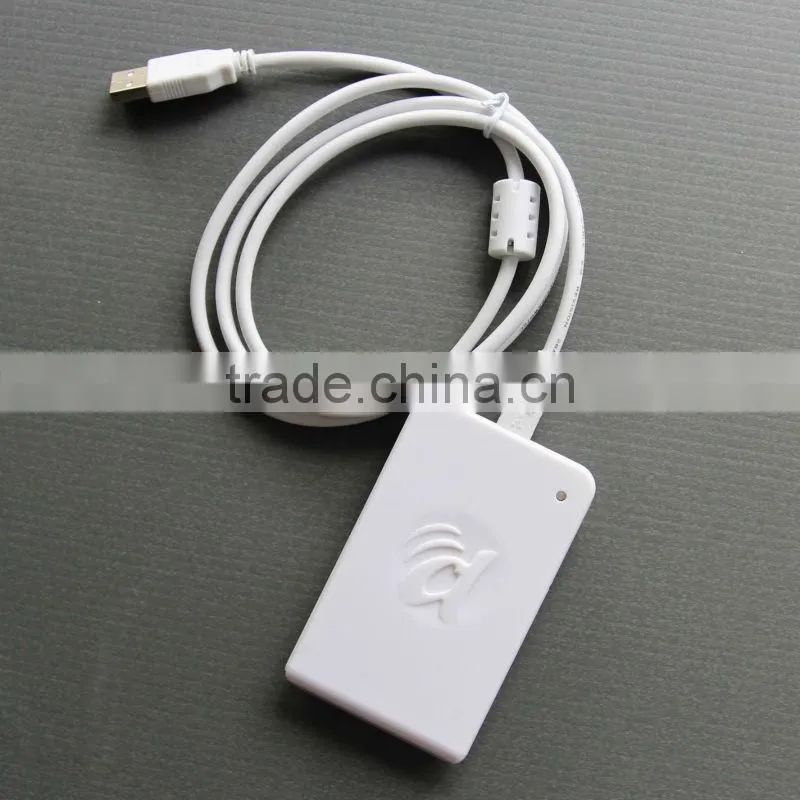

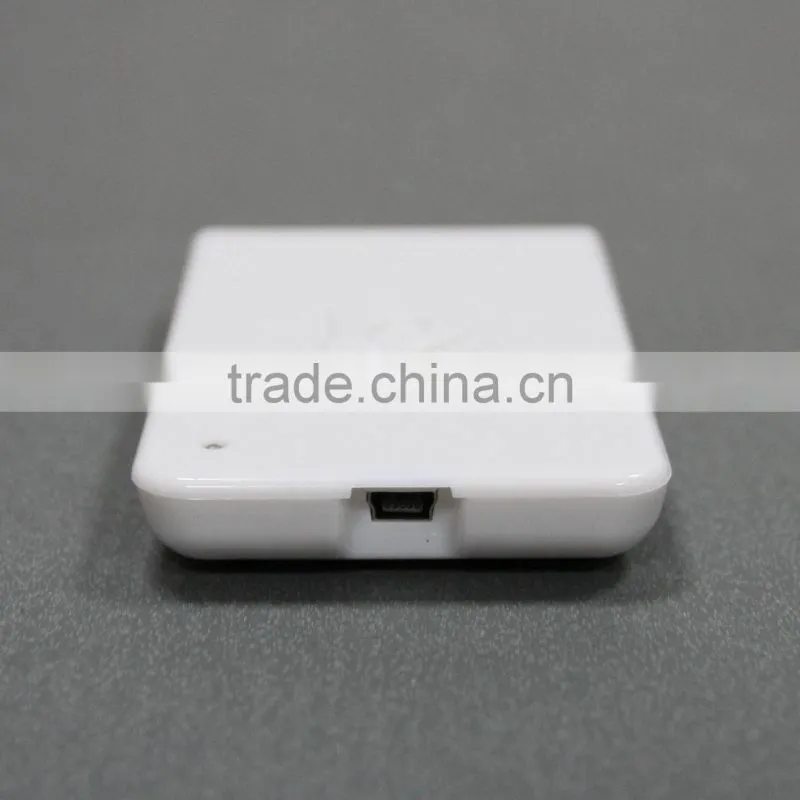

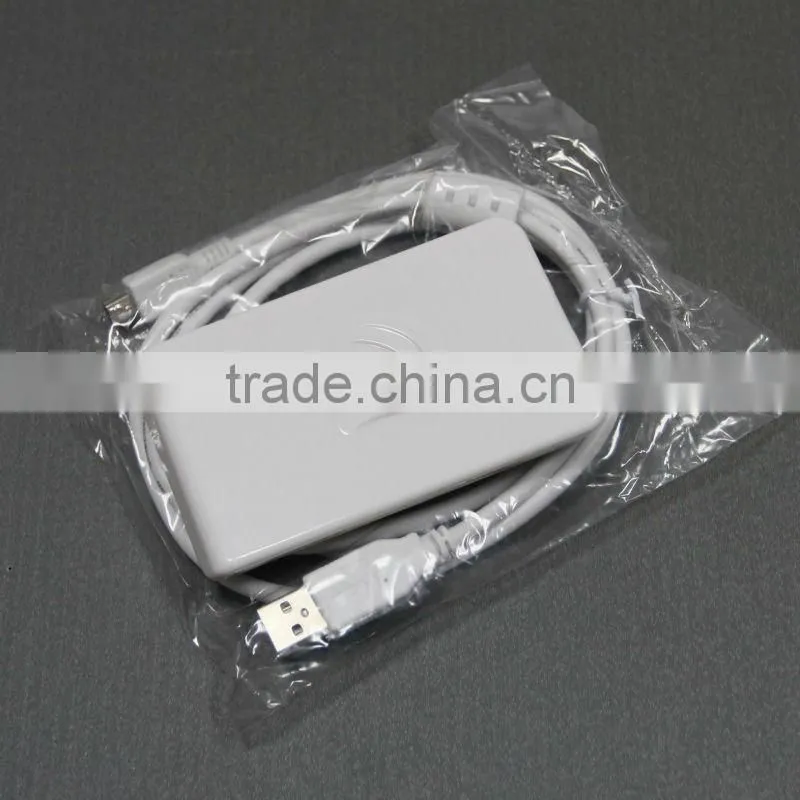

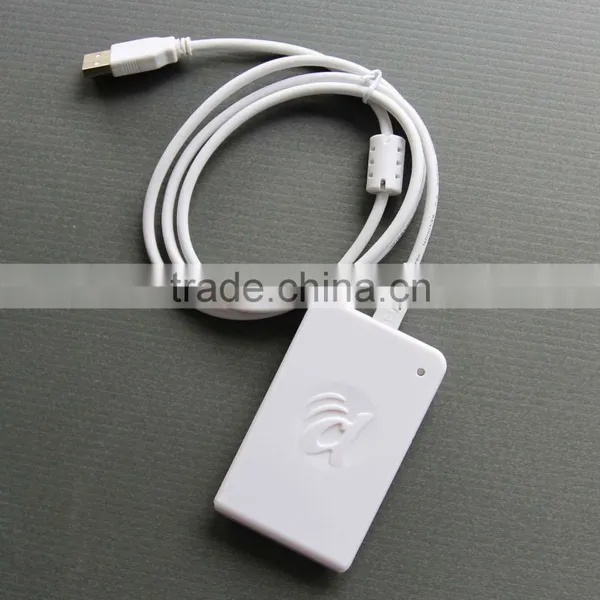

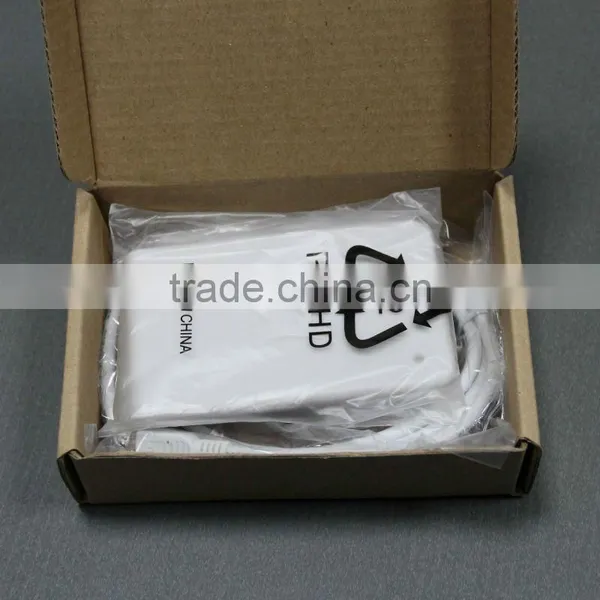

HF desktop reader for read-only , can read IC card or RFID tag data and output through keyboard USB virtual keyboard. With keyboard interface specification (HID), it can run on Windows, Linux and other system that supporting USB keyboard.
It comes with a simple software that users can set it to read the series number or to the content in the block or in the page of the tags.
HF reader's factory default configuration is configuration status, need to use the software to set the reader before reading. The company introduced advanced equipment to strictly monitor the product quality to ensure the reader is with good quality and stability features.
Applications
• Member Management
• Access control
• Card code sprayed
• Outpatient registration
Specification
Model | HCT-HFR-701 | ||
Frequency | 13.56MHz | ||
Protocol | ISO 14443A,ISO14443B,ISO 15693 | ||
Support Chip | 1.ISO14443A:Mifare_One(S50&S70)/UltraLight/Mifare_Pro ,ULtralight C | ||
O/S | Microsoft Windows2000/XP/Vista/WIN 7 | ||
Port | USB 2.0 | ||
Power | USB power | ||
Indication lights | Three colors LED,buzzer | ||
RFID antenna | Integration Design of Reader and Antenna | ||
Support SAM | Built two SAM slot | ||
Reading range | ISO 14443A:6CM(depend on antenna structure and working environment ) | ||
Dimension | 100 *60 *12mm | ||
Weight | 100g | ||
Power dissipation | 5 mA (typical) standby | ||
Working temperature | -25 - +85 °C | ||
Store temperature | -40 - +125 °C | ||
Development | No need development. plug and play | ||
| HCT_HRF-701A | HCT-HFR_701D | HCT-HFR_700H |
ISO 14443A | a |
| a |
ISO 14443B |
| a | a |
ISO 15693 |
|
| a |
