Specifications

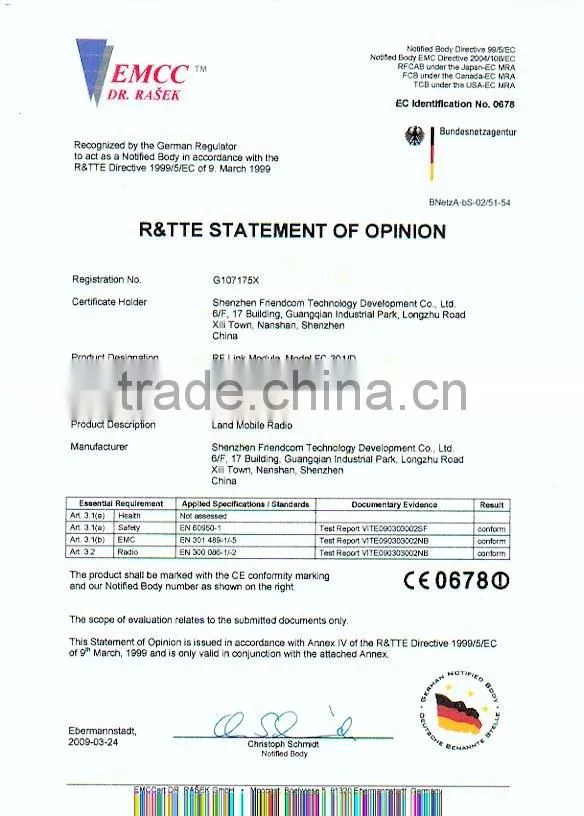

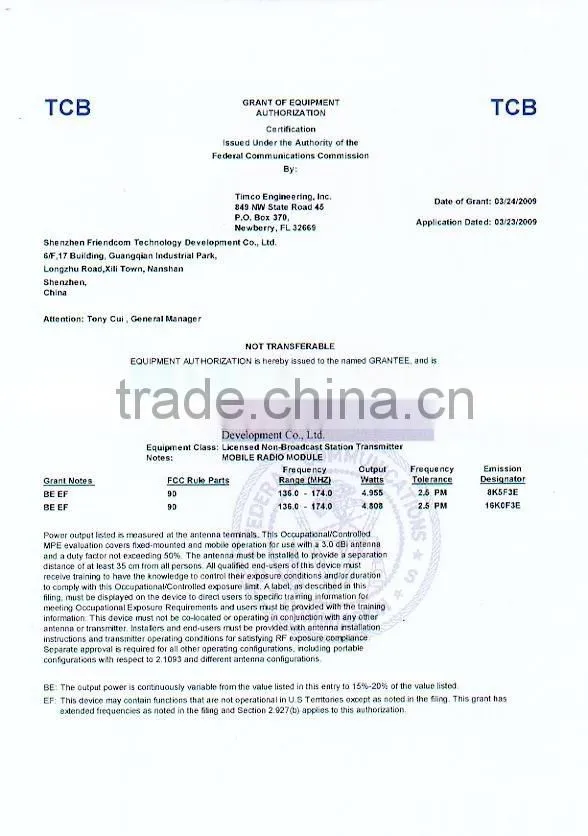

1) 5W data radio with CE, FCC2) Frequency: 136-174MHz,12.5Khz,25Khz
3)Dimensions: 120*60*20mm
4)Weight:170g
Product Description:

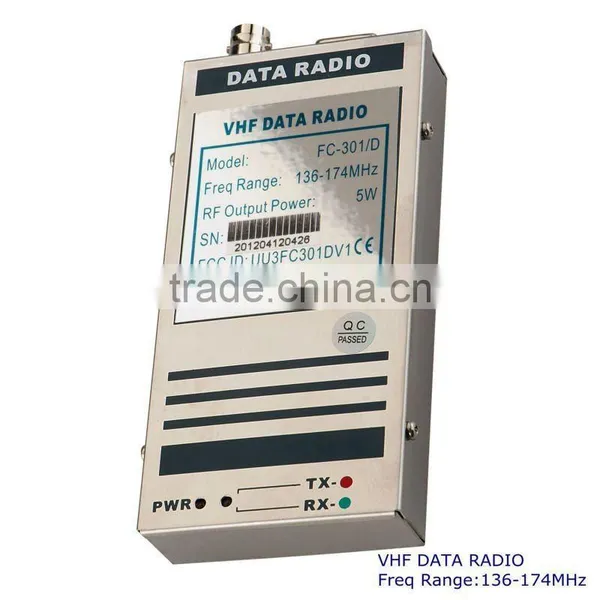

FC-301/D is a synthesized 5-watt FM transceiver module which is designed for data as well as voice (with selectable pre-emphasis, squelch, and audio amplifier). Two-point modulation for good low-frequency response used in the radio makes it a good choice to work with 9600 baud data modem. Compact size and multi-voltage DC connection capability gives the module flexibility in use.
Technical Specifications:
- Frequency band: 136-174MHz
- Operation voltage: DC12.5V
- Transmit 5 Watts RF Power :< 1.5A
- Transmit 1 Watt RF Power:<0.8A
- RX current: 40mA
- RF output power: 1W - 5W Programmable
- Channel Spacings:25KHz,12.5KHz programmable
- Modulation type :16K0F3E ,8K5F3E
- Intermediate Frequency: 45.1MHz&455KHz
- Number of Channels:16
- Frequency Source :Synthesizer
- Operation Rating:Intermittent 5:5:90 ( TX: RX: Standby)
- Storage:from -40°C to +80°C
- Operating:from -30°C to +60°C
- Dimension: 120*60*20mm(Length * width * height)
Other accessories
FC-301/D can transfer both data and audio.
If customer needs to transfer data, a data modem is a must, as below.
Program cable for programming FC-301/D, connect it to computer.
Software for easy programming.
Antenna
