Specifications
1.CE&FCC certification2.1-10W RF power programmable
3.UHF/VHF 16 Channels
4.Weight:270g
5.Dimension:120*71.2*30.4mm
VHF/UHF Narrowband High Speed Data Radio FC-206
Product Description
FC-206 is a PLL synthesized 10-watt FM data radio. It is characteristic of its fast TX startup time and its low cost. Two-point modulation is applied in the radio. Embedded data modem based on CMX969 is optional, which can easily implement point to point or point to multi-point data or/and voice communication.
Key Features:
·Comply with CE: EN300086, EN300113; FCC: Part 90.
·1-10W RF power programmable
·Operates from 8V to 16V DC
·TX Startup time is less than 5ms, fast RX/TX switch time.
·Data and voice compatible with programmable priority
·12.5KHz/25KHz channel spacing optional
·Freq step 5KHz /6.25KHz compatible
·PC Programming via Software
·Solid Die-Cast Aluminum Housing
·Capable to work as network radio, remote radio or repeater.
Applications

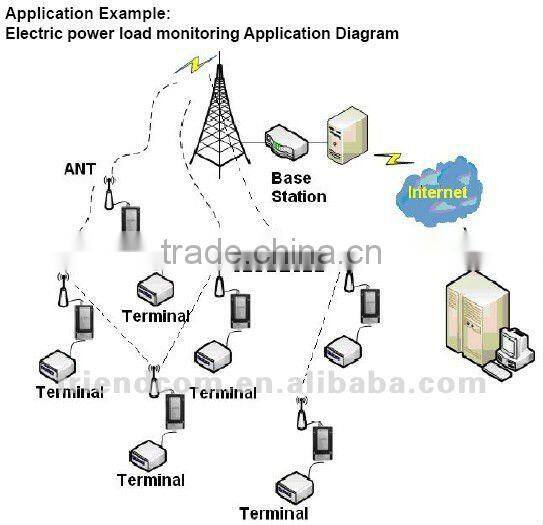

·Electric power load monitoring, distribution network automation, reactive power compensation and smart grid
·Industrial telemetry & wireless remote control
·Earthquake, weather, environmental protection and urban lighting control
·Vehicle tracking and asset tracking systems
·Water monitoring, waste water management and irrigation control
·Gas and oil flow monitoring
·Railway, police, army automation system
·Surveying DGPS/RTK wireless data link
·Aerial defense and fire alarm system
