136-174MHz VHF Data Radio Modem FC-301D

Specifications

FC-301/D Data Link Radio

FC-301/D Series of RF Link Modules utilize the latest technology in its design and manufacturing. Both the UHF and VHF models are PLL (Phase Lock Loop Synthesizer) / microprocessor controlled, and offer one to five watts of power with 16 channel capability. Multiple functions including AC audio coupling, 1200 to 9600 baud rates GMSK and FSK modulation capability are standard in these fully programmable wide bandwidth RF Link Module units.

Key features
CE and FCC approval
Synthesized frequency tuning
Operates from 9V to 15V DC
1-5W RF power programmable
16 channels frequency programmable
12.5KHz/25KHz channel spacing optional
Freq step 5KHz /6.25KHz compatible
PC Programming via Software

Applications
Industrial telemetry & wireless remote control
Gas and oil flow monitoring
Electricity, water, and gas utilities
Earthquake, weather, environmental protection and urban lighting control
Vehicle tracking and asset tracking systems
Water monitoring, waste water management and irrigation control
Railway, police, army automation system
Aerial defense and fire alarm system
Wireless Paging system

Technicalparameters

Frequency Band:UHF: 400MHz – 470 MHz
                         VHF: 136MHz – 174 MHz
Channel Spacing: 25KHz/12.5KHz optional
RF Output Power:1W - 5W Programmable
Modulation type :16K0F3E,8K5F3E
Intermediate Frequency: 45.1MHz & 455KHz
Number of Channels:16
Frequency Stability:±2.5ppm
RX Sensitivity(12dB Sinad) : UHF<-117 dBm, VHF <-118 dBm,
Operation Rating: Intermittent
5:5:90 ( TX: RX: Standby )
Power Supply: 12.5V DC Nominal Voltage
TX Current (5W RF Power, 12.5V): < 1.5A
Standby (Muted) Current : ≤40mA
Operating Temperature Range:from –30°C to +65°C
Dimensions: (120mm)L x (60mm)W x (20mm)H
Weight: 200 grams

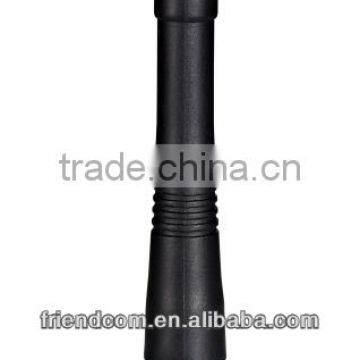

Antenna Impedance: 50 Ohm
Antenna Port: NC connector, female
