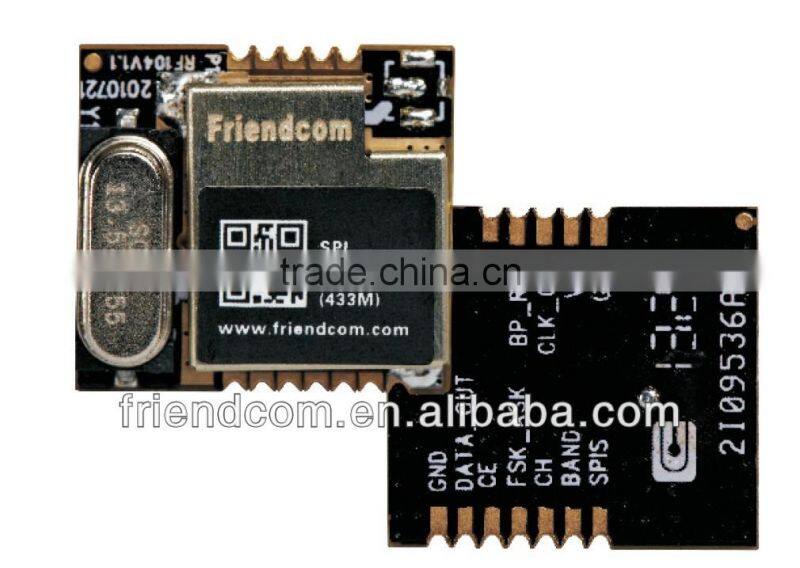

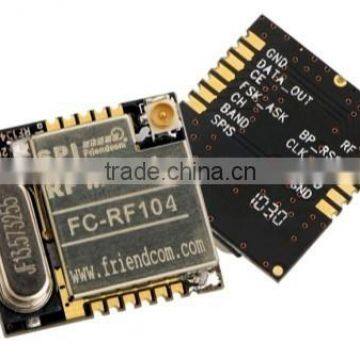

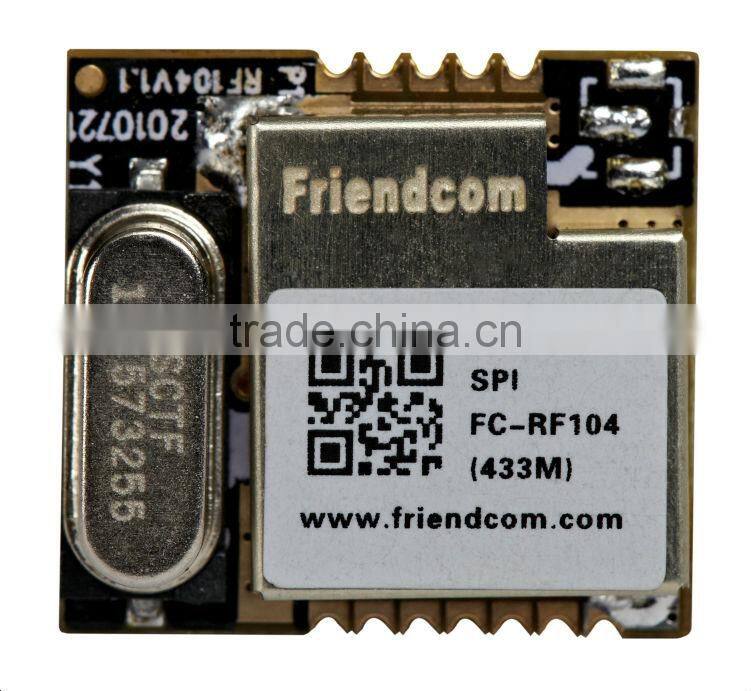

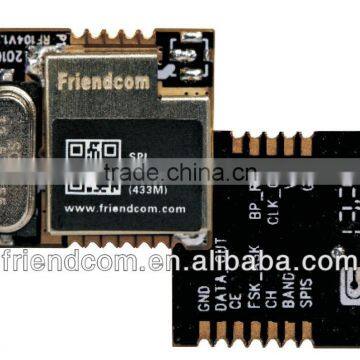

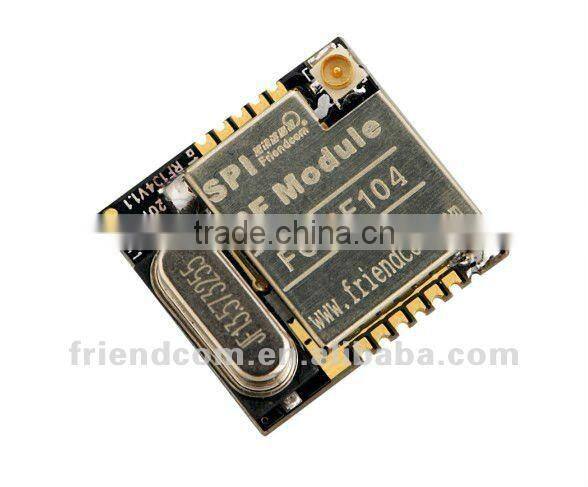

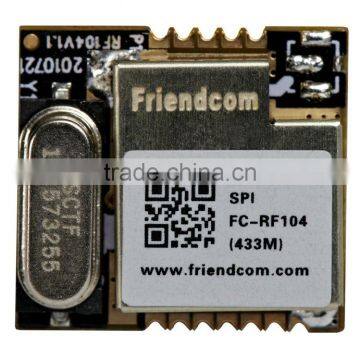

RF Receiver module FC-RF 104
Keyfeatures
Low-cost mini-size low power consumption.
Crystal-based high performance RFIC.
Works in wide voltage with high frequency stability.
work with FC-RF103 RF Transmitter module from Friendcom.
Applications
Intelligent home control system
Wireless RFID tag and Wireless sensor
Wireless toy
Wireless remote control
TPM (Tire Pressure Monitor).
Technical Specifications
Work frequency: SPI mode: 420-440MHz
Fixed frequency mode: 433.92MHz
Work voltage: DC2.2V-3.3V, typical 2.8V
RX current: <10mA
Sleep current: <1uA
RX sensitivity: -105dBm @20Kbps DEV = 12KHz BER = 1E-3
RF Data rate: Max 20kbps
Modulation: FSK/ASK
Program interface: SPI digital interface
Dimension: 17.6×16.1×5mm(L×W×H )
Work Temperature: -40°C--+85°C
Storage Temperature: -55°C--+125°C

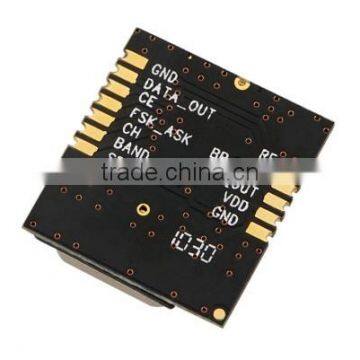

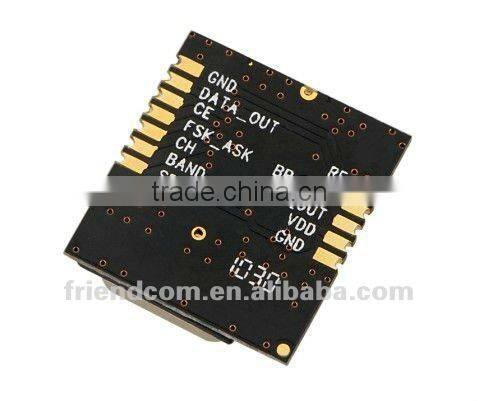

Pin Assignment
Name |
Description |
RF |
Antenna output pin: able to connect to user’s board with embedded antenna, or to connect with external antenna via IPX cable. |
RSSI |
Analog output. |
CLK_OUT |
Digital output,clock output |
VDD |
Power supply |
GND |
GND |
SPIS |
Digital input, mode selection: 0 for Fixed frequency mode; 1 for SPI mode |
BAND |
Digital input, frequency band selection: 0 for reserve , 1 for 433Mhz. |
SPI_CLK |
Digital input, SPI Clock input |
AFSK |
Digital input, modulation selection: 0 for FSK; 1 for ASK |
CE |
Digital input, 0: OFF; 1: ACTIVE. |
DATA_OUT |
Digital output, RX data output |
GND |
GND |
