Transmitter Module FSK/ASK
- 5000 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | Friendcom | |
| Model Number | FC-RF103 |
Product Description
Specifications
1.RF power: Max10 dBm2.RF Data rate:Max20 kbps
3.Modulation: FSK/ASK
4.Program interfaces: SPI
5.Dimension:17.6*16.1*5 mm

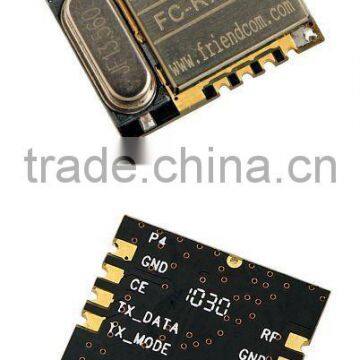

RF Transmitter module FC-RF 103
Keyfeatures
Low-cost mini-size low power consumption.
Crystal-based high performance RFIC.
Power adjustable.
Works in wide voltage with high frequency stability.
work with FC-RF104 RF Receiver module from Friendcom.
Applications
Intelligent home control system
Wireless RFID tag and Wireless sensor
Wireless toy
Wireless remote control
TPM (Tire Pressure Monitor).
Technical Specifications
Work frequency SPI mode: 420~440MHz programmable
Fixed frequency mode: 433.92MHz
Work voltage: DC2.2V--3.6V,typical 3V
Transmit current: 16mA@10dbm
Sleep current: <1uA
RF power: Max 10dBm
RF Data rate: Max 20kbps
Modulation: FSK / ASK
Program interfaces: SPI digital interface
Dimension: 17.6×16.1×5mm(L×W×H)
Work Temperature: -40°C--+85°C
Storage Temperature: -55°C--+125°C
Pin Description
Name | Description |
RF | Antenna output pin: able to connect to user’s board with embedded antenna, or to connect with external antenna via IPX cable. |
GND | GND |
VDD | Power supply |
SPIS | Digital input, mode selection: 0: Fixed frequency mode; 1: SPI mode |
TX_MODE | Modulation selection/SPI enable |
TX_DATA | TX Data/SPI Data |
CE | Enable / SPI Clock |
GND | GND |
