RF Module TX/RX

Specifications

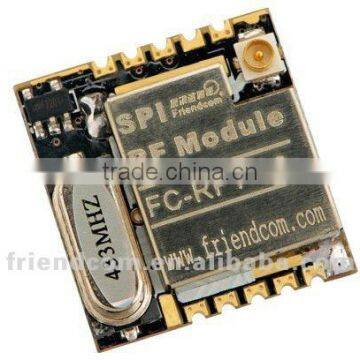

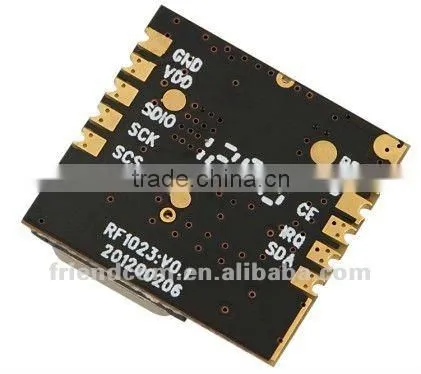

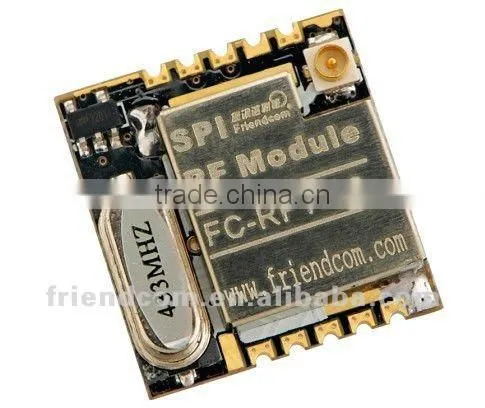

ISM Band Mini RF Transceiver Module FC-RF 1023

Product Description:

FC-RF1023 RF Transceiver is a compact surface-mounted half-duplex FSK module.It is a low-cost small-size wireless module with SPI and IIC for embedded applications.  The RF data rate can reach 250kbps. The module with optional FEC, CRC, Manchester encoding and data whiten can realize stable and reliable data transmission in busy ISM band. The module is completely shielded and designed for operation under the European and US radio regulations for license-free use.

Key Features

Surface-mounted half-duplex FSK module.

 With SPIand IIC for embedded applications.

Optional FEC, CRC, Manchester encoding.

Designed for operation under the European and US radio regulations for license-free use.

Technical Specifications

Frequency band: 315/ 433/470/868/915MHz optional

Operation voltage: DC3V(2.2--3.6V)

TX current: 90mA @ 20dBm

RX current: 14mA

Sleep current: 1uA

RF output power:  maximum 20dBm(0/5/10/15/20 dBm programmable )

RF data rate: 250kbps

Receiver sensitivity:    -120dBm@2Kbps     Dev = 8K;

-116dBm@10Kbps       Dev = 12.5K;   -110dBm@50kbps     Dev = 18.75K

-107dBm@100Kbps    Dev = 37.5K;    -104dBm@150Kbps Dev = 56.25K

Modulation mode: FSK

Program interfaces:  SPI and IIC digital interface

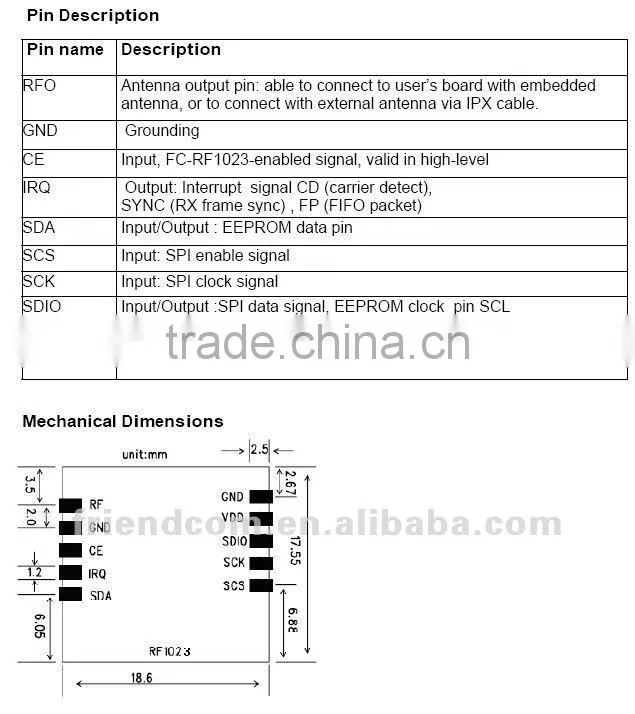

Dimension: 18.6×17.55×5mm

Operation temperature: -40°C--+85°C

Storage temperature:   -55 °C,+125 °C

RF TX/RX data module.
small-size for embedded applications.

 Applications

Intelligent home control system

Wireless RFID tag and Wireless sensor

POS terminal

Industrial data transmission

Wireless remote control

Wireless AMR for water, gas and hot, electricity and other meters.
