Help CenterRF Module Transmitter Module
Related Products
Specifications
1. Low-cost and small size2. Work frequency: 420-440MHz
3. RF data rate: 20kbps
4. Modulation: FSK/ASK
Product Description

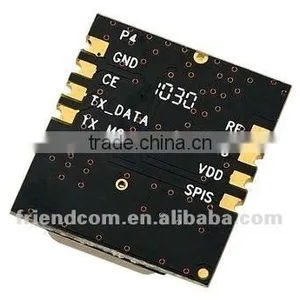

FC-RF103 is a low-cost mini-size low power consumption RF TX module. It has optional modulation FSK or ASK. It adopts crystal-based high performance RFIC. Its TX frequency can be programmable from 420MHz to 440MHz and TX power can be adjustable. It works in wide voltagewith high frequency stability. It is recommended to work with FC-RF104 RF RX modulefrom Friendcom.
Applications
• Intelligenthome control system
• Wireless RFID tag
• Wireless sensor
• Wireless toy
• Wireless remote control
• TPM(Tire Pressure Monitor)
Technical Specifications
Items |
Description |
Work frequency |
SPI mode: 420MHz~440MHz programmable Fixed frequency mode: 433.92MHz |
Work voltage |
DC2.2V--3.6V, typical 3V |
Transmit current |
16mA@10dbm |
Sleep current |
<1uA |
RF power |
Max 10dBm |
RF Data rate |
Max 20kbps |
Modulation |
FSK / ASK |
Program interfaces |
SPI digital interface |
Dimension |
17.6×16.1×5mm(L×W×H ) |
Work Temperature |
-40°C--+85°C |
Storage Temperature |
-55°C--+125°C |
