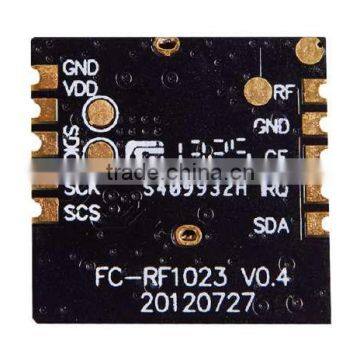

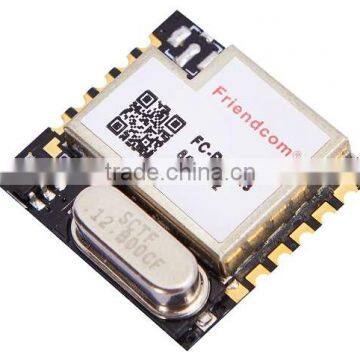

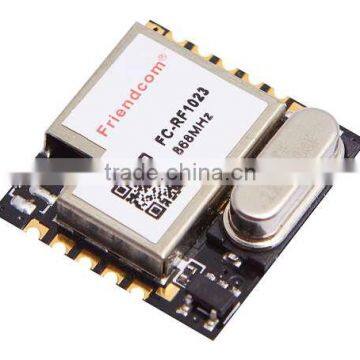

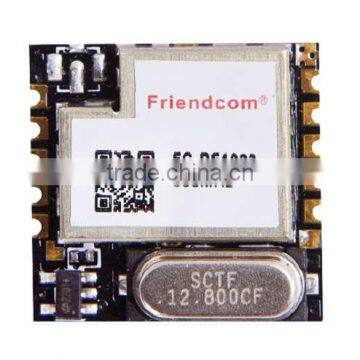

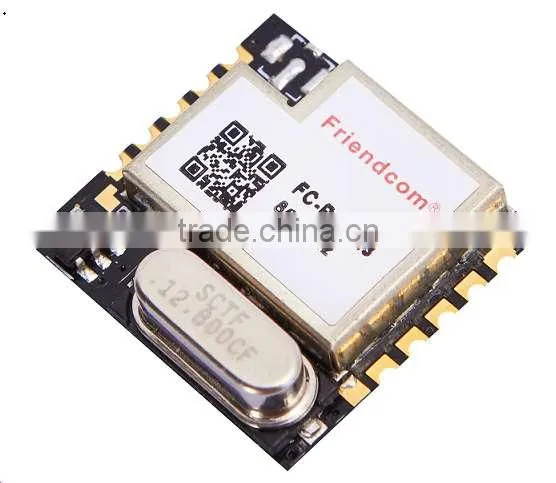

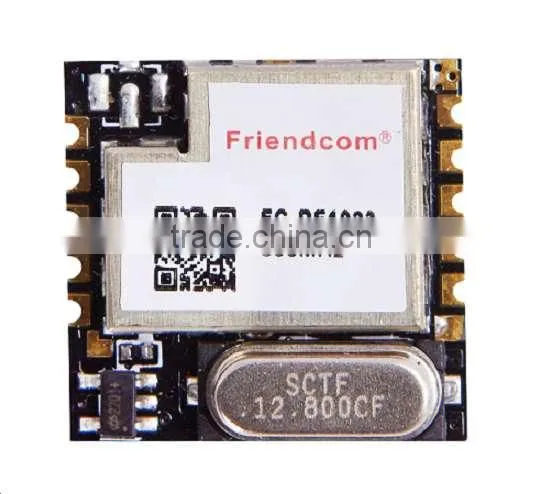

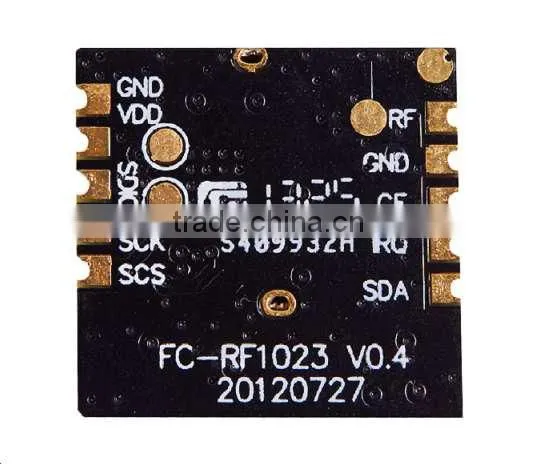

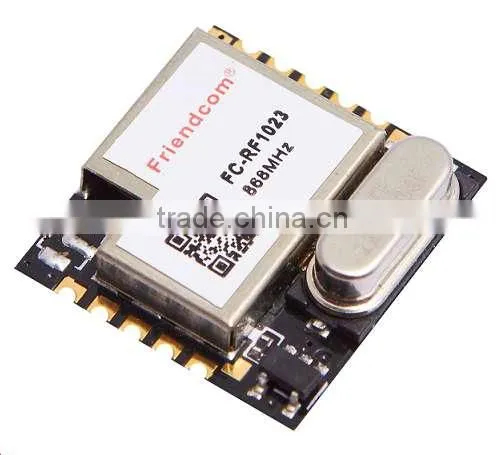

FC-1023 UHF 868MHz Transceiver ISM Free Band Wireless RF Module

FC-RF1023 868MHz transceiver  is low-cost  bidirectional Low Power RF Module  with SPI and IIC  digital interface. The max Power output is 100mW, The RF data rate can reach 100kbps and the max distances range over 600 meters within 100 mA Low Power Comsuption.

Technical Specifications
Frequency band:  868MHz
Operation voltage: DC3.0 V~3.6V
TX current: <100mA
RX current: <20mA
Sleep current: : <1uA
RF power: The max 20dBm (0dBm, 5dBm, 10dBm, 15dBm, 20dBm programmable)
RF data rate: Max 100kbps
Receiver sensitivity: -116dBm@2Kbps
-112dBm@10Kbps
Modulation mode: FSK
Program interfaces: SPI + IIC digital interface

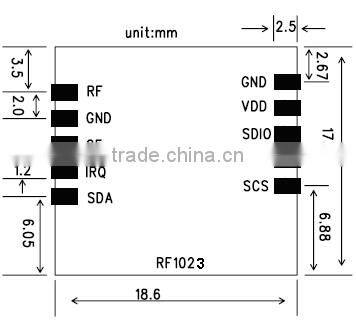

Dimension: 18.6×17.55×5mm (L×W×H)
Operation temperature: -30℃ ~ +70℃
Storage temperature: -40℃ ~ +85℃

Applications
Industrial data transmission

Wireless sensor

Wireless RFID tag
Smart home

AMR/AMI

Industrial wireless control
Wireless Controlled Toys

Automatic data collection system

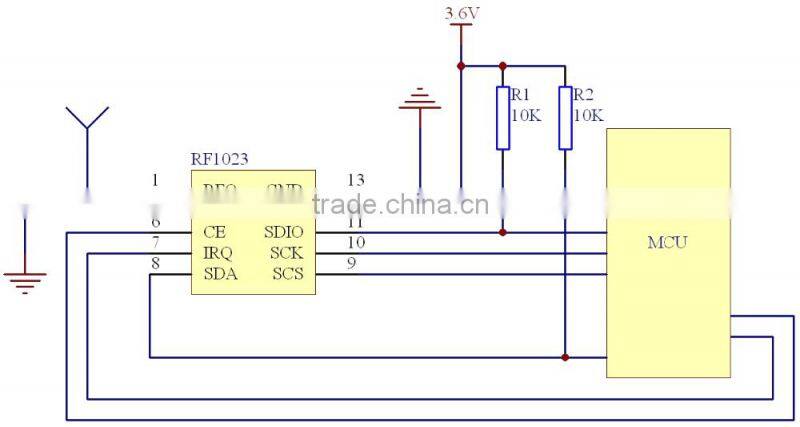

Typical Application

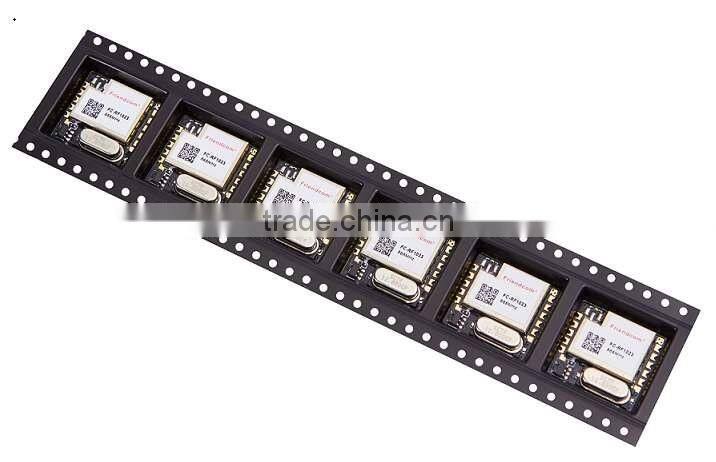

 Package
