WMB13-868 wireless M-Bus module follows the wireless M-BUS protocol. It has a UART interface for serial communication and configuration. The dimension is 13.7*25.4*3.4mm. WMB13-868 can work in S, T, R2 and C mode. It works in sleeping mode with super-low consumption power and be wakened up via serial port. By mounting the module onto the user board, it is easy to use through serial port communication protocol.UART interface Wireless M-bus Module WMB13-868 with meter reading application is a good choice for smart metering.

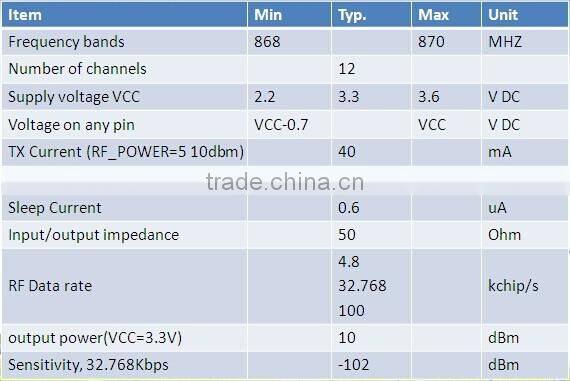

Technical Specification
Pin Assignment and Description
| Pin | Name | Describe |
| 1 | GND | Ground |
| 2,3,4,5,6,7 | RESERVED | For test and future extension, not connected |
| 8 | RTS | Receive flow control I, output, high : idle, low: busy. |
| 9 | CTS | Send flow control O, input high: idle , low: busy |
| 10 | RESERVED | For test and future extension, not connected |
| 11 | CONFIG | Reserved |
| 12 | GND | Ground |
| 13 | GND | Ground |
| 14 | VCC | POWER SUPPLY |
| 15 | GND | Ground |
| 16 | GND | Ground |
| 17 | RF | RF pin, connect with antenna |
| 18 | GND | Ground |
| 19 | GND | Ground |
| 20,21,22,23 | RESERVED | For test and future extension, not connected |
| 25 | LED1 | LED1 output. If not needed, not connected. Active high. |
| 26 | LED2 | LED2 output. If not needed, not connected. Active high. |
| 27 | RXD | SerialRX |
| 28 | TXD | SerialTX |
| 29 | RESET | Reset Pin (active in low) |
| 30 | GND | Ground |
