Specifications
1. Frequency: ISM band 433/475/868MHz2. Modulation: FSK
3. Dimension: 51*27*5mm
4. data rate:10Kbps
5. RF power:17.5--19dBm

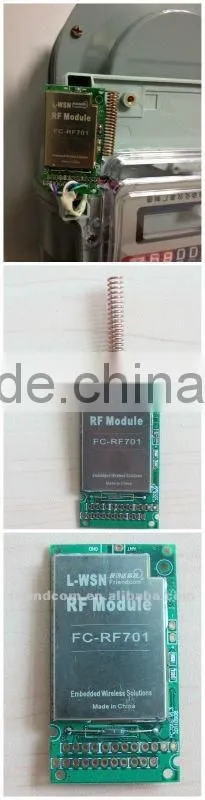

FC-RF701--RF Transceiver Module for Water, Gas and Heat Meter, Automated Meter Reading (AMR)
Key Features:

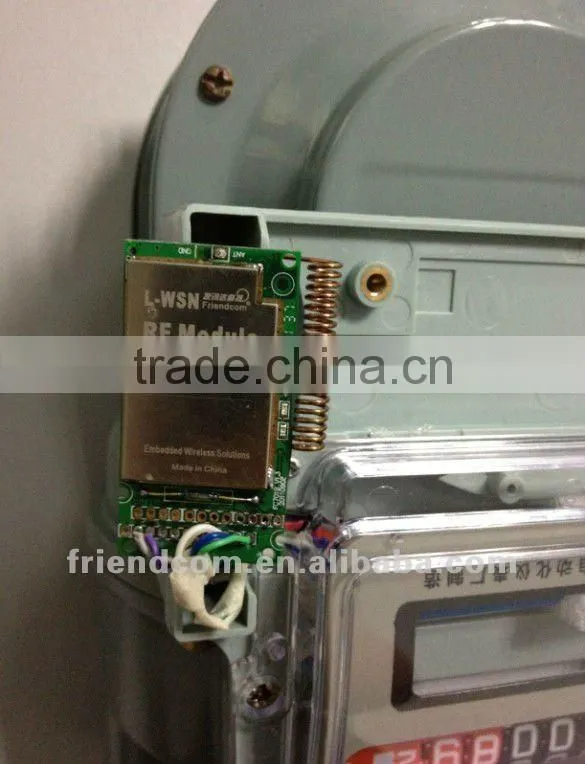

·FC-RF701 is a super-low consumption RF transceiver designed for battery-supplied applications such as water, gas and heat meter AMR
·It works in ISM band 433MHz, 475MHz or 868MHz
·Adopts timing sleep and wake-up detecting to guarantee the super-low consumption
Applications
·AMR for water, gas and heat meter
·Intelligent home control system
·Wireless sensor
·Automatic data collection system
·Wireless remote control
Technical specifications
Power supply | +2.9 to +3.6V DC |
Metering accuracy | 100L |
Work frequency | 433/470MHz |
RF power | 17.5 to 19dBm |
TX current | 70mA (minimum), 80mA (typical value), 90mA (maximum) |
RX sensitivity | -103dBm (minimum), -104dBm (typical value), -105dBm (maximum) |
RF data rate | 10Kbps |
RX current | 4.6mA (minimum), 4.8mA (typical value), 5.0mA (maximum) |
Sleep current | 4.5uA (minimum), 4.8uA (typical value), 5.1uA (maximum) |
Breath cycle | 1s |
Wake-up time | 4.8ms |
Modulation | FSK |
Channel number | 10 |
Point-to-point distance | 300m (minimum), 330m (typical value), 390m (maximum), in line of sight |
Operating temperature | -40°C (minimum), 25°C (typical value), 85°C (maximum) |
Humidity | 10 to 90%% RH, no condense |
Dimensions | 51 × 27 × 5mm |
Connection with external devices and MBUS extended board, MBUS extended board description.
