UHF Passive Rfid Card Reader Wifi With Rs232 Tcpip Usb and Rs485 Interfaces

Product mode explanation

General Description

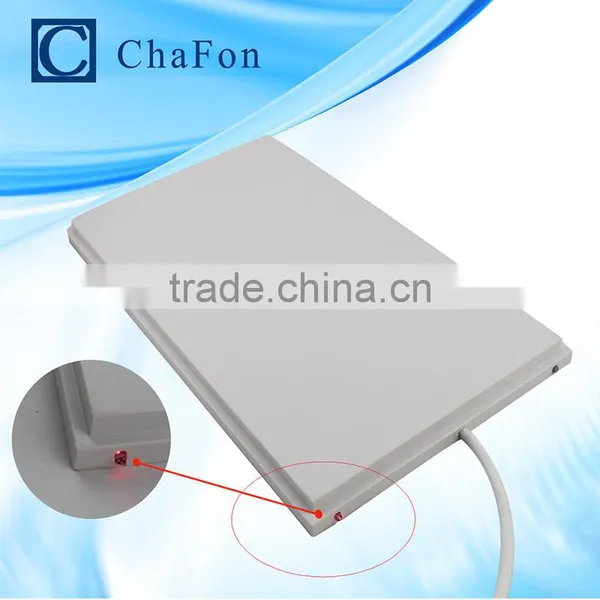

    CF-RU5114 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.

FEATURES

1. Self-intellectual property;
2. Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
3. 865~868MHz, 902~928MHz frequency band(frequency customization optional);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 30dbm(adjustable);
6. 12dbi antenna optional with effect distance up to 0-2m^*;
7. Support auto-running, interactive and trigger-activating work mode;
8. Low power dissipation with single +9 DC power supply;

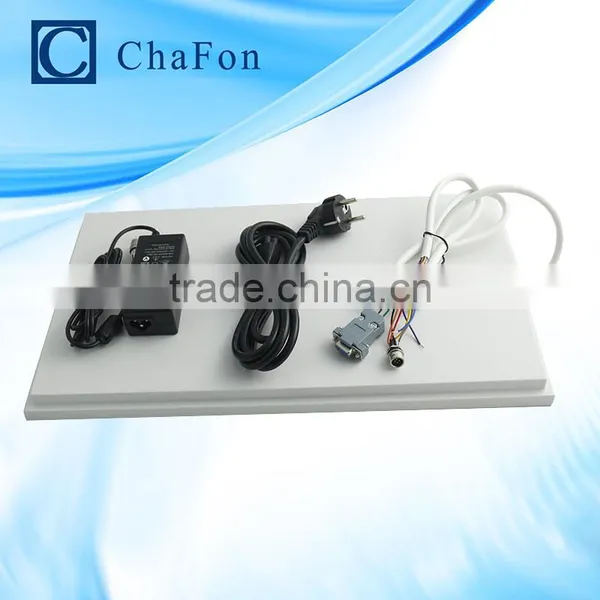

9. Support USB, RS232, RS485, Wiegand, TCP/IP interface;

* Effective distance depends on antenna, tag and environment.

CHARACTERISTICS

1. Absolute Maximum Rating

1. Electrical and Mechanical Specification

Under T_A=25℃,VCC=+9V unless specified

Interface
