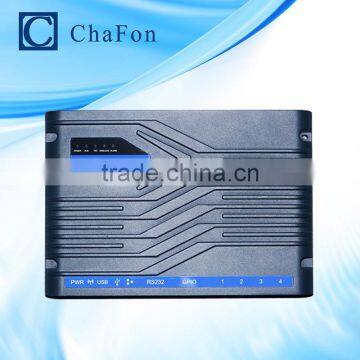

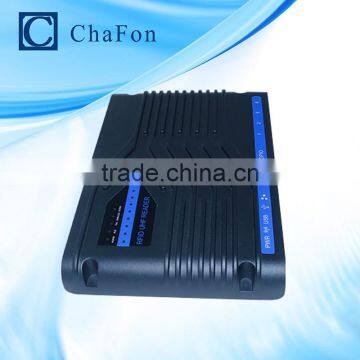

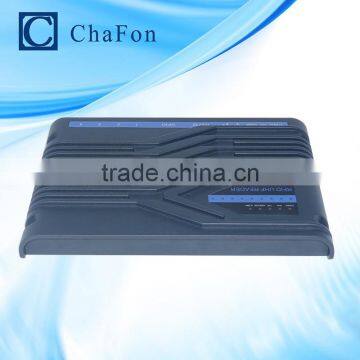

CF-RU6401 UHF RFID impinj r2000 4 Ports Reader
GENERAL DESCRIPTION
CF-RU6401 is a high performance UHF RFID fixed reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
FEATURES
l Self-intellectual property;
l Designed with Impinj R2000 RFID engine;
l Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;
l 860~868MHz/902~928MHz frequency band(frequency customization optional);
l FHSS or Fix Frequency transmission;
l RF output power up to 30dbm(adjustable);
l 4 TNC antenna port with antenna auto-tuning and failure-detection
l Support auto-running, answer, trigger and real-time-inventory work mode;
l Tag buffer size up to 800PCS (Max. 496bits EPC length);
l Support EPC and TID inventory;
l Low power dissipation with single +9 DC power supply;
l Support RS232, RS485, RJ45(TCPIP),USB with WiFi and POE optional;
l High reliability design;
l Support on-the-site firmware upgrading and optional Wince or Linux Operation System.
CHARACTERISTICS
l Absolute Maximum Rating
ITEM |
SYMBOL |
VALUE |
UNIT |
Power Supply |
VCC |
16 |
V |
Operating Temp. |
TOPR |
-10~+60 |
℃ |
Storage Temp. |
TSTR |
-20~+75 |
℃ |
l Electrical and Mechanical Specification
Under TA=25℃,VCC=+9V unless specified
ITEM |
SYMBOL |
MIN |
TYP |
MAX |
UNIT |
Power Supply |
VCC |
8 |
9 |
12 |
V |
Current Dissipation |
IC |
|
800 |
1500 |
mA |
Frequency |
FREQ |
902 |
902-928 |
928 |
MHz |
Size |
Size |
|
310x210x41 |
|
mm |
Similar products display
If you want to know more details about CF-RU6401 product information ,please come to below's link to check :
/productdetails.aspx?pid=513
