2107 New Arrival Uhf Reader Rfid Desktop Reader 860-960mhz Frequency

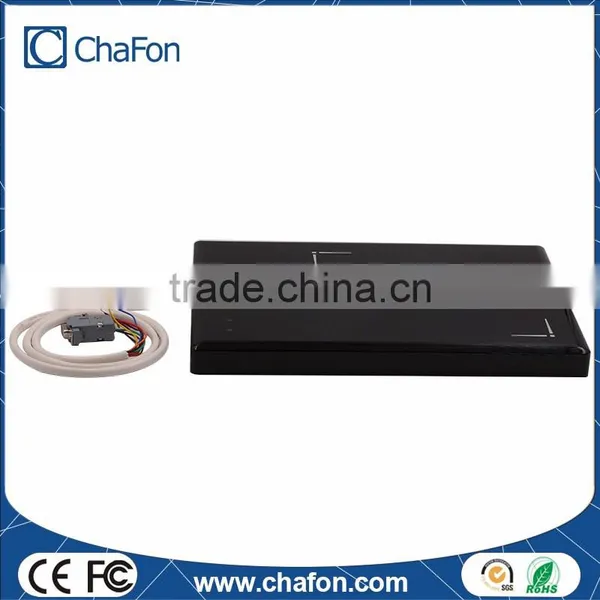

2107 New Arrival Uhf Reader Rfid Desktop Reader 860-960mhz Frequency photo-1

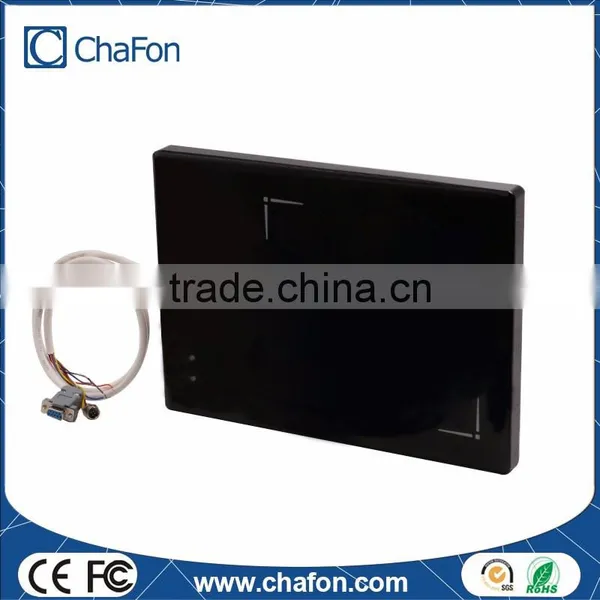

2107 New Arrival Uhf Reader Rfid Desktop Reader 860-960mhz Frequency photo-2

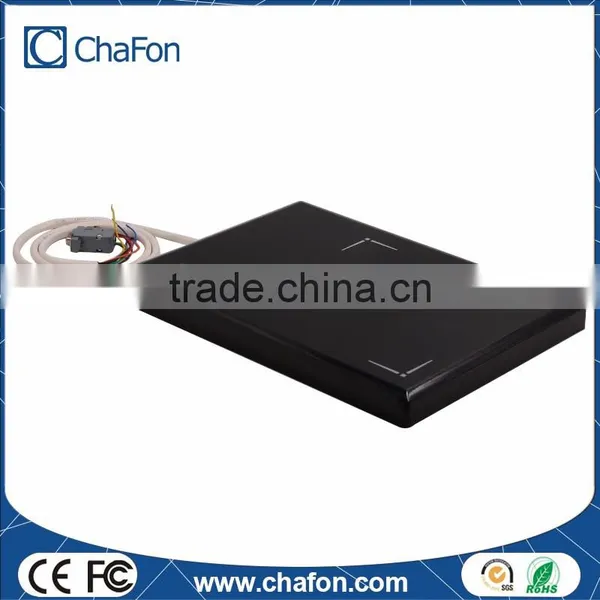

2107 New Arrival Uhf Reader Rfid Desktop Reader 860-960mhz Frequency photo-3

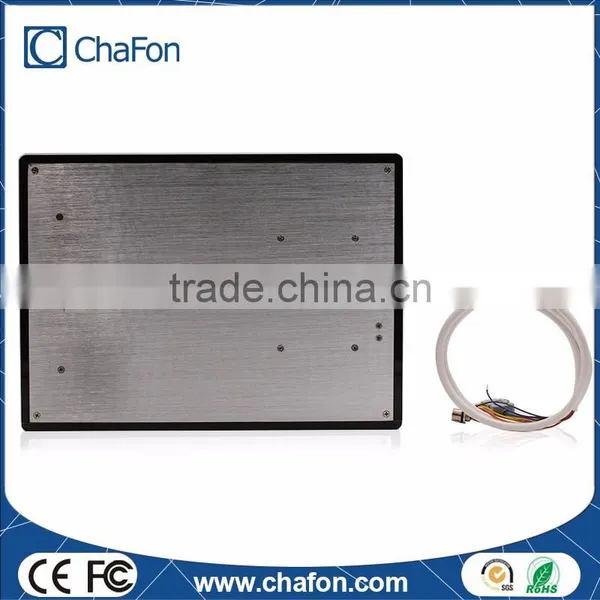

2107 New Arrival Uhf Reader Rfid Desktop Reader 860-960mhz Frequency photo-4

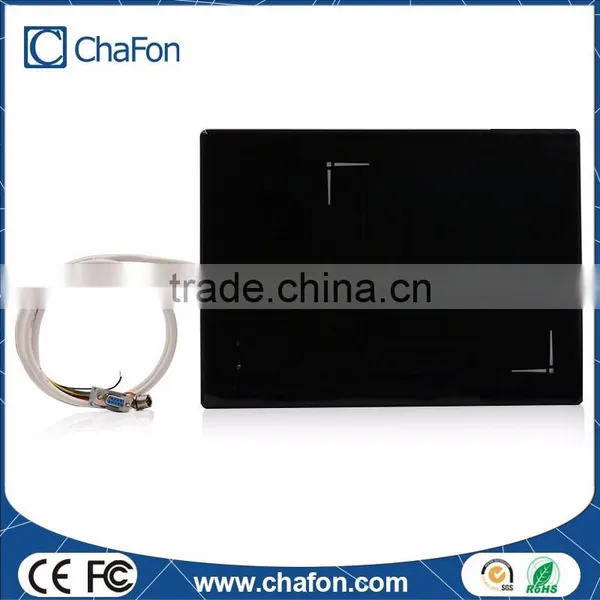

2107 New Arrival Uhf Reader Rfid Desktop Reader 860-960mhz Frequency photo-5

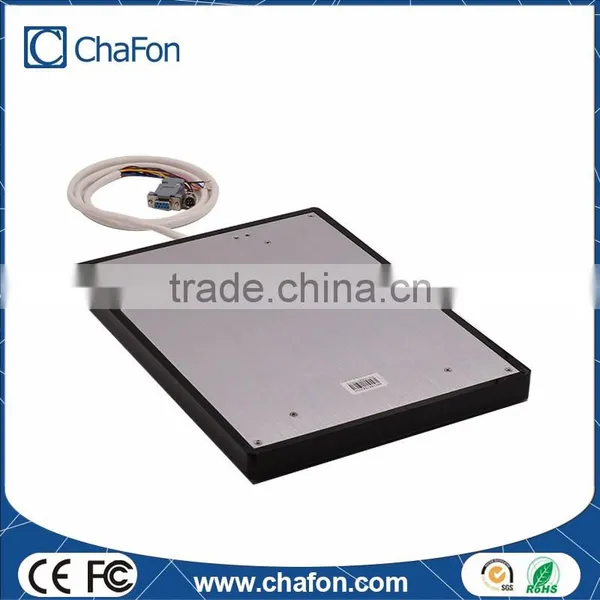

2107 New Arrival Uhf Reader Rfid Desktop Reader 860-960mhz Frequency photo-6
US$ 225 - 250 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Chafon
Model Number:
CF-RU5114
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Chafon
Model Number CF-RU5114
Product Description
Model number
CF-RU5114 (RS232/RS485/WG26 interface)
CF-RU5114U (USB interface)
Frequency
865~868MHz, 902~928MHz(optional)
Transimission
FHSS or Fix Frequency transmission
RF output power up to 30dbm(adjustable)
Read distance
 Effect distance up to 0-3m,
(depends on antenna, tag and environment)
Work mode
Support auto-running, interactive and trigger-activating work mode;
Power
RF output power up to 30dbm(adjustable);
Low power dissipation with single +9 DC power supply;
Interface
Support USB, RS232, RS485 and Wiegand interface;
Size
330mm*240mm*18mm


SCharacteristics:

Absolute Maximum Rating
ITEM
SYMBOL
VALUE
UNIT
Power Supply
VCC
16
V
Operating Temp
TOPR
-10~+55
Storage Temp
TSTR
-20~+75


Electrical and Mechanical Specification

Under TA=25℃,VCC=+9V unless specified
ITEM
SYMBOL
MIN
TYP
MAX
UNIT
Power Supply
VCC
8
9
12
V
Current Dissipation
IC
350
650
mA
Frequency
FREQ
902
928
MHz


Interface

Item
Comment
Red
+9V
Black
GND
Yellow
Wiegand DATA0
Blue
Wiegand DATA1
Purple
RS485 R+
Orange
RS485 R-
Brown
GND
White
RS232 RXD
Green
RS232 TXD
Grey
Trigger input(TTL level)
Application

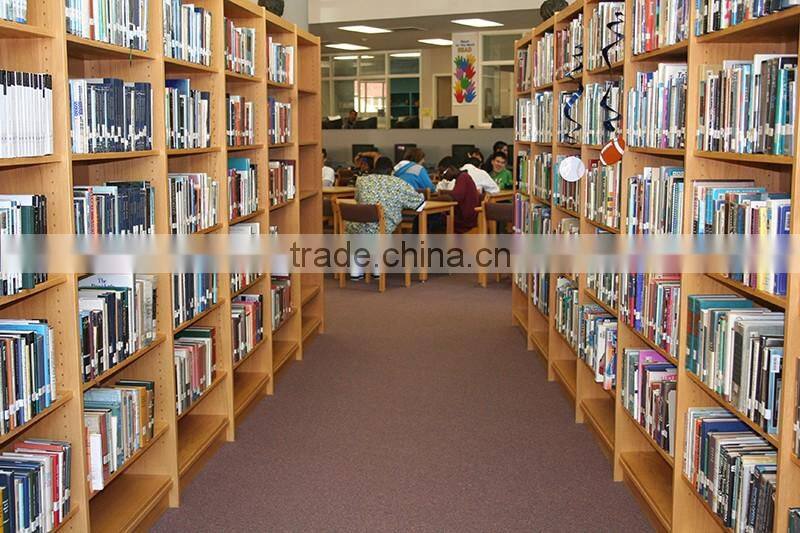

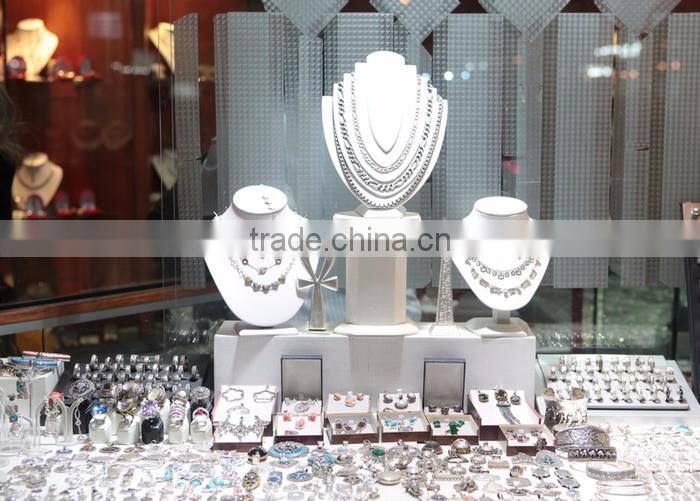

This reader can be used to different applications, such as book inventory , jewelry management etc.

Packing & Delivery

Packing:

1pc/box, box size is 42*33*13 cm,

the gross weight is 2.3 kg.

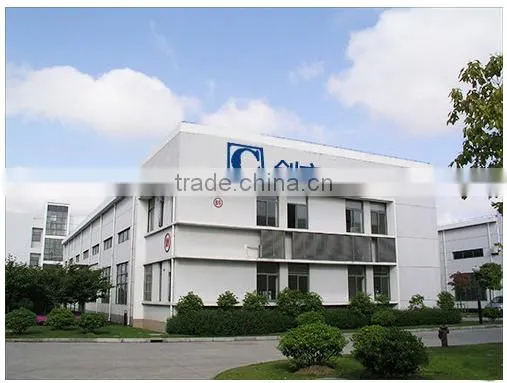

Our Company

Company profile:

Shenzhen Chafon Technology Co, Ltd. was founded in 2009,we are specialized in RFID products research and develop,and automatic identification technology application and promotion.Company products have won the United States FCC certification,European CE/ETSI certification, and China will WuWei CMII certification which products is exported globally.

Our Certificate:

FAQ

1. Are you manufacturer?

Yes, we are 10 years professional RFID hardware manufacturer.

2. What is your mainly products?
Our products mainly include RFID reader, RFID tag, RFID module and antennas,
include 125KHz , 13.56MHz and UHF three frequency.

3. What is your advantage?
We are professional RFID hardware solution provider,
we have strong technical team can provide after sale technical support online,
also can provide customized service.

4. How to place order to Chafon?
You can place order to us through Alibaba trade assurance order online.
We also can accept payment by TT,Western Union or Paypal.
