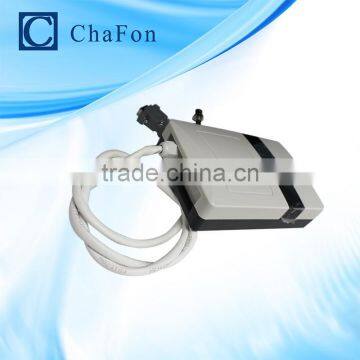

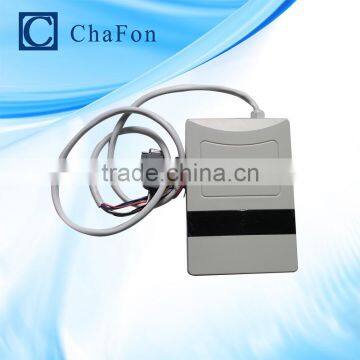

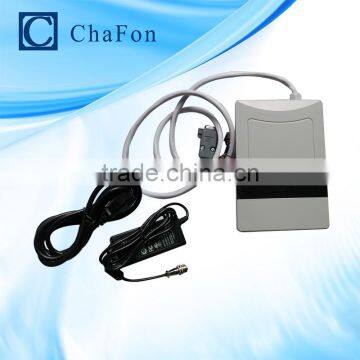

Uhf Rfid Desktop Reader With TCPIP and RS232 Interface for Optional

Product mode explanation

CF-RU5104 is a high performance Multiple Protocol UHF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system.

FEATURES

1.      Self-intellectual property;

2.      Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;

3.      902~928MHz/865~868Mhz frequency band(frequency customization optional);

4.      FHSS or Fix Frequency transmission;

5.      RF output power up to 30dbm(adjustable);

6.      Built-in wideband antenna with effect distance up to 0~100cm;

7.      Support auto-running and interactive work mode;

8.      Low power dissipation with single +9V DC power supply;

9.      Support RS232/RS485, TCP/IP, Weigand, interface;

10.   Output format and parameters configurable;

11.   Provide SDK and demo software to facilitate further development.

* Effective distance depends on protocol, tag and environment

CHARACTERISTICS

Absolute Maximum Rating

Electrical and Mechanical Specification

Under T_A=25℃,VCC=+9V unless specified

* Effective distance depends on protocol, tag and environment.
