860 960mhz rfid uhf reader long range 3m 6m reading distance
Product mode explanation
Model |
Interface |
CF-RU5109 |
Standard(RS232, RS485, Wiegand) |
CF-RU5109T |
Standard with tcp/ip |
Product Description

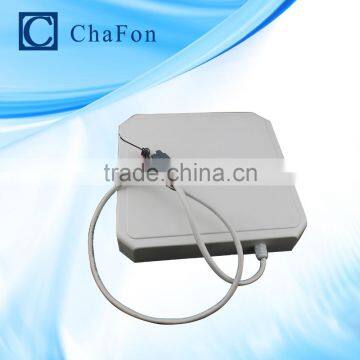

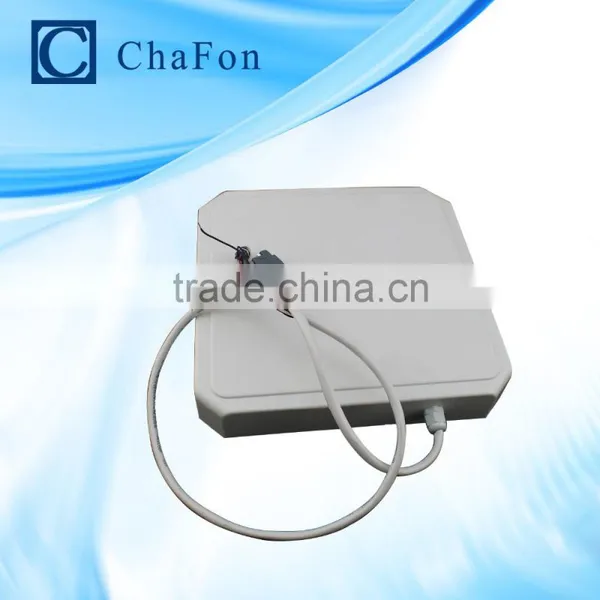

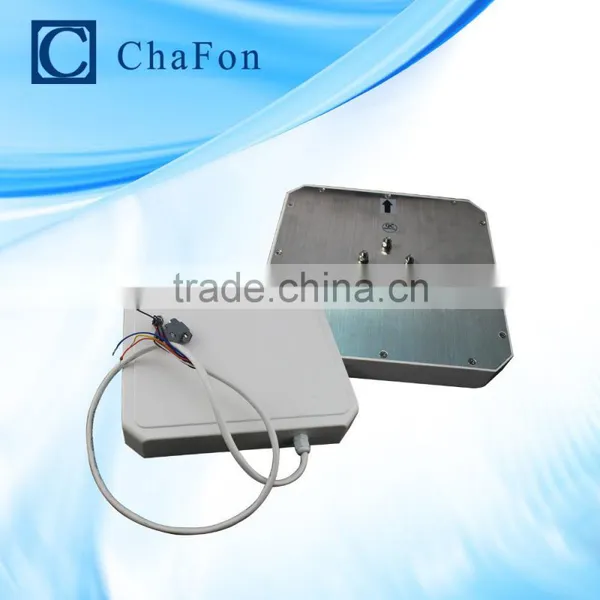

CF-RU5109 is a high performance UHF RFID integrated reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
Features
1. Self-intellectual property;
2. Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
3. 865~868MHz, 902~928MHz frequency band(frequency customization optional);
4. FHSS or Fix Frequency transmission;
5. RF output power up to 30dbm(adjustable);
6. 9dbi antenna (vertical ,circular optional)with effect distance up to 10m~12m*;
7. Support auto-running, interactive and trigger-activating work mode;
8. Low power dissipation with single +9V DC power supply;
9. Support RS232, RS485, WG26,TCP/IP interface;
* Effective distance depends on antenna, tag and environment.
Characteristics
1. Absolute Maximum Rating
ITEM |
SYMBOL |
VALUE |
UNIT |
Power Supply |
VCC |
16 |
V |
Operating Temp. |
TOPR |
-10~+55 |
℃ |
Storage Temp. |
TSTR |
-20~+75 |
℃ |
1. Electrical and Mechanical Specification
Under TA=25℃,VCC=+12V unless specified
ITEM |
SYMBOL |
MIN |
TYP |
MAX |
UNIT |
Power Supply |
VCC |
8 |
9 |
12 |
V |
Current Dissipation |
IC |
|
350 |
650 |
mA |
Frequency |
FREQ |
902 |
|
928 |
MHz |

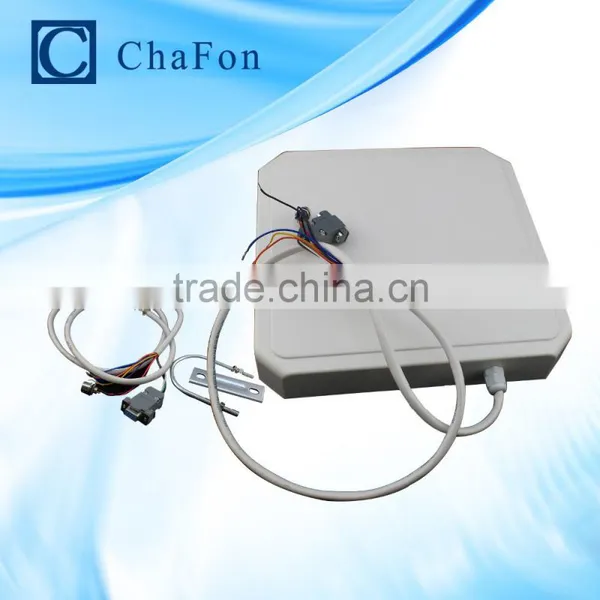

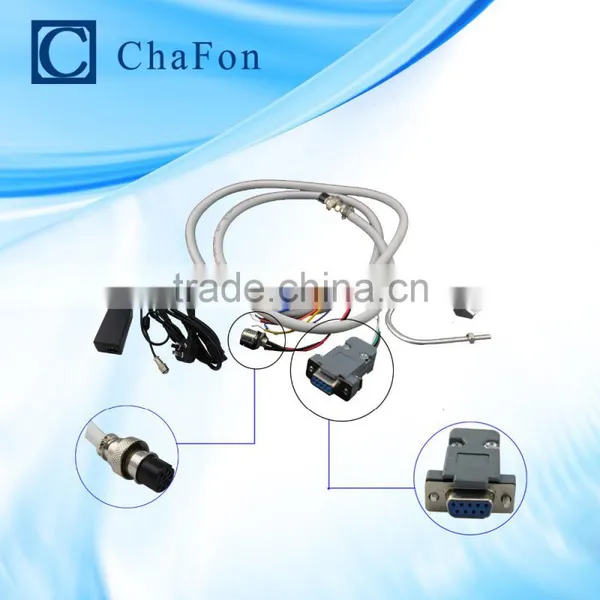

Interface
Item |
Comment |
Red |
+9V |
Black |
GND |
Green |
Wiegand DATA0(RS485 R+) |
White |
Wiegand DATA1(RS485 R-) |
Brown |
RS232 RXD |
Yellow |
RS232 TXD |
Grey |
Trigger input(TTL level) |
Blue |
GND |
