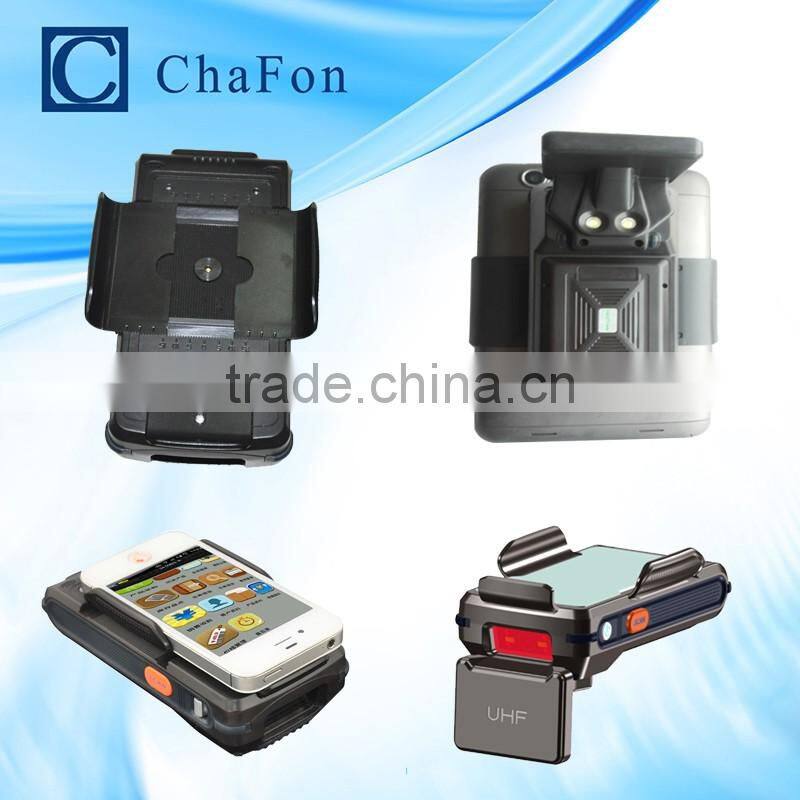

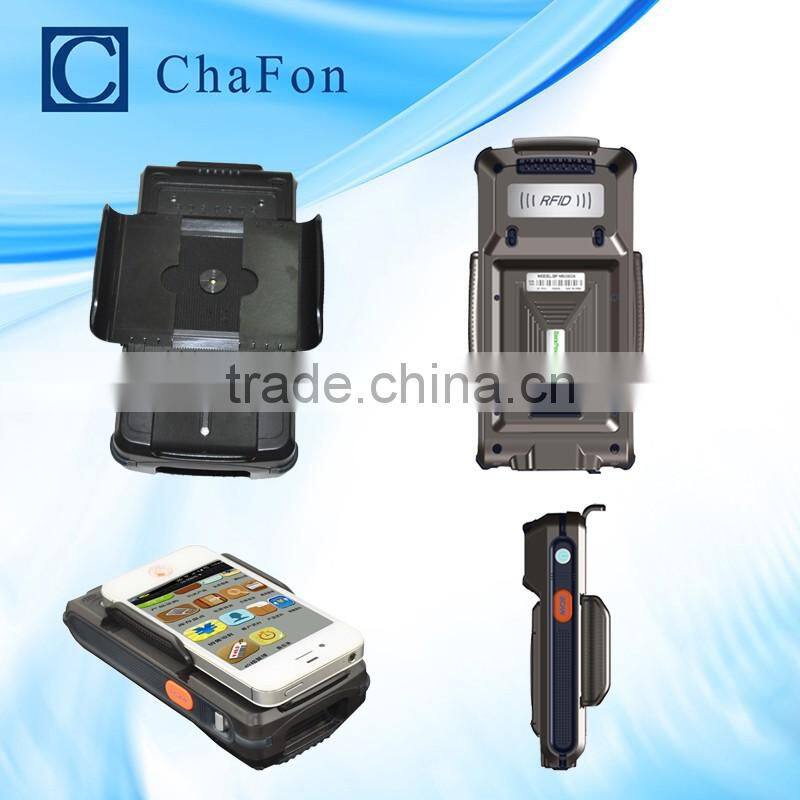

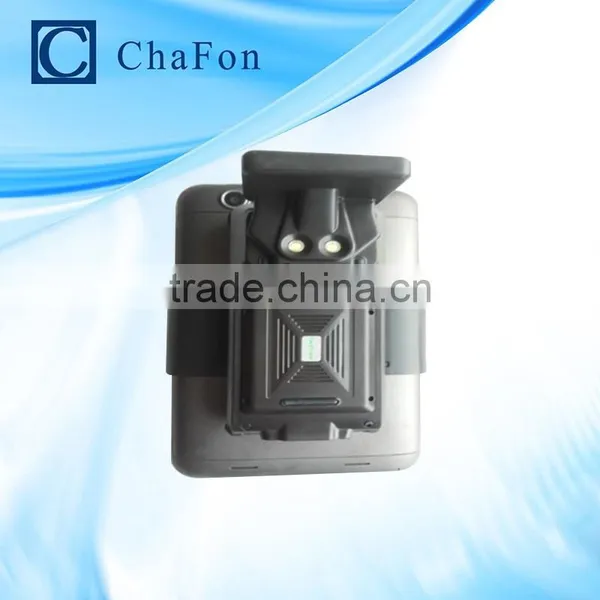

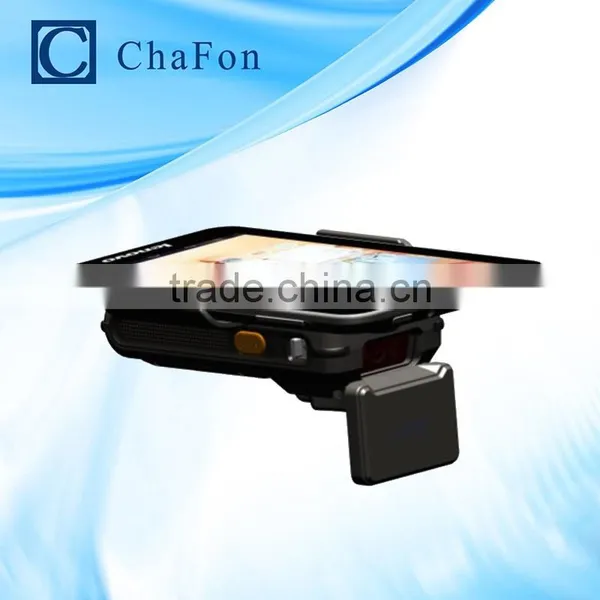

860-960MHZ EPC GEN2 Mobile Handheld Uhf Rfid Reader
US$ 220 - 250
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Chafon
Model Number:
CF-H601
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tablet USB IC Card and Magnetic Card Reader With MultifuntionalUS$ 220 - 260MOQ: 1 Piece -
High Performance Card Tablet Reader/writer With WiFi /BT/GPS/ CameraUS$ 220 - 260MOQ: 1 Piece
-
Supports NFC+ Fingerprint +print+ WiFi +BT+ GPS+ Camera Andriod Tablet ReaderUS$ 220 - 260MOQ: 1 Piece
-
3.5mm Audio Interface Uhf Vhf RadioUS$ 104 - 109MOQ: 1 Piece
-
High Sacn Rate Long Distance Bluetooth Rfid ReaderUS$ 220 - 250MOQ: 1 Piece
Place of Origin
Guangdong, China
Brand Name
Chafon
Model Number
CF-H601
860-960MHZ EPC GEN2 Mobile Handheld uhf rfid reader
Product Description
| Weight | 480g | ||
| Dimension | 138 x 66 x 31mm(Thin: 31, Thick: 34) | ||
| charging and discharging parameter | Input | 5.0±0.25V DC | |
| output | 5.0±0.25V DC | ||
| nominal capacity | 3000mAhlithium polymer battery (>500 charge cycles) | ||
| Standard Charge Circuit | <1A | ||
| Standard Charging method | CV(constant voltage5.0V)charging | ||
| charging time | ≤6 hours | ||
| max charging current | <1A | ||
| max discharge current | <1A | ||
| end-off voltage | 3.3V | ||
| Interface | Bluetooth HID & SPP | ||
| 1D Infrared | Reading Mode | CCD | |
| Resolution | 2500 | ||
| Scan Rate | 300 scan/sec | ||
| Symbologies | Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar,ITF-14 | ||
| Precision | ≥ 5mil(under the condition of PCS: 0.9,Code 39) | ||
| Scan Distance | Code128(10mil):30mm-285mm; Code39(5mil):90mm-195mm; Code39(10mil):50mm-325mm; EAN-13(10mil):60mm-265mm; EAN-13(15mil):65mm-350mm; | ||
| sensitivity | incline | ±65°@0°Roll and 0° Skew | |
| rotate | ±30°@0°Pitch and 0°Skew | ||
| declination | ±60°@0°Roll and 0° Pitch | ||
| outdoor scanning | proprietary technology-- able to read the code bar under sun light | ||
| current | maximum current | 100mA | |
| standby current | 45mA | ||
| RFID(optional) | Frequency | 13.56MHz/860-960Mhz | |
| Reading Mode | reading-writing or auto-induction just for Reading | ||
| Supported Standards | ISO14443A/EPC GEN2 | ||
| Working distance | >30mm | ||
| working current | <100mA | ||
| Max Power Dissipation | 0.33W | ||
| Environment | Operating temperature | 0℃~45℃ | |
| Storage Temperature | -10℃~ +45℃ | ||
| Humidity | 5% - 95% ( Non-condensing ) | ||
| Clip | LED display | 4LED to show charging and discharging active status and electrical quantity:2LED show the working mode of Bar codes and Bluetooth working mode | |
| Auto charging | Automatically charging without pressing any key when inserting into the interface by USB cable. | ||
| Auto Detect | Automatically detect whether to charge when inserting into the interface by USB cable. | ||
| priority of charge | Priority of charging mobile phone, then charging the internal battery. | ||
| UPS function | When external power supply breaks off, its internal battery with keep charging mobile phone. | ||
| battery overcharge protection | Dual hardware protection: >4.2±0.04V | ||
| Battery over discharge alarm voltage | HW: 2.8±0.1V & SW: <3.3V; Priority to enable software protection | ||
| Output Current Limiting Threshold | ≤ 1.2A | ||
| short-circuit protection | HW protection | ||
| Standard Configuration | Micro USB Cable | ||
| Left and right buckle | |||
| front buckle (two pieces with different height) | |||
| skid and scratch resistant cloth 2pcs | |||
| Warranty Card | |||
| Certification | |||
| Instruction Book | |||
| Options | 5V/2A & 5V/1A two separate output high-quality car charger (use cell phone charger for both mobile phone and back splint when indoor, and use car charger when outdoor. The car charger can also charges tablet PC. | ||
| Sling | |||
| AC charger | |||
| Cross Screwdriver | |||
| pocke | |||
