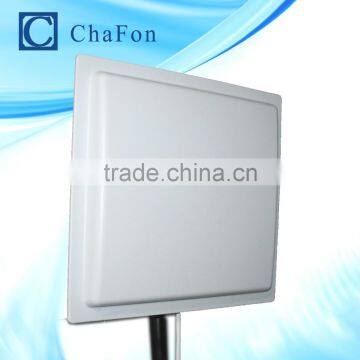

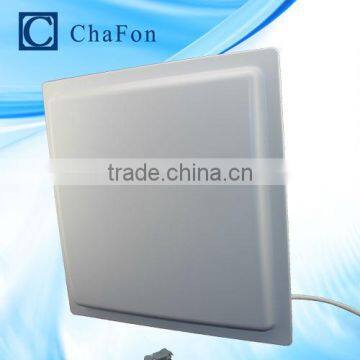

rfid long range reader uhf directional antenna
Product description
Model | Interface |
CF-RU5112 | Standard(RS232, RS485, Wiegand) |
CF-RU5112T | Standard with tcp/ip |
CF-RU5112w | Standard with Wifi |
CF-RU5112 is a high performance UHF RFID reader. It is designed upon fully self-intellectual property. Based on proprietary efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, anti-counterfeit and industrial production process control system.
• Self-intellectual property;
• Support ISO18000-6B, ISO18000-6C(EPC C1G2) protocol tag;
• 902~928MHz frequency band(frequency customization optional);
• FHSS or Fix Frequency transmission;
• RF output power up to 30dbm(adjustable);
• 12dbi antenna optional with effect distance up to 8m-15m*;
• Support auto-running, interactive and trigger-activating work mode;
•Low power dissipation with single +9 DC power supply;
• Support RS232, RS485, Wiegand,TCP/IP interface;
* Effective distance depends on antenna, tag and environment.
Characteristics
l Absolute Maximum Rating
ITEM | SYMBOL | VALUE | UNIT |
Power Supply | VCC | 16 | V |
Operating Temp. | TOPR | -10~+55 | °C |
Storage Temp. | TSTR | -20~+75 | °C |
l Electrical and Mechanical Specification
Under TA=25°C,VCC=+9V unless specified
ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
Power Supply | VCC | 8 | 9 | 12 | V |
Current Dissipation | IC |
| 350 | 650 | mA |
Frequency | FREQ | 902 |
| 928 | MHz |
Interface
Item | Comment |
Red | +9V |
Black | GND |
Yellow | Wiegand DATA0 |
Blue | Wiegand DATA1 |
Purple | RS485 R+ |
Orange | RS485 R- |
Brown | GND |
White | RS232 RXD |
Green | RS232 TXD |
Grey | Trigger input(TTL level) |
Other service
1.The reader come with the completed English SDK,demo software,user manual and source code,and these documents will help you develop the software.
2.When you buy our reader,we can provide free card or tag to you for distance testing.
3.This is a UHF long range reader,with 12dBi antenna built-in,the read range can up to 10~12m if use our standard UHF cards or UHF tags at the normal environment.It mainly used for parking application.
4.More exact products information,please come to check below link:
(uhf card) /productdetails.aspx?pid=450
(UHF windshield tags) /productdetails.aspx?pid=512
