UHF 12dBi Vertical Antenna Rfid Made by ABS Material Can Connect With UHF Fixed Reader Used for Warehouse Management

UHF 12dBi Vertical Antenna Rfid Made by ABS Material Can Connect With UHF Fixed Reader Used for Warehouse Management photo-1
UHF 12dBi Vertical Antenna Rfid Made by ABS Material Can Connect With UHF Fixed Reader Used for Warehouse Management photo-2
UHF 12dBi Vertical Antenna Rfid Made by ABS Material Can Connect With UHF Fixed Reader Used for Warehouse Management photo-3
UHF 12dBi Vertical Antenna Rfid Made by ABS Material Can Connect With UHF Fixed Reader Used for Warehouse Management photo-4
UHF 12dBi Vertical Antenna Rfid Made by ABS Material Can Connect With UHF Fixed Reader Used for Warehouse Management photo-5
US$ 52 - 58 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Chafon
Model Number:
CF-RA1201
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Chafon
Model Number CF-RA1201

UHF 12dBi vertical antenna rfid made by ABS material can connect with UHF fixed reader used for warehouse management

Product Description

Product Description

Model

CF-RA1201

Electrical specifications

Frequency range (MHz)

902-928,865~868

Polarization

Horizontal or Vertical

Gain(dBi)

12

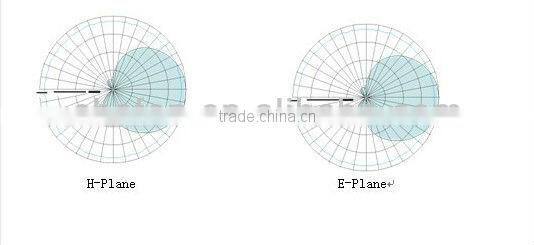

Half-power beam width(°)

Hor:40 Ver:40

Front-to-back ratio(dB)

≥25

Impedance(Ω)

50

VSWR

≤1.3

Maximum input power(W)

50

Lightning protection

DC Ground

Mechanical specifications



Connector

N-female

Connectorposition

Bottom

size(mm)

450×450×40

Packing siz(mm)

480×480×55

Antenna weight(kg)

2

Packing weight(kg)

2.5

Wind loading aream^2)

≤0.2

Rated wind velocity(m/s)

60

Reflector material

Aluminum

Radome material

ABS

Radome color

White

Operating temperature(°C)

-40~70

Mounting hardware(mm)

φ 40~50















































































UHF 12dBi vertical antenna rfid made by ABS material can connect with UHF fixed reader used for warehouse management



Application

This antenna can conenct with our uhf long range fixed reader,it can be applied in warehouse,asset tracking,etc.



Other Support

1.Product link address: /productdetails.aspx?pid=419

2.About the specific datasheet for our fixed reader,please come to below link to check:

/productdetails.aspx?pid=381

3.Besides,about the UHF antennas,we also have other types according different shape,size,gain and reading range,if you want to know about much more detailed information,please come to visit below link: /product.aspx?cid=266
