10~15m long range 12dBi vertical vhf/uhf car antenna
Product Description
Model |
CF-RA1201 |
Electrical specifications | |
Frequency range (MHz) |
902-928,865~868 |
Polarization |
Horizontal or Vertical |
Gain(dBi) |
12 |
Half-power beam width(°) |
Hor:40 Ver:40 |
Front-to-back ratio(dB) |
≥25 |
Impedance(Ω) |
50 |
VSWR |
≤1.3 |
Maximum input power(W) |
50 |
Lightning protection |
DC Ground |
Mechanical specifications |
|

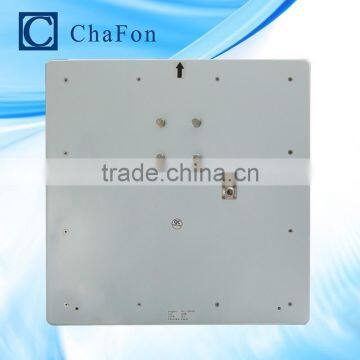

Connector |
N-female |
Connectorposition |
Bottom |
size(mm) |
450×450×40 |
Packing siz(mm) |
480×480×55 |
Antenna weight(kg) |
2 |
Packing weight(kg) |
2.5 |
Wind loading aream^2) |
≤0.2 |
Rated wind velocity(m/s) |
60 |
Reflector material |
Aluminum |
Radome material |
ABS |
Radome color |
White |
Operating temperature(°C) |
-40~70 |

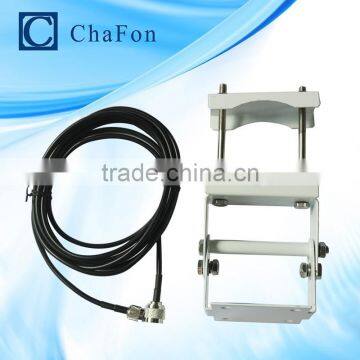

Mounting hardware(mm) |
φ 40~50 |
Application
This antenna can conenct with our uhf long range fixed reader,it can be applied in warehouse,asset tracking,etc.
Other Support
1.Product link address: /productdetails.aspx?pid=419
2.About the specific datasheet for our fixed reader,please come to below link to check:
/productdetails.aspx?pid=381
3.Besides,about the UHF antennas,we also have other types according different shape,size,gain and reading range,if you want to know about much more detailed information,please come to visit below link: /product.aspx?cid=266
