13.56mhz iso 15693 rfid reader rs232
Product description:

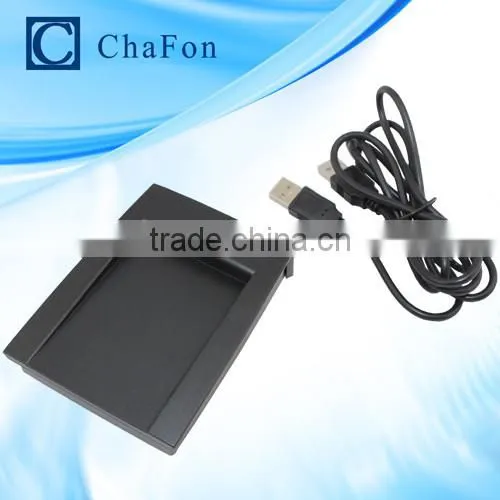

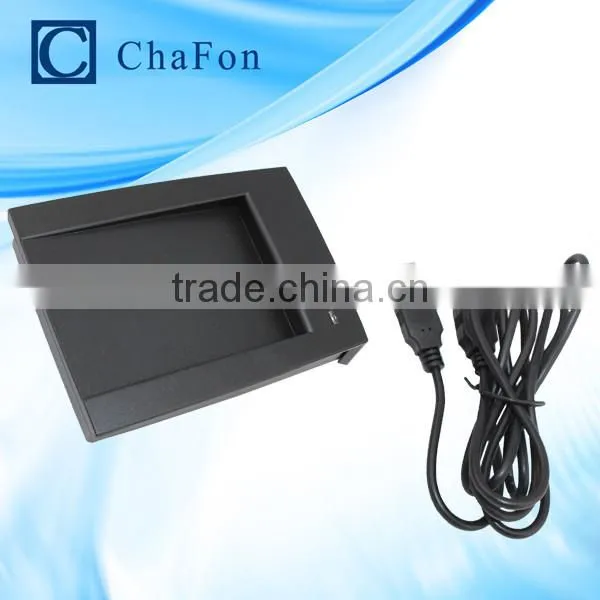

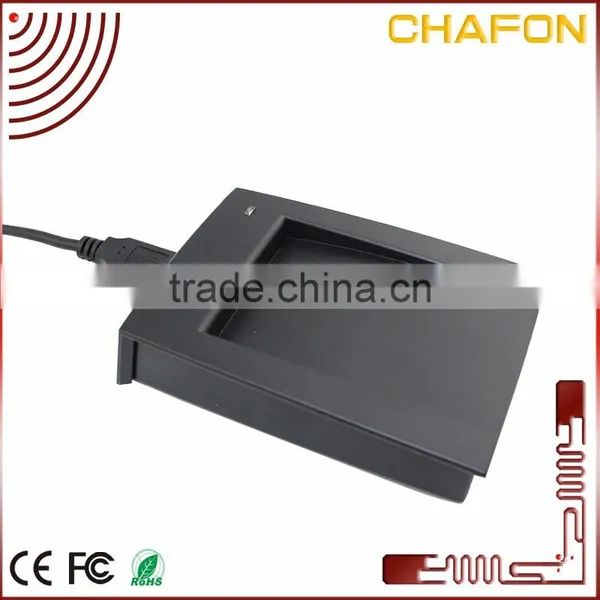

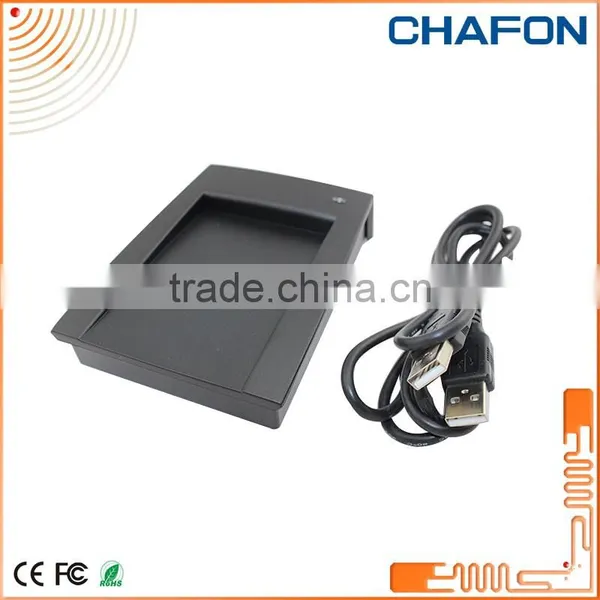

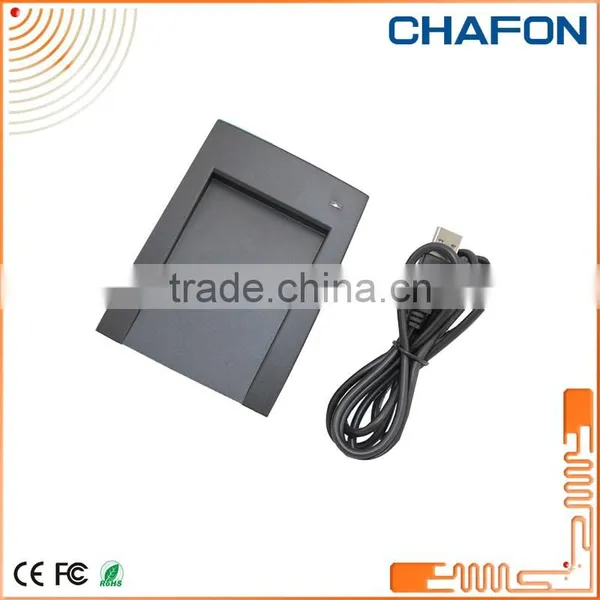

CF-RH330 series desktop readers are smart modules without touching based on international standard agreement ISO14443A, ISO14443B and ISO15693.
CF-RH330 are equipped with high capability chip, processor, security and electric monitor. The reader can communicate with PC through USB/RS232 interface.
CF-RH330 are of high capability, anti-jamming, small size and good quality, which brings more convenience.
Product mode explanation:
Model | Standard | interface | color |
CF-RH331 | IS014443A | U(USB)/R(RS232) | B(black)/W(white) |
CF-RH332 | IS014443A/B | U(USB)/R(RS232) | B(black)/W(white) |
CF-RH333 | ISO15693 | U(USB)/R(RS232) | B(black)/W(white) |
CF-RH334 | ISO/IEC14443A/B,ISO15693 | U(USB)/R(RS232) | B(black)/W(white) |
Capability specifications
Name | HF Reader&Write |
Dimension | 110x80x25mm |
Standard | ISO14443A/B,ISO15693 optional |
Support | MIFARE® Classic 1K; MIFARE® Classic 4K |
Frequency | 13.56MHz |
Speed | 106kbit/s |
Baud Rate | 9600-115200 bit/s |
Power Supply | +5V DC |
Consumed Current | < 80mA |
Operating Distance | 50--70mm |
Interface | RS232;USB |
Status Indication | 1pcs LED;1pcd buzzer |
Service Temperature | -10℃ ~ +70℃ |
Store Temperature | -20℃ ~ +80℃ |
Product application
Widely used in access control, attendance, conference attendance, medical insurance, hotels, highways, petrol stations, parking, public transportation, such as toll collection system.
1. Are you manufacturer?
2. What is your mainly products?
Our products mainly include RFID reader, RFID tag, RFID module and antennas,
3. What is your advantage?
We are professional RFID hardware solution provider,
we have strong technical team can provide after sale technical support online,
also can provide customized service.
4. How to place order to Chafon?
You can place order to us through Alibaba trade assurance order online.
We also can accept payment by TT,Western Union or Paypal.
