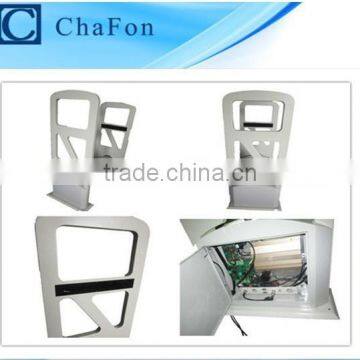

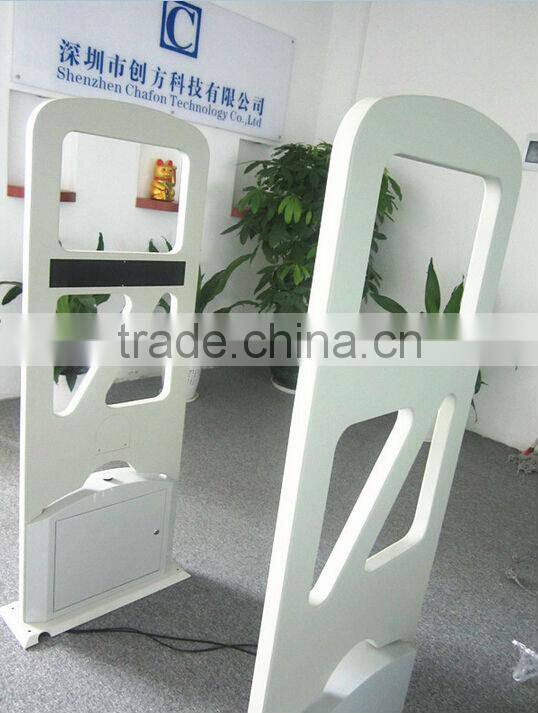

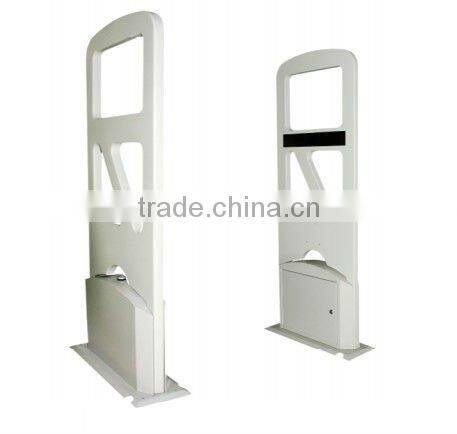

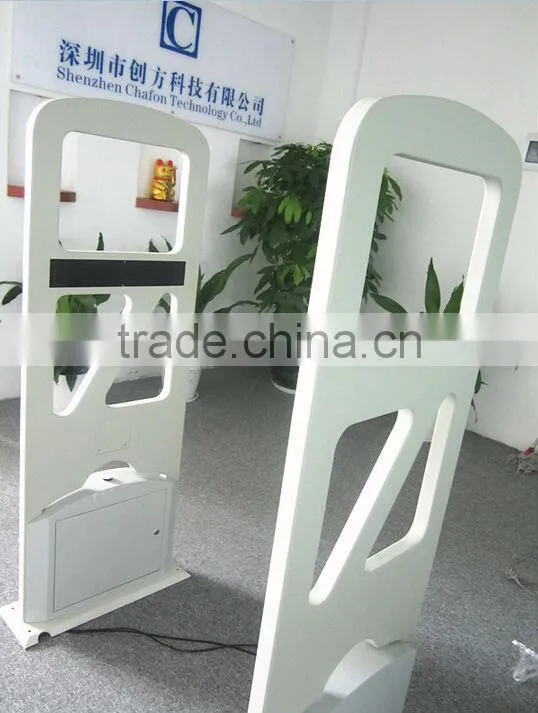

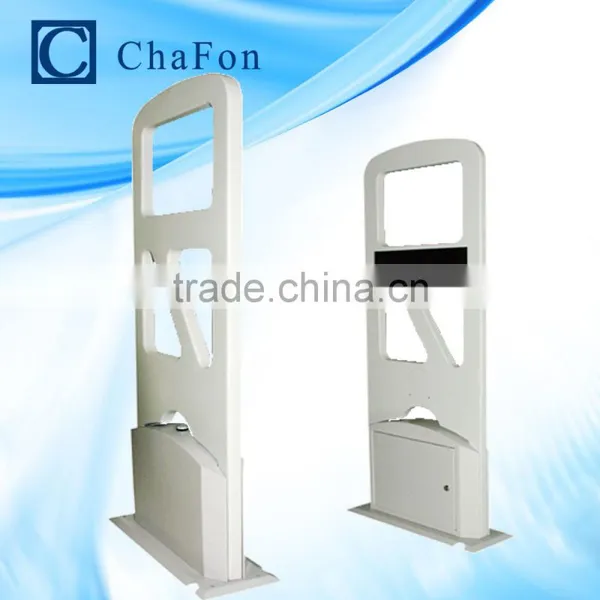

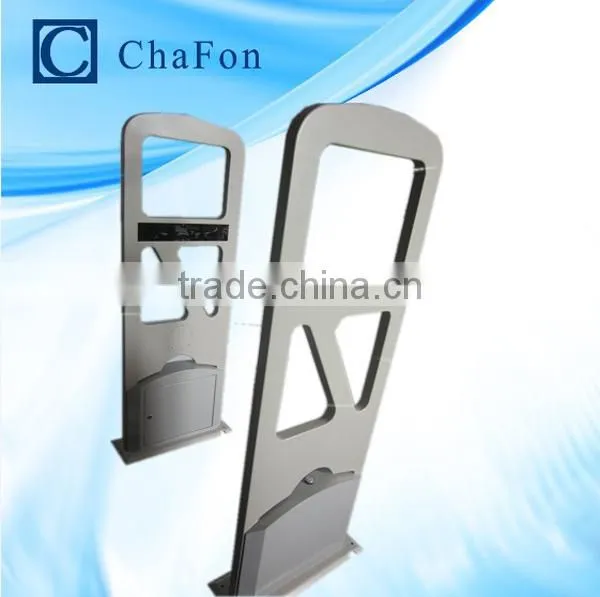

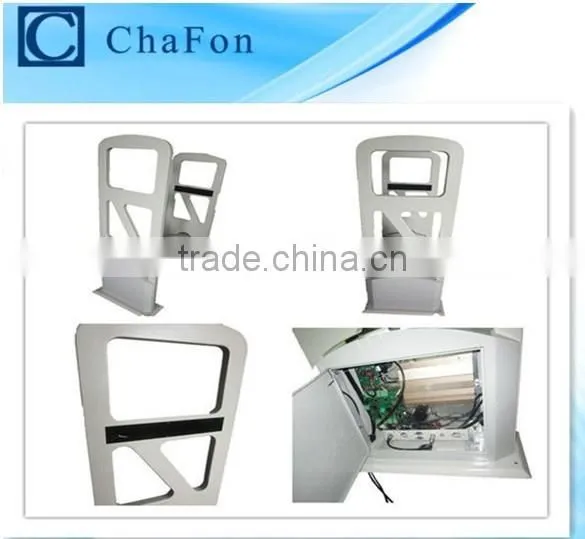

Intelligent RFID Card Reader Security Turnstile Gate For Entrance Security
GENERAL DESCRIPTION
HF Gate Device “CF-CH900” are designed for high performance channel management applications. The series support fast tag anti-collision and read/write operations (include EAS function of NXP tag). Equipped with main/auxiliary channel antenna, 4 line infrared motion detection sensor, control board and standard RS232, RS485 serial communication ports and RJ45 (TCP/IP) network port, the series are top choice for open mass flow RFID applications, such as: Conference Attendance, Access Control, Library Entrance Control, Process Control, etc.
ITEM | VALUE |
| ITEM | VALUE |
Dimensions (HxWxD) (mm) | 1500 x 540 x35 | Power supply (V/Hz) | 220 / 50 | |
Housing | Panel:ABS shell Base:Iron box | Current (mA) | 90 | |
Alarm | Light and buzzer | |||
Color | Light gray | Moving direction judgment | Accurate | |
Weight(1 panel) | 20kg | Operating temperature (℃) | -10 ~ +60 | |
storage temperature (℃) | -25 ~ +70 |
1. Self-intellectual property;FEATURES
1:Power splitter
2:High RF power reader CF-RH900
3:Buzzer
4:Controller board
5:Main/auxiliary antenna RF cable socket
6:Serial port IF1
7:Serial port IF2
8:Main/auxiliary antenna DC power cable socket
9:LED indicator
APPLICATION INFORMATION
Serial communication setting: 38400bps, E, 8, 1
Serial port IF1 and IF2 DB9 socket definition:
PIN | SYMBOL | COMMENT |
1 | NC | Reserved |
2 | TXD | RS232 data output (RS485 R-) |
3 | RXD | RS232 data input (RS485 R+) |
4 | NC | Reserved |
5 | GND | Ground |
6 | NC | Reserved |
7 | NC | Reserved |
8 | NC | Reserved |
9 | NC | Reserved |
Q1. Are you manufacturer?
Yes, we are 10 years professional RFID hardware manufacturer.
Q2. What is your mainly product?
Our products mainly include RFID reader, RFID tag, RFID module and antennas,
include 125KHz , 13.56MHz and 860-960MHz three frequency.
Q3. What is your advantage?
We are professional RFID hardware solution provider,
we have strong technical team can provide after sale technical support online,
also can provide customized service.
Q4. How to place order to Chafon?
You can place order to us through Alibaba trade assurance order online.
We also can accept payment by TT,Western Union or Paypal.
