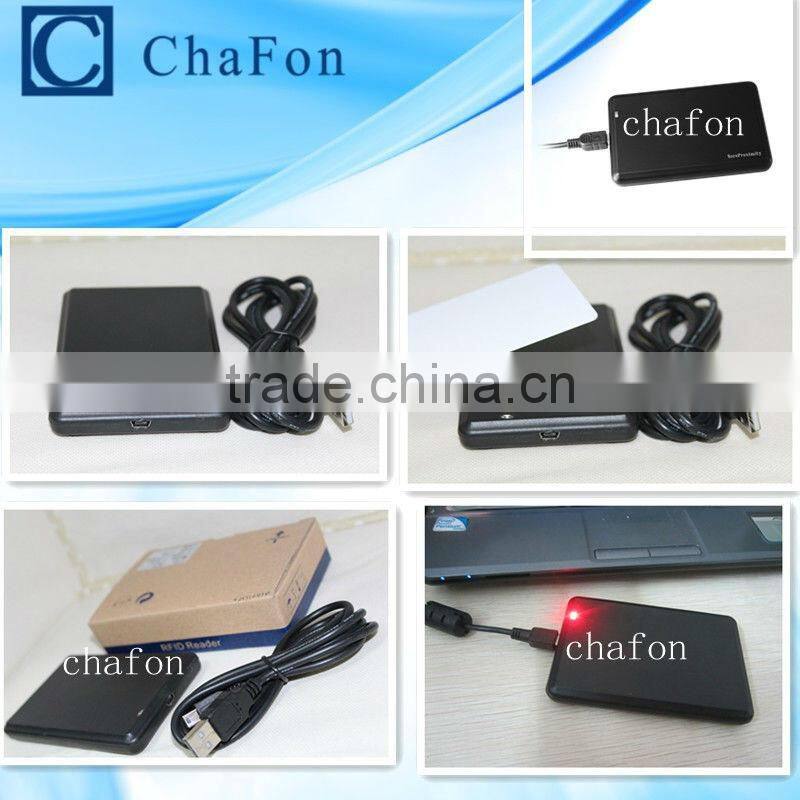

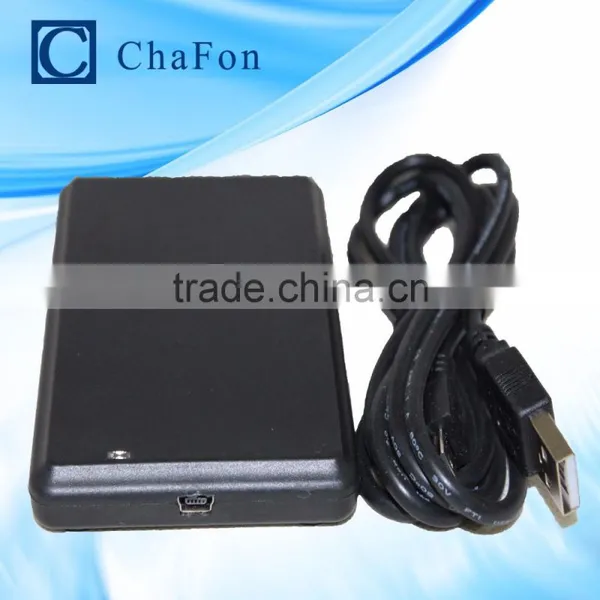

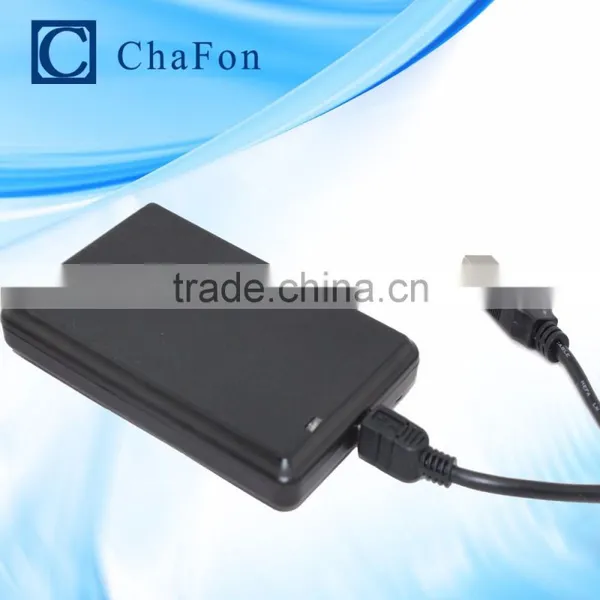

13.56mhz IC card reader Cheap RFID Tag Scanner
Product Description:
CF-RH310 It's a high performance, lower price 13.56MHz RFID reader, reader distance up to 10cm, widely used for RFID Radio Frequency Identification system and project, such as Automated parking management system, Personal identification, Access controller, Production Access control, etc
Product model explanation
Model | output Byte | output format | interface | surface color | support |
CF-RH311 | 4 | 8 digit Hex | U(USB)/R(RS232) | B(black)/W(white) | MF one |
CF-RH313 | 4 | 10 digit Dec | U(USB)/R(RS232) | B(black)/W(white) | MF one |
Parameter
Name | IC Reader |
Dimension | 104x68x10mm |
Reader colour | black |
Support | MF one S50,S70, I-Code2 |
Frequency | 13.56MHz |
Reader time | <0.5s |
Baud Rate | 9600 |
Power Supply | +5V DC |
Consumed Current | 70mA |
Operating Distance | 0~120mm |
Interface | USB/RS232 |
Status Indication | 1pcs LED;1pcd buzzer |
Service Temperature | -10°C ~ +70°C |
Store Temperature | -20°C ~ +80°C |
Instructions for use
1. reader connect the computer with USB cable
2. Open Notepad or a word document
3. The mouse in Notepad or WORD document clicking
4. put card on the top of reader.
5. Notepad or word documents will output of the IC card number
6. When Reading one card, the reader is prompted to voice, LED lights with red into the green
Other support
1.When you buy our reader,we can provide free sample card to you for testing.
2.It come with two different output format for option,they are 8 digit Hex and 10 digit Dec.
3.About the specfici datasheet,please come to below link to check:
