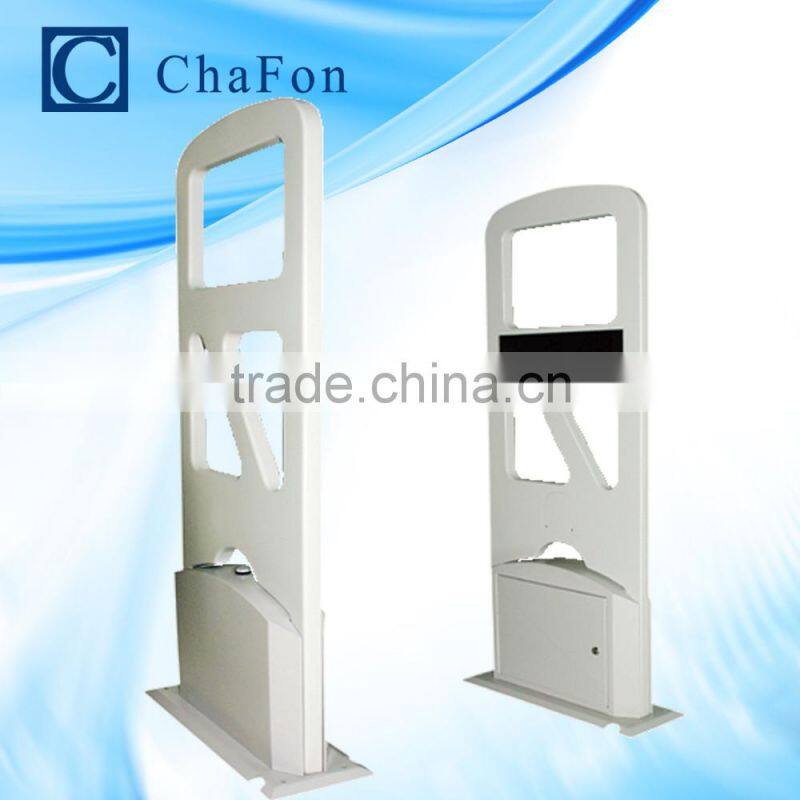

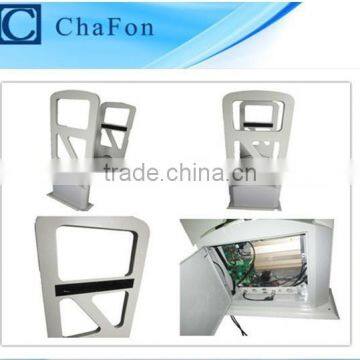

library rfid gate reader rfid reader and antenna for barrier
General description
HF Gate Device “CF-CH900” are designed for high performance channel management applications. The series support fast tag anti-collision and read/write operations (include EAS function of tag). Equipped with main/auxiliary channel antenna, 4 line infrared motion detection sensor, control board and standard RS232, RS485 serial communication ports and RJ45 (TCP/IP) network port, the series are top choice for open mass flow RFID applications, such as: Conference Attendance, Access Control, Library Entrance Control.
Features
1.Self-intellectual property;
2.Support ISO/IEC15693, EPC, UID, HF EPC protocol tags;
3.Advanced anti-collision algorithm, high identification rate;
4.Built-in TX/RX antenna and channel width up to 120cm*;
5.Built-in 4 line infrared motion detection sensor;
6.Low power dissipation design with RF power over 4W;
7.The storage capacity of gate is 30000 messages;
8.Configuration various alarm modes;
9.Support tag/label EAS function;
10.Support RS232, RS485 and RJ45 (TCP/IP) network interface;
11.Support plug-in camera, large screen display/ television to realize control and management in a more intuitive way.
*Effective distance depends on protocol, tag and working environment.

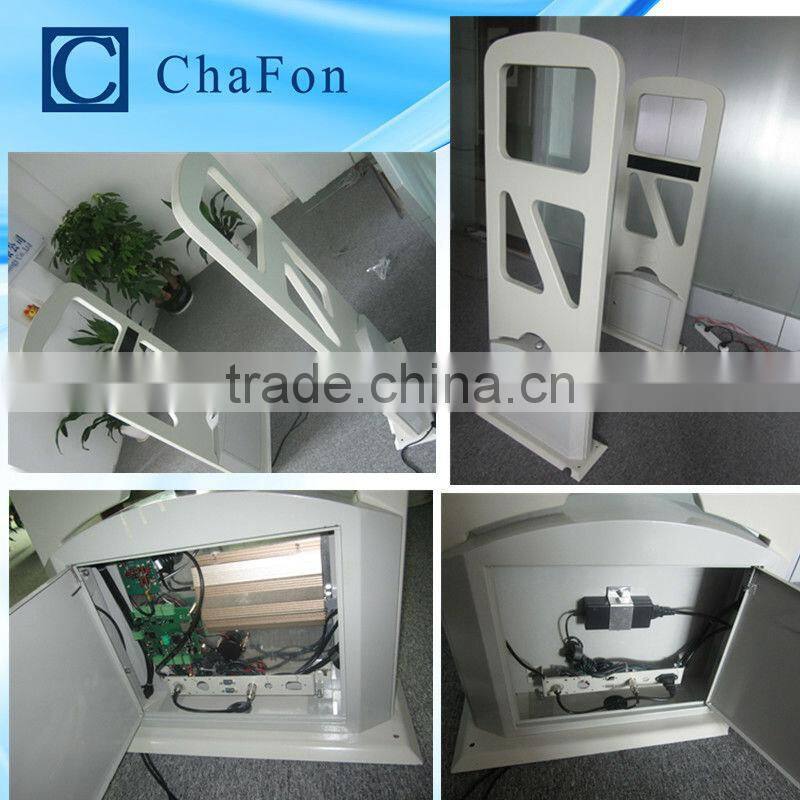

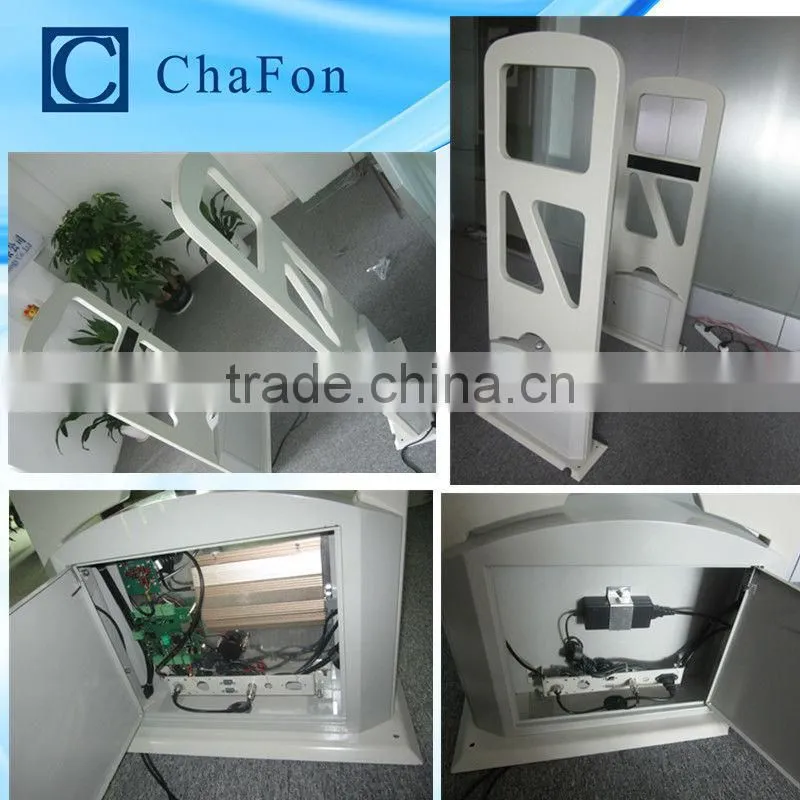

Components
CF-RH900comprises main antenna, auxiliary antenna. Main antenna base box is integrated with high RF power tag reader, power splitter, 4 line infrared receiver parts, controller board and interface board. Auxiliary antenna base box is integrated with power source, 4 line infrared transmitter parts and interface board.
Other accessories include AC power cable, RF cable connecting main/auxiliary antenna, DC power cable connecting main/auxiliary antenna and RS232 communication cable.
Wiring Information
1:Power splitter
2:High RF power reader CF-RH900
3:Buzzer
4:Controller board
5:Main/auxiliary antenna RF cable socket
6:Serial port IF1
7:Serial port IF2
8:Main/auxiliary antenna DC power cable socket
9:LED indicator
* Components location may be slightly adjusted
Application
Serial communication setting: 38400bps, E, 8, 1

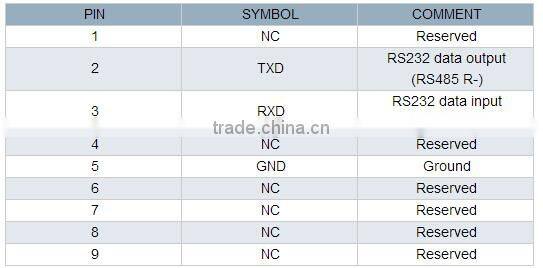

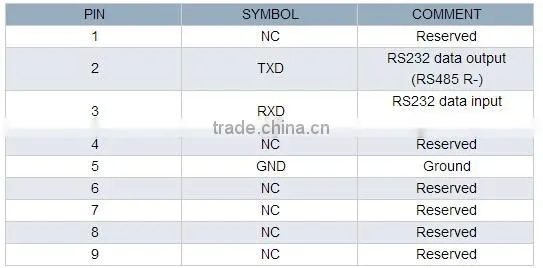

Serial port IF1 and IF2 DB9 socket definition:
Please refer to CF-RH900 user’s manual for communication protocol details.
Remark:
1. Specifications are subject to change, please pay attention to our latest one.
2. Shenzhen Chafon Technology Co., Ltd. reserves the right to the final interpretation of the above terms.
