Product Details
Place of Origin: | Guangdong, China | Brand Name: | Chafon | Model Number: | CF-RH9041 |
Product Description

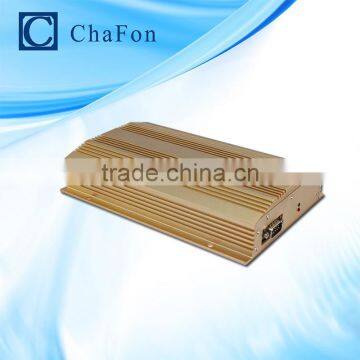

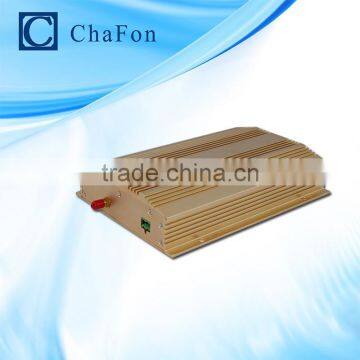

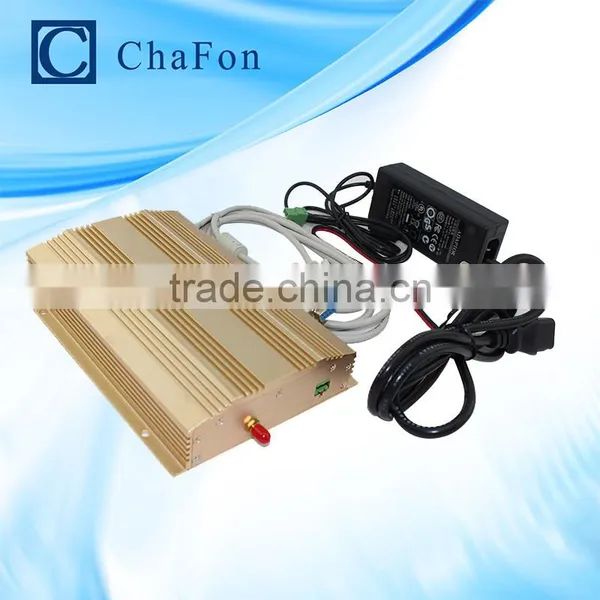

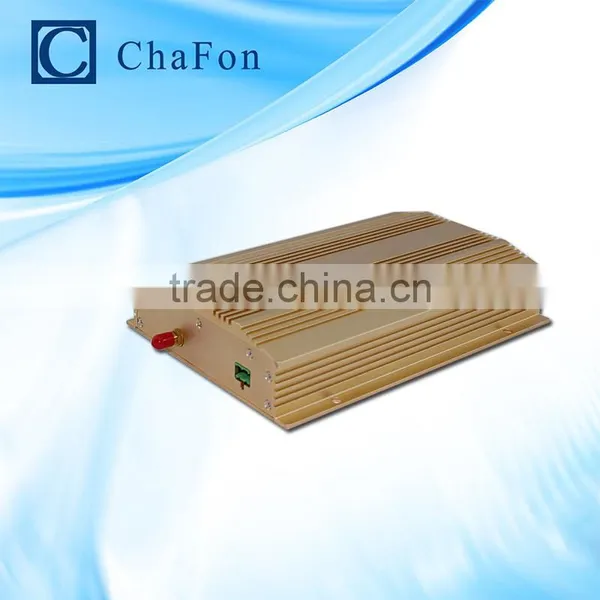

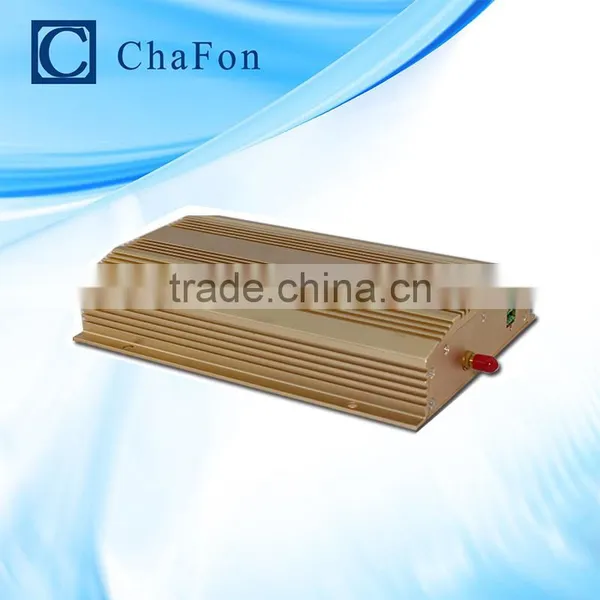

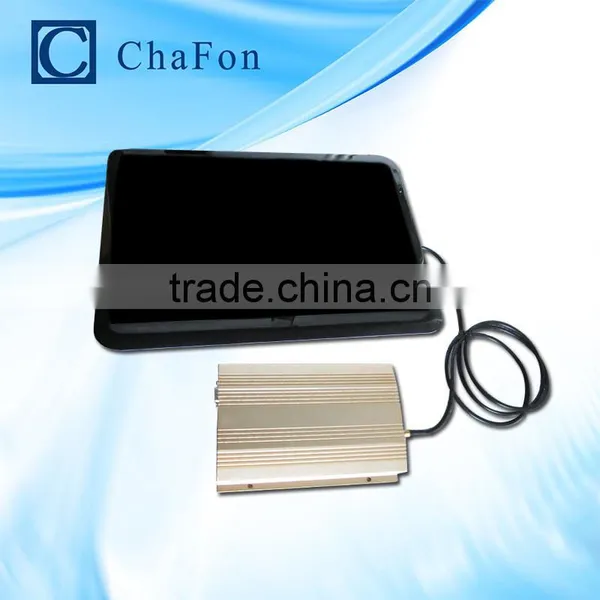

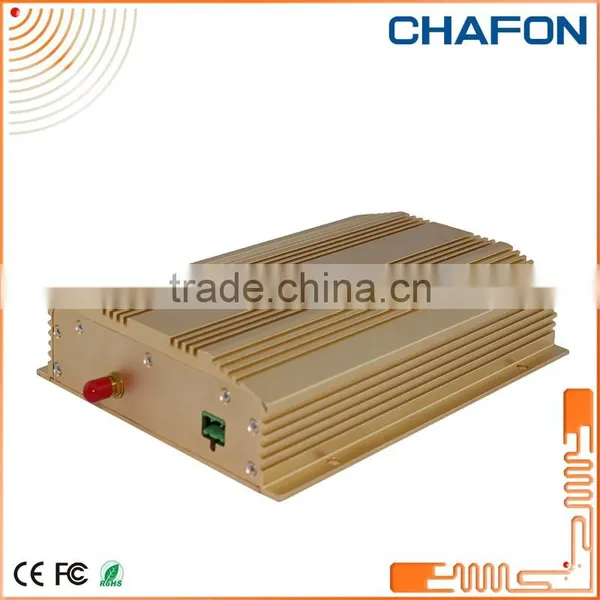

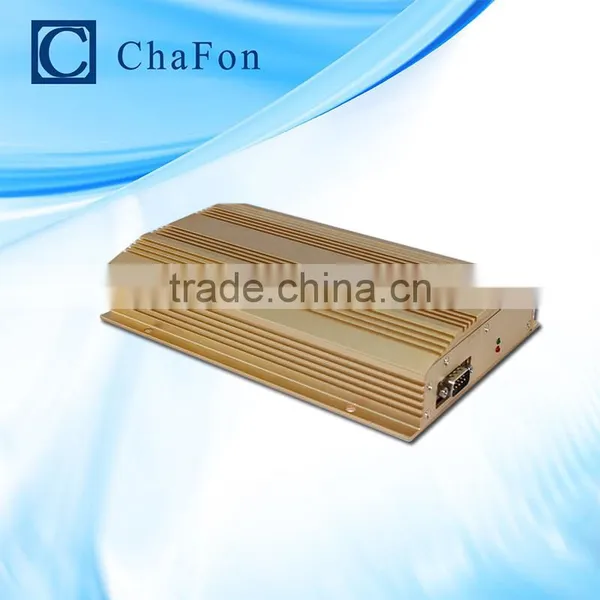

4W ISO15693 rfid 13.56mhz long range reader
Generally Description
CF-RH9041 is a high performance ISO15693 protocol HF tag reader. It is designed upon fully self-intellectual property. Based on proprietory efficient anticollision algorithm, it supports fast tag read/write operation with high identification rate.It can be widely applied in many RFID application systems such as logistics, personnel identification, conference attendance system, access control, anti-counterfeit and industrial production process control system.
FEATURES
l Self-intellectual property;
l Support mainstream ISO15693 protocol tag;
l RF output power over 4W;
l Advanced anti-collision algorithm. High identification rate with tag processing speed 30~50pcs/s);
l SMA RF interface to support standard 50ohm RFID antenna. Effective distance up to 90cm;
l Support TRANSPARENT COMMAND;
l Support optional DPPM and WPPM;
l Support multiple readers network;
l Low power dissipation;
l Provide DLL and demonstration software to facilitate development
1.Power Supply Socket J1
No. | SYMBOL | COMMENT |
J1-1 | PWR | +11.6~15V |
J1-2 | GND | Ground |
2.SMA Antenna Socket J2
3.Communication Socket J3
Standard DB9 Female Socket to be directly connected to the host.
No. | SYMBOL | COMMENT |
1 | G_IN1 | General TTL level input with internal 20kΩ pull-up resistor to +5V |
2 | TXD(R-) | RS232 serial data output or RS485 R- |
3 | RXD(R+) | RS232 serial data input or RS485 R+ |
4 | G_OUT1 | General TTL level output with drive/sink 5mA current (max.) |
5 | GND | Ground |
6 | G_OUT2 | General TTL level output with drive/sink 5mA current (max.) |
7 | COMMON | Common contact of built-in relay |
8 | N_C | Normally close contact of built-in relay |
9 | N_O | Normally open contact of built-in relay |
CHARACTERISTICS
l Absolute Maximum Rating
ITEM | SYMBOL | VALUE | UNIT |
Power Supply | VCC | 16 | V |
G_IN1,G_OUT1,G_OUT2 I/O Voltage | VIO | 7 | V |
Operating Temp. | TOPR | -25~+60 | °C |
Storage Temp. | TSTR | -25~+80 | °C |
l Electrical and Mechanical Specification
Under TA=25°C,VCC=+12.6V unless specified
ITEM | SYMBOL | MIN | TYP | MAX | UNIT | |
Power Supply | VCC | 11.6 | 12.6 | 15 | V | |
Current Dissipation | IC |
| 0.8 | 1.2 | A | |
Frequency | FREQ |
| 13.56 |
| MHz | |
Effective Distance* | DIS | 0 | 900 | 1000 | mm | |
G_IN1 Input Level | VIH VIL | 3.5 | 2.6 2.3 |
1.55 | V V | |
G_OUT1, G_OUT2 Output Current | ±IO |
|
| 5 | mA | |
G_OUT1,G_OUT2 Output Level | VOH(IO=-5mA) VOL(IO=5mA) | 3.95 |
|
0.73 | V
| |
Relay | Rated Load | CLOAD |
|
| 0.5A at 125VAC 1A at 24VDC |
|
Operating Voltage |
|
|
| 125VAC 60VDC | V | |
Operating Current |
|
|
| 1 | A | |
Size | L x W x H |
| 215 x 138 x 39 |
| mm |
Other support:
1.Our eader come with completed English SDK,demo software,user manual and source code,and these documents will help you develop the software for your application.
2.When you buy our reader,we can provide free sample card or tag to you for testng.
3.Much more detailed products information,please come to below link to check:
1. Are you manufacturer?
2. What is your mainly products?
Our products mainly include RFID reader, RFID tag, RFID module and antennas,
3. What is your advantage?
We are professional RFID hardware solution provider,
we have strong technical team can provide after sale technical support online,
also can provide customized service.
4. How to place order to Chafon?
You can place order to us through Alibaba trade assurance order online.
We also can accept payment by TT,Western Union or Paypal.
