Help Centerhf U-key Mini Rfid Reader Can Support ISO14443A/ISO15693 Protocol to Read and Write With Free Card for Testing
Related Products
-
13.56mhz Bluetooth Rfid Reader Can Work With Android Tablet and Mobile Phone With Battery InsideNegotiableMOQ: 1 Piece -
13.56mhz Usb 3.0 Internal Card Reader(can Support Linux,Window OS,provide SDK,demo Software,user Manual,OEM Service)NegotiableMOQ: 1 Piece
-
Rfid Card Reader and Writer(support Linux,Windows OS,provide SDK,demo Software,user Manual,provide OEM Service)NegotiableMOQ: 1 Piece
-
Bluetooth Rfid Reader Writer 13.56 Mhz (can Work Under Android OS,connect With Tablet,phone via Bluetooth)NegotiableMOQ: 1 Unit
-
13.56 Mhz Reader Usb Interface(support Linux,Windows OS) Provide Complete SDK,demo Software,source Code)NegotiableMOQ: 1 Piece
Specifications
1, mini rfid reader2.13.56MHz
3.ISO14443A/ISO15693
4.USB interface
5.Size:74X19X6mm
hf u-key mini rfid reader can support ISO14443A/ISO15693 protocol to read and write with free card for testing
Product description
CF-RH360 series desktop readers are smart modules without touching based on international
standard agreement ISO14443A/B,ISO15693
CF-RH360 are equipped with high capability chip, processor, security and electric monitor. The
reader can communicate with PC by means of interface.
CF-RH360 are of high capability, anti-jamming, small size and good quality, which brings more
convenience.
Product mode explanation
Model | standard | interface | color |
CF-RH361 | IS014443A | U(USB) | W(white) |
CF-RH362 | ISO15693 | U(USB) | W(white) |
CF-RH363 | ISO/IEC14443A/B,ISO15693 | U(USB) | W(white) |
Parameter
Name | HF Reader&writer |
Dimension | 74X19X6mm |
Standard | ISO 14443A/B/ISO15693 |
Support | MF One S70; MF One UltraLight; MF One S50,I-code2 |
Frequency | 13.56MHz |
speed | 106kbit/s |
Baud Rate | 9600 bit/s |
Power Supply | +5V DC |
Consumed Current | < 80Ma |
Operating Distance | 50--70mm |
Interface | USB |
Status Indication | 1pcLED |
Service Temperature | -10°C ~ +70°C |
Store Temperature | -20°C ~ +80°C |
Product application
Widely used in access control, attendance, conference attendance, medical insurance, hotels
highways, petrol stations, parking, public transportation, such as toll collection system.
Other support
1.This reader can support ISO14443A/B,ISO15693 protocol card read and write function,it can work under Linux,Windows operation system,you can directly connect computer through USB interface.
2.we can provide complete SDK,demo software,source code and user manual to help you do application software developing.
3.We can also make it into 125khz (support EM card read-only) and 13.56mhz (MF card read-only),besides,we can also provide OEM service.
4.More exact product information, please come to below link to check:
/productdetails.aspx?pid=368

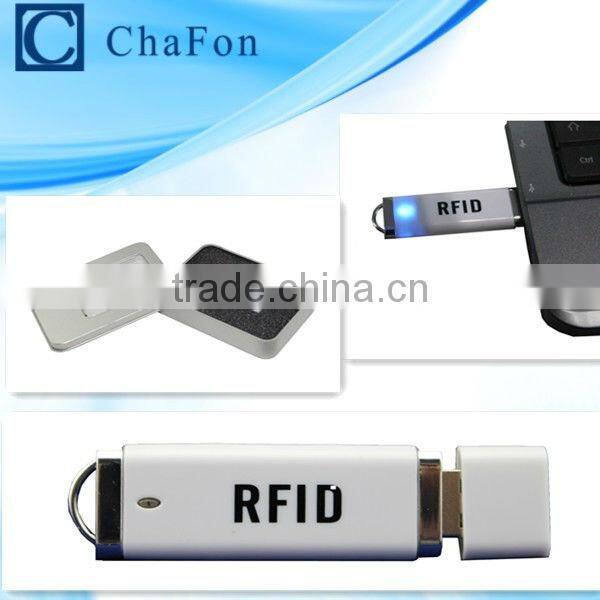

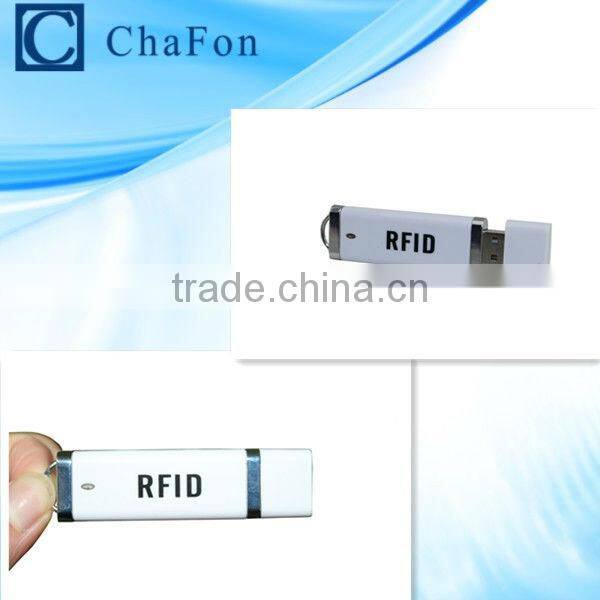

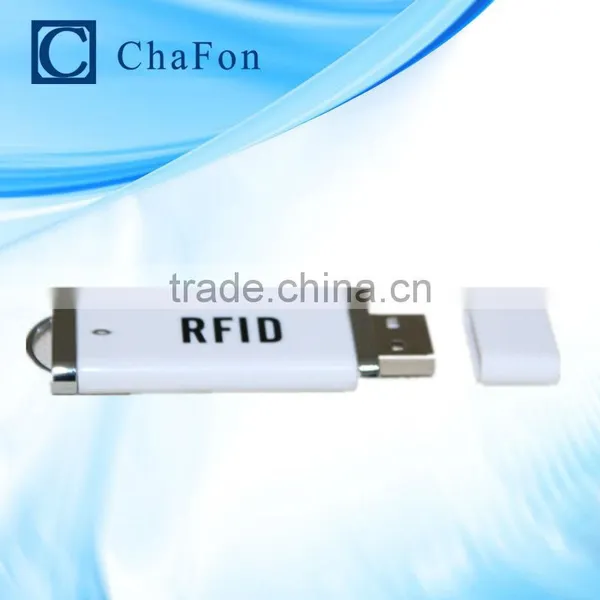

Product picture
