13.56mhz bluetooth rfid reader work with android tablet and mobile phone
with battery inside
General description
CF-RH350 reader is used for reading different electronic tag and card, and sending the data to PDA, PC through Bluetooth wireless technology. It can detect 125 KHz, 134.2 KHz, 13.56 MHz ,
UHF card.support ISO14443A/B / ISO15693 or ISO18000-6C protocol standard read and write
function the read range can up to 5-10cm. Applied to device inspecition,vehicle identification, bill anti-fake and logistics management
Parameter
Index | Description |
Frequency | 13.56Mhz |
Protocol support | ISO14443A/ISO15693 |
Read mode | Support auto-running,interative and trigger-activating work mode |
Identification time | <8ms |
Read range | About 5~10cm |
Communication Interface | Wireless Bluetooth; Mini USB |
Bluetooth Transmission Distance | 10-15m |
Working voltage | DC3.7-4.2V (built-in rechargeable lithium battery) |
Battery capacity | 1700 mAh |
Charging voltage | 110-240V AC,50/60Hz |
power consumption | ≤0.8W |
Size | 83*52*25.8 mm |
weight | 98g |
Work status | Buzzer,Indicator |
Operating Temperature | -20°C~+70°C |
Storage Temperature | -40°C~+85°C |
Attachment | Charger,Data cables |
Application
1.Device inspection: it is use to electrical, water supplier, railway, and coal mine.
2.Vehicle identification: road charge, parking management.
3.Bill Anti-fake: customs, travel place, field
4.Logistics management
Other Support
1.We can also make it support 125khz,134.2khz,uhf card,you can choose the suitable frequency.it can work under android operate system,and connect with mobile,tablet PC through bluetooth.
2.This reader comes with complete English SDK,demo software,source code and user manual,it can help you do application software developing.
3.What's more,when you buy this reader,we will provide you some sample cards or different tags to help you do testing.
4.More Information about this product,please visit follow link:
/productdetails.aspx?pid=377

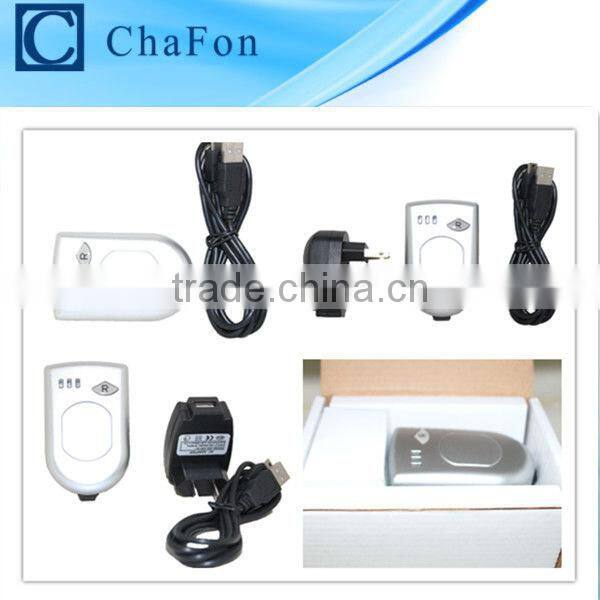

Product picture
