Specifications
rfid card reader and writer1,13.56mhz
2,Protocol:ISO14443A/B,ISO15693
3,Interface:USB
4,support Linux,Windows
rfid card reader and writer
( support Linux,Windows,with USB interface,support ISO14443A/B,
ISO15693,provide SDK,demo software,user manual,provide OEM service)
Product description
CF-RH360 series desktop readers are smart modules without touching based on international
standard agreement ISO14443A/B,ISO15693
CF-RH360 are equipped with high capability chip, processor, security and electric monitor. The
reader can communicate with PC by means of interface.
CF-RH360 are of high capability, anti-jamming, small size and good quality, which brings more
convenience.
Product mode explanation
Model | standard | interface | color |
CF-RH361 | IS014443A | U(USB) | W(white) |
CF-RH362 | ISO15693 | U(USB) | W(white) |
CF-RH363 | ISO/IEC14443A/B,ISO15693 | U(USB) | W(white) |
Capability specifications
Name | HF Reader& writer |
Dimension | 74X19X6mm |
Standard | ISO 14443A/B/ISO15693 |
Support | M S70; M UltraLight;M S50,I-code2 |
Frequency | 13.56MHz |
speed | 106kbit/s |
Baud Rate | 9600 bit/s |
Power Supply | +5V DC |
Consumed Current | < 80Ma |
Operating Distance | 50--70mm |
Interface | USB |
Status Indication | 1pc LED |
Service Temperature | -10°C ~ +70°C |
Store Temperature | -20°C ~ +80°C |
This reader can support ISO14443A/B,ISO15693 protocol card read and write function,it can work under Linux,Windows operation system,you can directly connect computer through USB interface.we can provide complete SDK,demo software,source code and user manual to help you do application software developing.
We can also make it into 125khz (support EM card read-only) and 13.56mhz (MF card read-only),besides,we can also provide OEM service.
Product application
Widely used in access control, attendance, conference attendance, medical insurance, hotels, highways,
petrol stations, parking, public transportation, such as toll collection system.

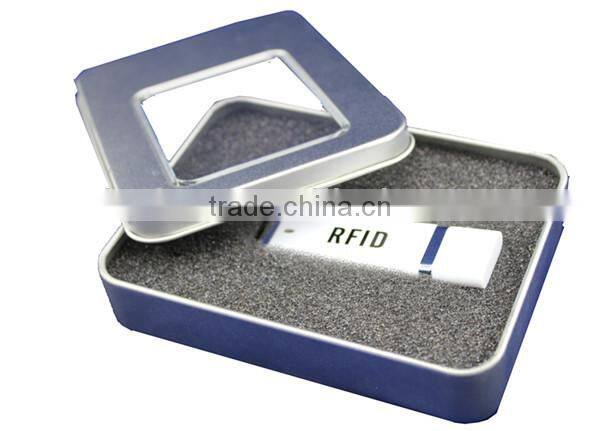

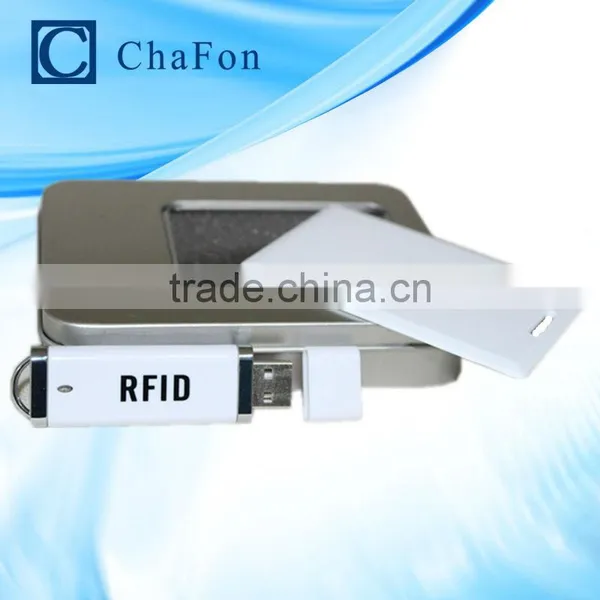

Product pictures

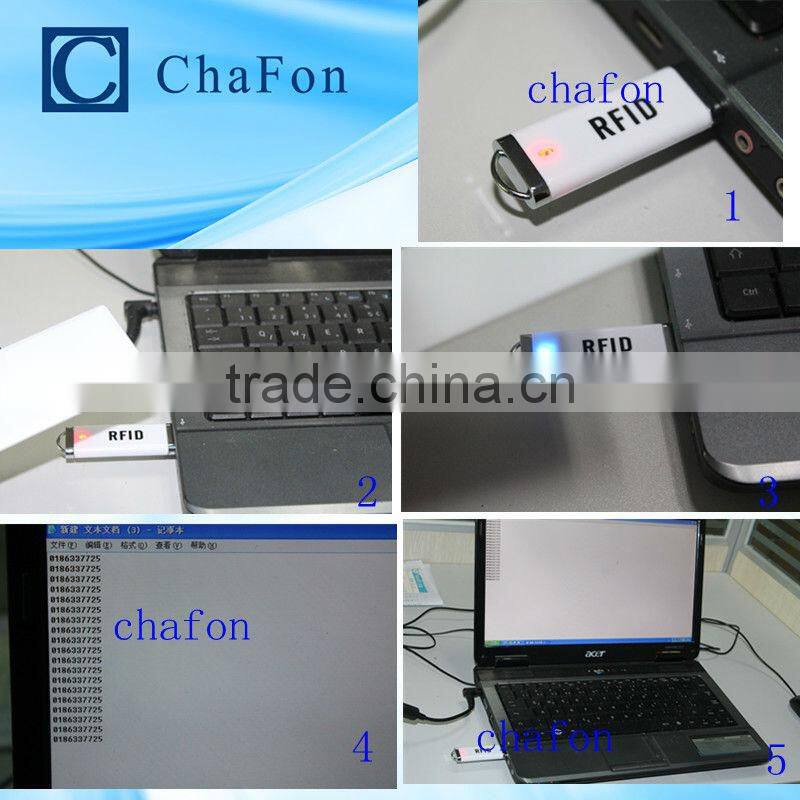

Operation pictures
