desktop type hf rfid reader ethernet can support ISO14443A/ISO15693 protocol with SDK,demo software,user manual,source code
Product Description
CF-RH390 is a high performance Multi-Protocol HF tag reader supporting ISO/IEC15693, ISO14443TypeA/TypeB. It is designed upon fully self-intellectual property and supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as personnel identification, conference attendance system, access control, anti-counterfeit and industrial production process control system.
Product mode explanation
Model |
Standard |
interface |
CF-RH391 |
IS014443A |
R(RS232)/TCP/IP |
CF-RH392 |
IS014443A/B |
R(RS232)/TCP/IP |
CF-RH393 |
ISO15693 |
R(RS232)/TCP/IP |
CF-RH394 |
ISO/IEC14443A/B,ISO15693 |
R(RS232)/TCP/IP |
Features
1.Self-intellectual property;
2.Support mainstream ISO/IEC15693, ISO14443TypeA/TypeB protocol tag (TI, PHILIPS, ST, INFINEON, FUJITSU, EM);
3.Advanced tag processing algorithm, high identification rate;
4.Built-in TX/RX antenna with effective distance up to 100mm *;
5.Low power dissipation design with single DC+12V power source needed;
6.Support TCP/IP and RS232 interface and provide DLL and demonstration software to 7.facilitate development;
8.Provide DLL and demonstration software to facilitate development.
Parameter
ITEM |
SYMBOL |
VALUE |
UNIT |
Power Supply |
VCC |
12 |
V |
Operating Temp. |
TOPR |
-10~+60 |
°C |
Storage Temp. |
TSTR |
-25~+80 |
°C |
Electrical and Mechanical Specification
Under TA=25°C,VCC=+12V unless specified
ITEM |
SYMBOL |
MIN |
TYP |
MAX |
UNIT |
Power Supply |
VCC |
11.5 |
12 |
15 |
V |
Current Dissipation |
IC |
|
150 |
200 |
mA |
Frequency |
FREQ |
|
13.56 |
|
MHz |
Effective Distance * |
DIS |
0 |
80 |
100 |
mm |
Other Support
1.The reader come with completed English SDK, demo software, user manual and source code, and these documents will help you develop the software for your application.
2.When you buy our reader, we can provide free sample card to you for testing.
3.More information about this reader, please come check below link:

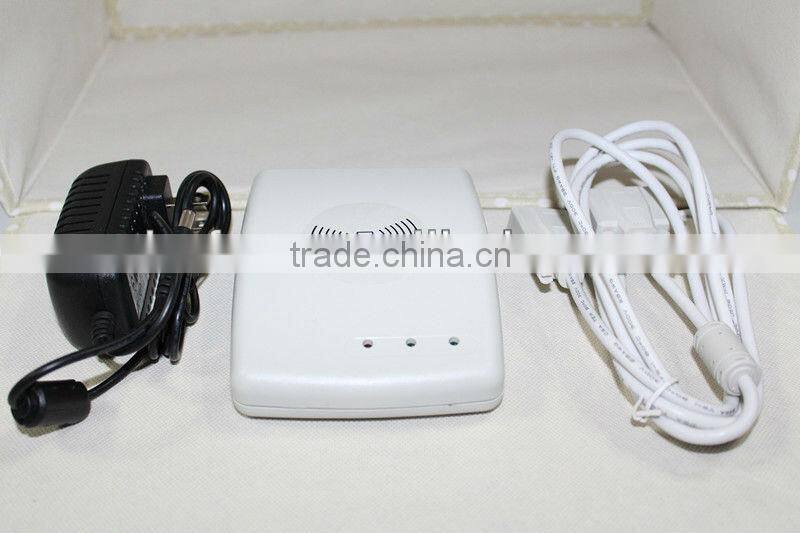

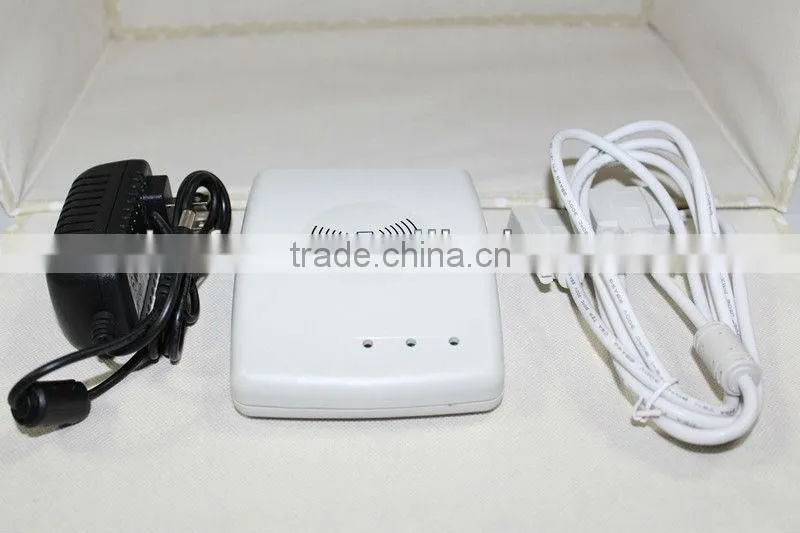

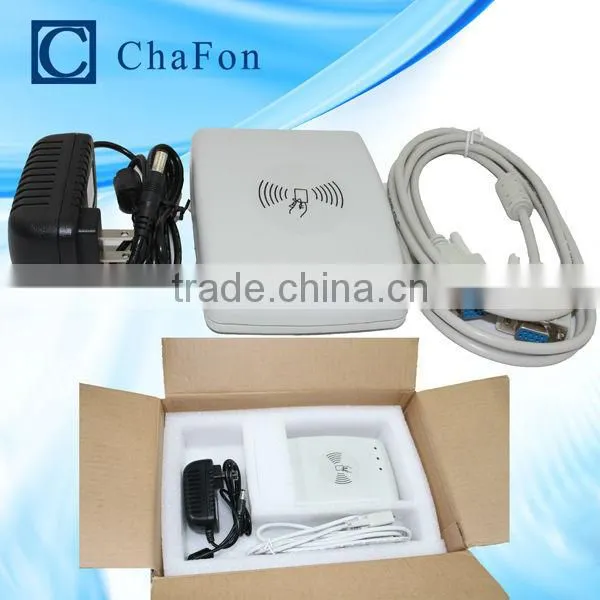

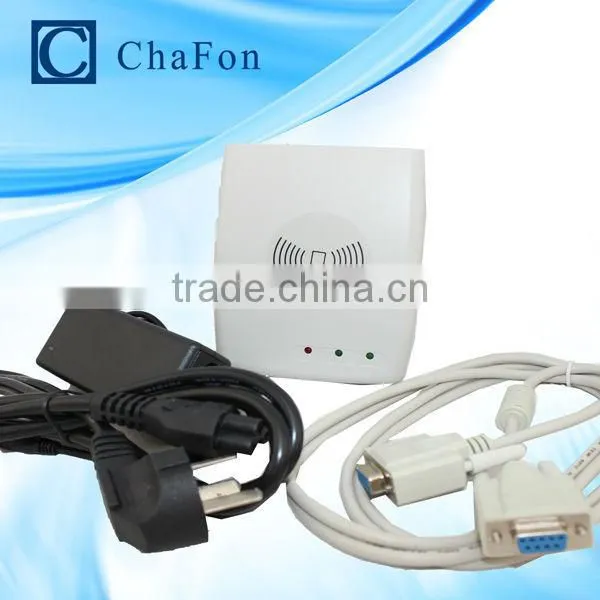

Product picture
