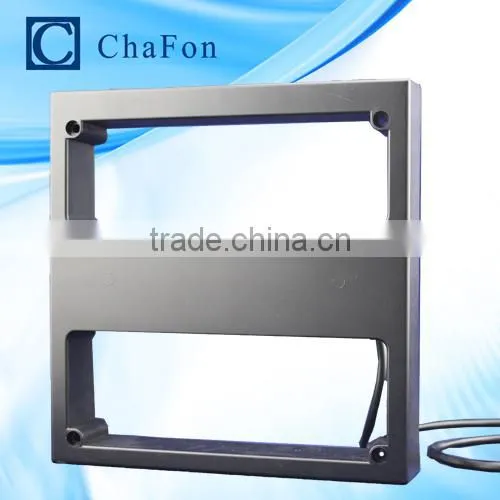

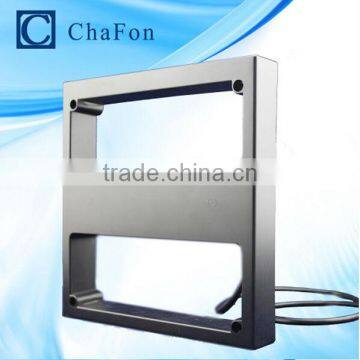

125khz rfid em reader wiegand26 LF long range reader
Product Description:
CF-RL150 series It's a high performance, lower price long range 125 KHZ RFID reader, reader distance up to 90cm, widely used for RFID Radio Frequency Identification system and project, such as Automated parking management system, Personal identification, Access controller, Production Access control, etc.
Product model explanation
Model |
output Byte |
Interface |
support |
CF-RL151 |
3 |
Weigand 26 |
EM and compatible card |
| CF-RL152 | 4 |
RS485 |
EM and compatible card |
CF-RL153 |
4 |
RS232 |
EM and compatible card |
Capability specifications
1.Working signal format: Weigand 26, ABA, RS232
2.Reader Card speed: <0. 2/S
3.Sensing distance: 0-90CM *
4.Read card frequency: 125KHz
5.Temperature Operating: -25o C-75o C
6.Operating Humidity: 10-90%
7.Inside Antenna: Have
8.Embedded speakers: Buzzer
9.Working voltage: DC 12V
10.Working Current: 70mA
11.Networking way: Wiegand 26bits/ABA standard format output
12.Read range: 70~90cm
13.Device color: Black
14.Size: (L)235mm, (W)240mm, (H)35mm
15.Packing Box Size: 28. 5*26. 5*6. 5 inch
16.Unit Device Weight: 1. 5kg; Unit Packing Box Weight: 1. 8kg.
Standard Accessories:
1.Long ranger reader machine 1pc
2.Certified sheet 1
3.Warranty Card 1
4.Instruction Sheet and connect sheet 1
5.Testing cards
Packing Box 1,
Fix Screwdriver 4pcs
