Micro Usb id Smart Card Chip Reader USB OTG Interface RFID Android Reader

  CF-RL300 is a portable 125khz reader only, can connect with Android device via mini USB interface. Plug&play, don’t need additional power supply.

    Exquisite and small design not only simple and convenient in using, but also reading accurately and reliable.

    It not only can be used on Android system mobile phone and tablet, can be also used in pc via OTG Converter. Will output ID number in output software (such as notepad, WORD, EXCEL, etc editor).

Parameter:

Frequency:125KHZ

Support:EM4200/TK4100

Operate system:Android(testing mobile: Samsung,Sony,VIVO,MIUI)

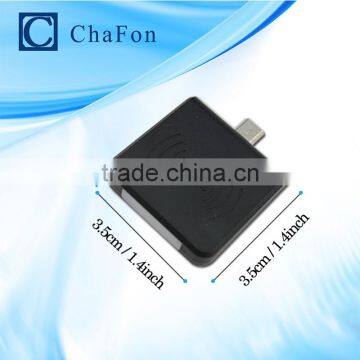

Product size(interface not included): 35mm*35mm*7mm

Package size: 71mm×71mm×19mm

Read range : 0-30MM(front/back side reading);0-10MM(flank reading)

Reader time: <100MS

Read speed: 0.5S/time

Read interval: 0.3S

Interface: mini USB

Power supply: USB

Weight: 20G(NW)/50G(GW)

Service Temperature:(-20℃~85℃)

Humidity:(5%~95%)

Power supply: 5V

Consumed Current:100mA

Status Indication:2 color LED(blue lighting or green lighting)

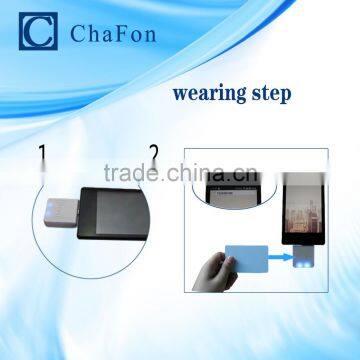

Using method:

1. reader connect with Android mobile phone through Micro USB interface,LED co lour in blue ,it means reader is waiting for reading cards.

2. Open output software(such as memorandum/Note editor) in mobile/tablet, put card close to reader,will output  the ID card number in output software, and enter a new line.
