125khz Rfid Reader Keyboard Emulation With Different Output Format for Option

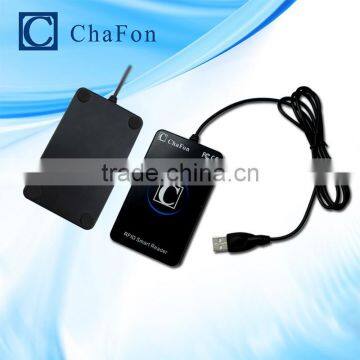

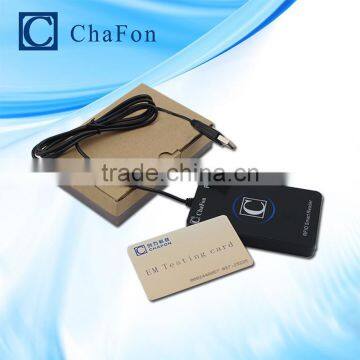

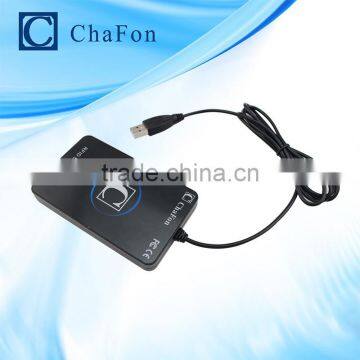

Product name:125KHz RFID Multiple output format card reader

Model number:CF-RS103

Product description:

Reader connect with PC or tablet through USB interface, virtual as USB emulation keyboard device, read card and output card number automatic, default output 10 digit Dec, can control output format through software.

no programming required

no software required

just plug and play

Output format:

ID card common output format:10 Hex,8H--10D,6H--8D,2H + 4H,8H--10D The blank space 2H + 4H

Capability specifications

Description of software set output format:

1.Connect reader to PC

2.Open DEMO.exe

click "Read",  the reader default output show as below:

3.All kinds output format set operation:

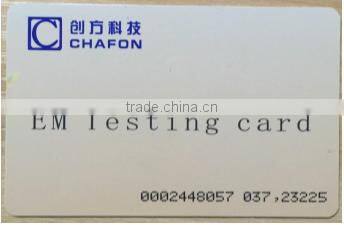

Description:This is one ordinary ID card, card number is 0002448057,hex  physical card number:00255ab9

• option:10 no. in D (four byte)+add "Enter", Click "Set"

ID card number 4 byte,10 digit decimal output. like as 0002448057

• option:10 no. in D reverse + add "Enter", Click "Set"

ID card number 4 byte,8 digit hexadecimal output. like as 0002448057 convert 00255ab9, convert b95a2500, convert 3109692672

• option:8 no. in HEX +add "Enter", Click "Set"

ID card number 4 byte,8 digit hexadecimal output. like as 0002448057 convert 00255ab9

option:8 no. in HEX reverse +add "Enter", Click "Set"

ID card number 4 byte,8 digit hexadecimal inverted output. like as 0002448057 convert 00255ab9, convert b95a2500

• option:8 no. in D (last 3 bytes) +add "Enter", Click "Set"

ID card number 3 byte,8 digit decimal output. like as 0002448057 convert 00255ab9, convert 255ab9, convert 02448057

• option:00 + 8 no. in D (last 3 bytes) +add "Enter", Click "Set"

ID card number 3 bytes, plus 00 in front,8 digit decimal output: like as 0002448057 convert 00255ab9, convert 255ab9, convert 02448057, convert 00+02448057

• option:8 no. in D (last 4 bytes) +add "Enter", Click "Set"

ID card 4 byte,convert into decimal, output rear 8 digit

• option:5 no. in D +add "Enter", Click "Set"

ID card number 2 byte,convert into decimal output. like as 0002448057 convert 00255ab9, convert 5ab9, convert 23225

• option:18 no. in D +add "Enter", Click "Set"

ID card number the 18 digital was sprayed on card surface. like as 000244805703723225

• option:13 no. in D :This function isinvalid

• option:10 no. in HEX +add "Enter", Click "Set"

ID card number 5byte,10 digit Hexadecimal output

• option:2H4D + 2H4D+add "Enter", Click "Set"

ID card number 1,2 byte convert into 5 digit decimal + ID 3,4 byte convert into 5 digit decimal output together. like as 0002448057 convert 00255ab9, 0025 convert 00037+5ab9 convert 23225

• option:8 no. in D (last 4 bytes) +add "Enter", Click "Set"

ID card number 2H + 4H 8 digital of 18 digital on ID card surface. like as 03723225

• option:add , in middle +add "Enter", Click "Set"

ID card number add “,”in middle output. like as 037,23225

• option:add ; +add "Enter", Click "Set"

ID card number Plus” ;” in front output

• option:add ? +add "Enter", Click "Set"

ID card number plus “? “on the behind output

• option:add “Enter” +add "Enter", Click "Set"

ID card number output card number then return line feed

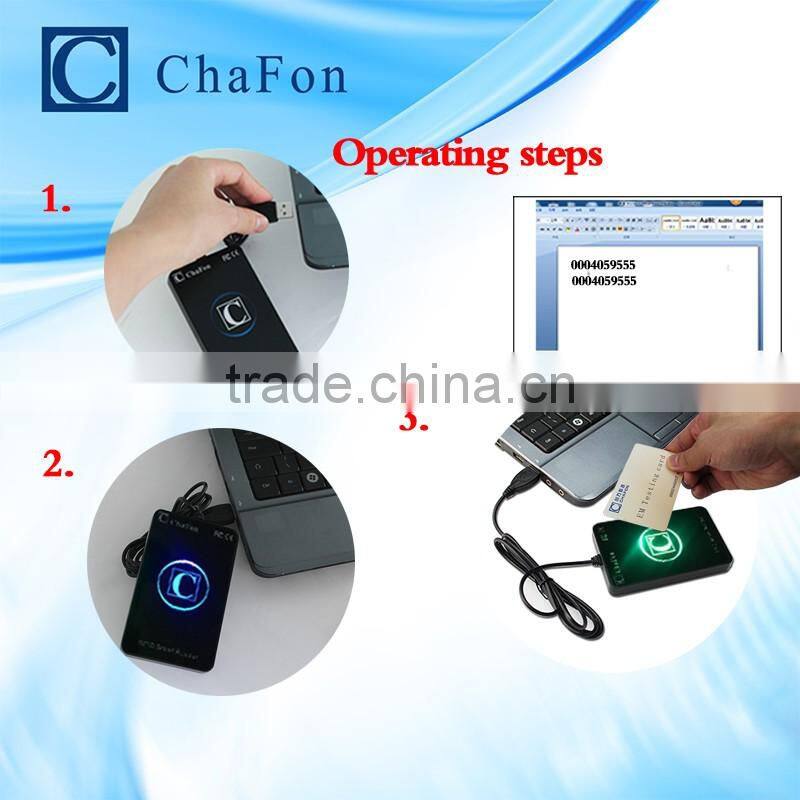

Instructions for use:

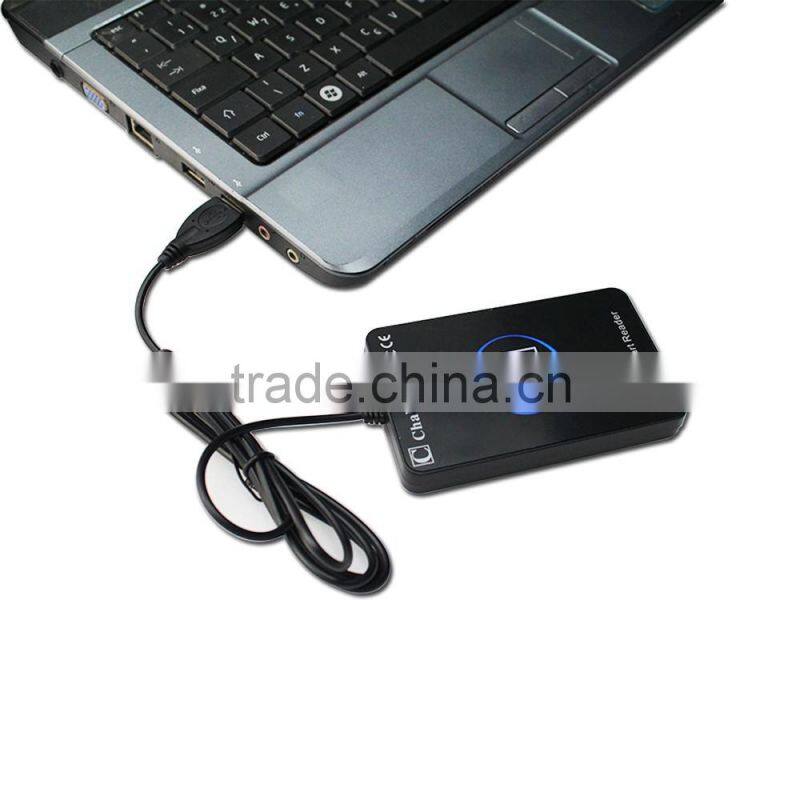

1. Connect with computer through USB interface directly

2. Open Notepad or a word document

3. The mouse in Notepad or WORD document clicking

4. Put card on the top of reader.

5. Notepad or word documents will output of the ID card number

6. When Reading one card, LED lights with red into the green.

7. Can input keyboard number keys inside
